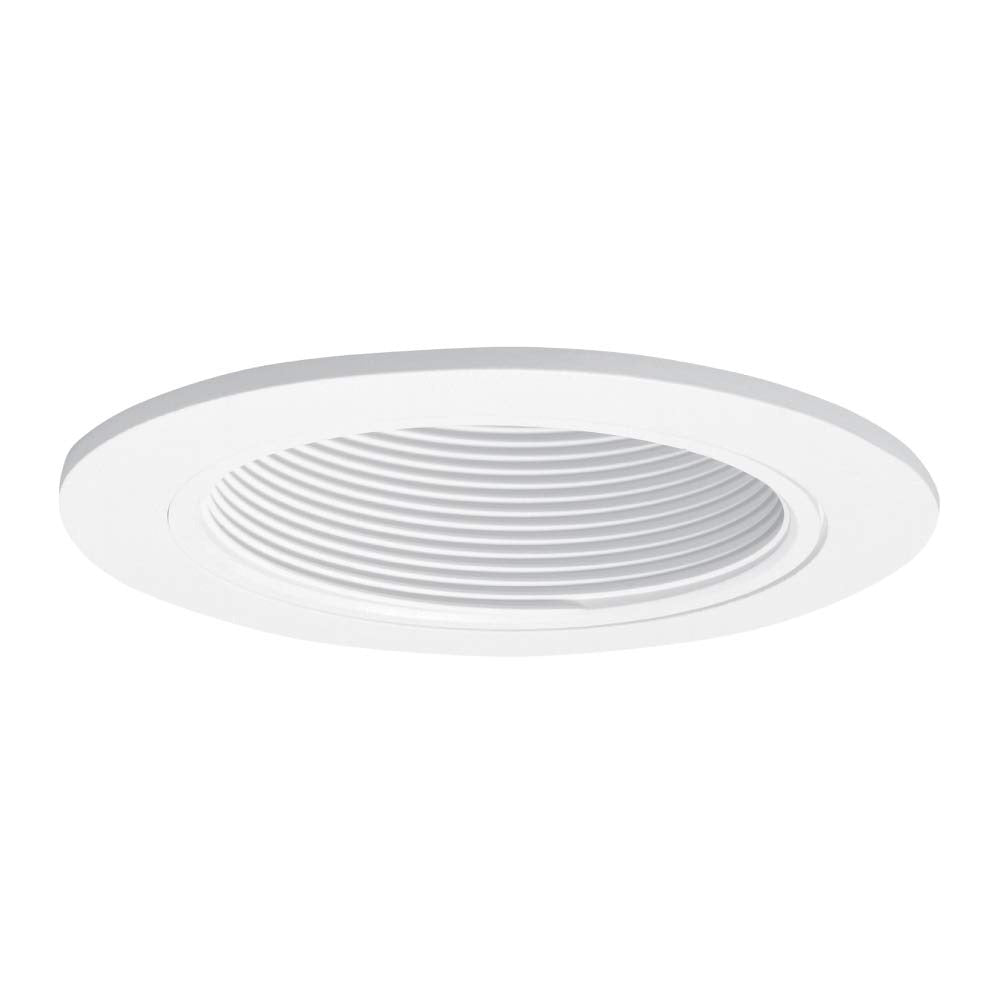

Cooper Bussmann 993W 4 Inch Recessed Baffle Trim White

Product Description

The COOPER BUSSMANN 993W is a 4-inch Coilex baffle trim designed for 120-volt line-voltage recessed lighting housings in the H99 family. The Coilex construction uses a screw-type thread molded directly into the baffle, which reduces stray light more effectively than a standard step-type thread. The die-cast trim ring provides a finished look while three cat's-paw springs lock the trim securely into the housing without additional fasteners. This trim is installed by licensed electricians and qualified lighting contractors in residential recessed lighting applications.

The 993W fits 4-inch H99 family recessed housings, including the H99T, H99RT, and H99ICT fixtures, making it a practical replacement or upgrade trim for existing installations. It is suited for residential ceilings where glare reduction and a clean white finish are required. The friction-based spring retention system keeps the trim seated flush without tools during final positioning. An optional socket extender, part number H1999, is available separately if a 50-watt PAR20 lamp is used with this trim.

Key Features

• Coilex screw-type threaded baffle reduces stray light compared to standard step-thread designs
• Die-cast trim ring provides rigidity and a consistent finish surface
• Three cat's-paw springs secure trim in housing without additional hardware
• Compatible with 120-volt line-voltage H99 family recessed housings
• White baffle and white trim ring finish for clean ceiling integration
• Plastic baffle construction keeps overall assembly weight low at 0.32 pounds

Compatibility

Designed for use with Halo H99 family 4-inch recessed housings, specifically the H99T, H99RT, and H99ICT fixtures operating at 120 volts line voltage.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and local codes. Always shut off power at the circuit breaker before handling any recessed lighting trim or housing components. The cat's-paw springs require careful alignment with the housing slots before seating the trim flush with the ceiling surface. If using a PAR20 lamp, verify socket extender compatibility before energizing the circuit.
