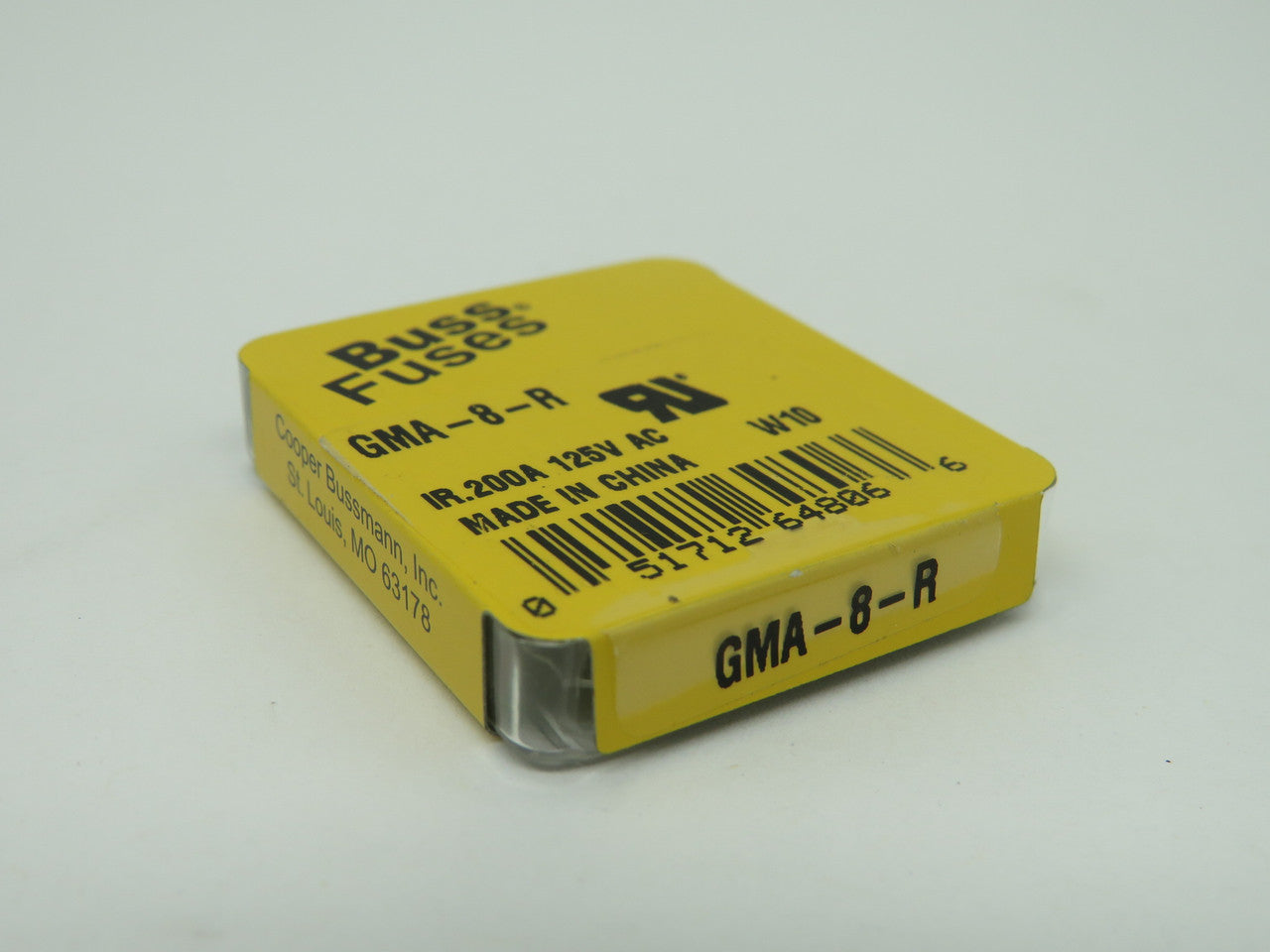

Cooper Bussman GMA-8-R GMA 8A Fuse (5-Pack)

Product Description

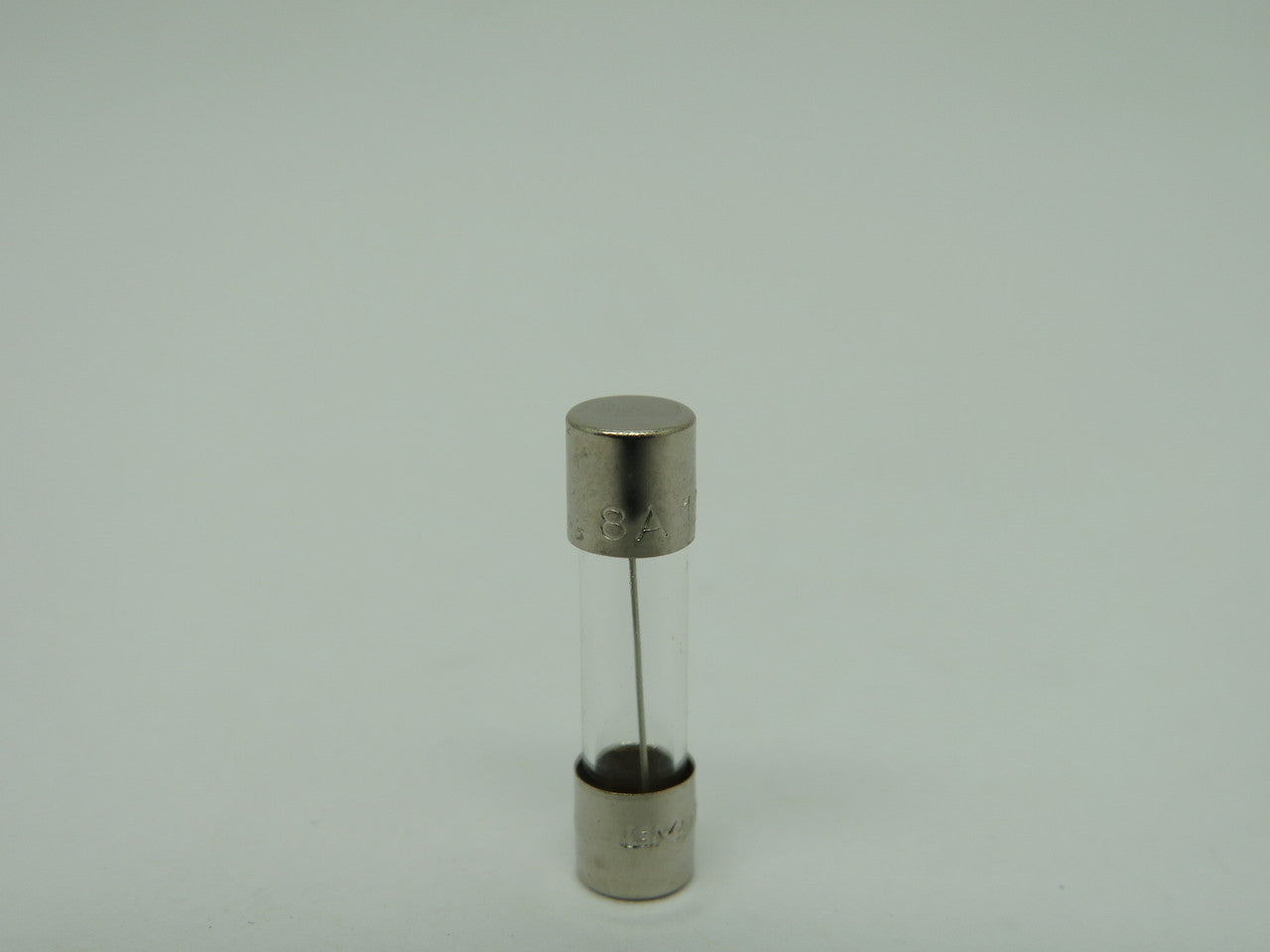

The COOPER BUSSMAN GMA-8-R is a fast-acting glass tube fuse designed for electronic circuits. With an amperage rating of 8A and a voltage rating of 125 Vac and 32 Vdc, this fuse provides reliable protection. It has an interrupt rating of 200 kAIC at 125 Vac and a response time of 60 min at 135%, 2 min at 200%.

• Fast-acting fuse for electronic circuits
• Glass tube with nickel-plated brass end cap construction
• Compliant with RoHS 2011/65/EU standards

Product Highlights

Fast-acting fuse with glass tube construction, ideal for low-voltage applications and electronic circuits.

Product Information

Standard Information

• Brand: COOPER BUSSMAN
• Manufacturer Part Number: GMA-8-R
• Country of Origin: Canada

Technical Specifications

• SKU: BK/GMA-8-R
• Product Name: Eaton Bussmann series GMA Fast-acting glass tube fuse
• Catalog Number: BK/GMA-8-R
• Product Height: 20 mm
• Compliances: RoHS Compliant
• Amperage Rating: 8 A
• Interrupt rating: 200 kAIC at 125 Vac
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Response time: 60 min at 135%, 2 min at 200%
• Material: Glass tube Nickel-plated brass end cap construction

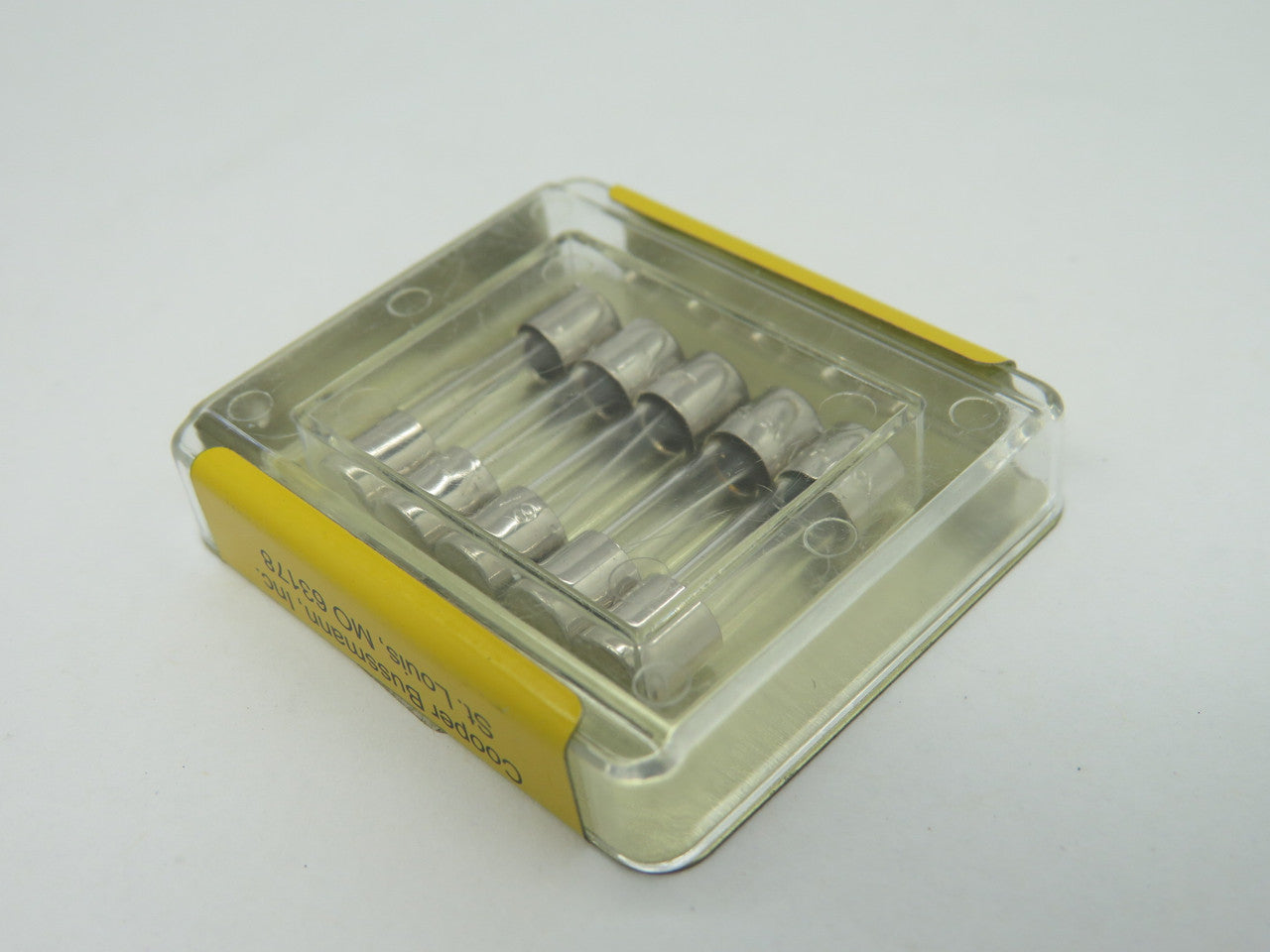

• Pkg Qty: 5
• Pkg UOM: EA
• Mfrcode: BUSS
• Mfr Fullname: COOPER BUSSMANN
• Voltage Rating: 125 VAC
• Pkg Type: CT
• Length: 20 MM
• Diameter: 5 MM
• Terminal Type: FERRULE
• Approval: CE
• Current Rating: 8 AMPERE
• Interrupting Rating: 200 AMPERE
• Characteristics: FAST ACTING
• Brand: Cooper Bussmann
• MPN: GMA-8-R
• Primary brand: Eaton
• Secondary brand: Cooper Bussmann
• Main function: Fuse
• Product series / family name: LV electronic / PCB / small dimension fuses
• Sub-range name: Tube fuse cartridges
• Functions: Low-Voltage (LV) fast-acting tube fuse cartridge
• Rated current: 8A
• Rated Voltage (DC): 32Vdc (self certified)
• Rated voltage (AC): 125Vac
• Short circuit breaking rating: 200A (at 125Vac; UL/CSA)
• Dimensions: D0.2" x L0.8"
• Technical compatibility with: electronic circuits
• Order code / Manufacturer SKU: GMA-8-R
• Manufacturer product status: Commercialized
• UPC code: 051712648066
• Compliant with standard(s): UL Recognized Guide JDYX2 File E19180
• RoHS compliant: RoHS 2011/65/EU compliant
• Application: Electronic circuits
• Type: Electronic
