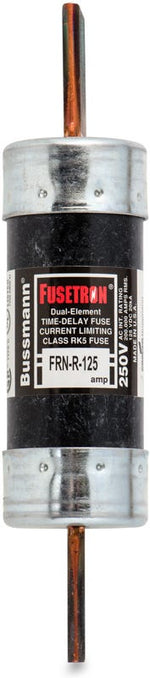

Cooper Bussman FRN-R-125 Fuse 125A

Product Description

The COOPER BUSSMAN FRN-R-125 is a Bussmann series advanced protection, energy efficient FRN-R class RK5 dual element, current limiting, time delay fuse. This non-indicating, rejection fuse has a response time of 10 s at 500% of rated current. It is suitable for holder mounting with a blade terminal and a fiberglass cartridge body.

• EATON Bussmann series advanced protection
• Energy efficient FRN-R class RK5 dual element
• Current limiting

Product Highlights

The COOPER BUSSMAN FRN-R-125 fuse provides reliable circuit protection with its time-delay, dual-element design and current limiting capabilities.

Product Information

Standard Information

• Brand: COOPER BUSSMAN
• Manufacturer Part Number: FRN-R-125

Technical Specifications

• Series: FRN-R
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Rejection
• Amperage: 125 A
• Voltage: 250 VAC/125 VDC
• Interrupt Rating: 20/200 kA
• Class: RK5
• Response Time: 10 s at 500%
• Terminal Type: Blade
• Mounting: Holder Mount
• Body Type: Cartridge
• Element: Dual Element
• Body Material: Fiberglass
• Body Size: 1.56 in Dia x 7.13 in L
• Product Name: Eaton Bussmann series FRN-R fuse
• Catalog Number: FRN-R-125
• UPC: 051712507455
• Product Length/Depth: 2.1 in
• Product Height: 0.54 in
• Product Width: 0.54 in
• Warranty: Not Applicable
• Compliances: CE Marked
• Product Type: Fuse
• Amperage Rating: 125 A
• Interrupt rating: 200 kAIC at 250 Vac 20 kAIC at 125 Vdc
• Voltage rating: 250 Vac, 125 Vdc
• Number of elements: Dual
• Packaging type: Standard
• Connection: Blade end x blade end
• Fuse indicator: Non-indicating
• Time Delay: Yes
• AC Voltage Rating: 250
• DC Voltage Rating: 125
• UL Listed: Yes
• CSA Certified: Yes
• Material: Fiberglass
• Mounting Type: Holder
