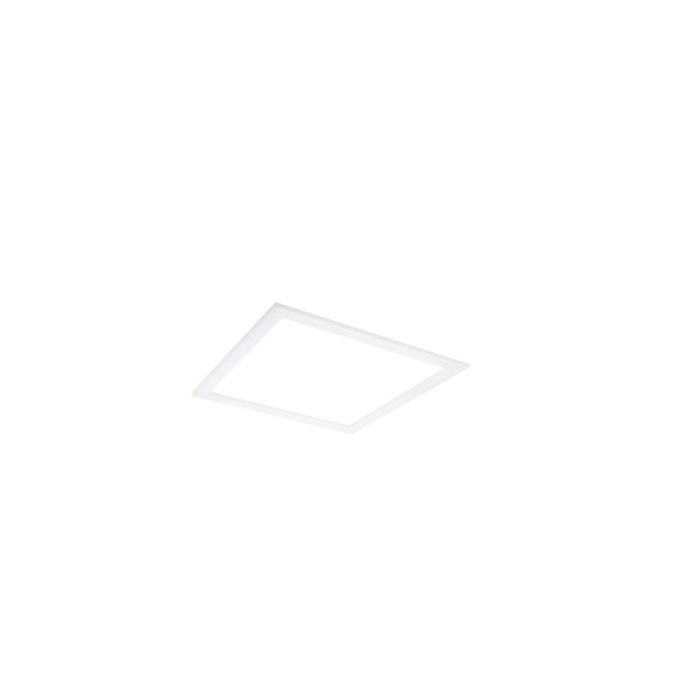

Cooper 22SFS-L3C4-UNV Metalux Surround 36 W 2 feetx2 feet

Product Description

The COOPER 22SFS-L3C4-UNV Metalux Surround offers a modern contemporary illuminated design. This LED fixture features selectable lumens from 2,000-8,500 and 4 CCT selectable colors in 80 CRI: 3000K, 3500K, 4000K, and 5000K. It has versatile mounting for existing T-grids or surface/suspension with an additional kit and 0-10V continuous dimming to 5%.

• Modern contemporary illuminated design
• 5 Form factors to cover troffer and linear ceilings: 1x2, 2x2, 2x4, 1x4, 1x8
• 4 CCT Selectable Color in 80 CRI: 3000K, 3500K, 4000K, 5000K

Product Highlights

This Metalux Surround offers high efficacy up to 150 lm/W for DLC compliance and rebates.

Product Information

Standard Information

• Brand: COOPER
• Manufacturer Part Number: 22SFS-L3C4-UNV
• Country of Origin: MY

Technical Specifications

• Brand Name: Metalux
• Family: Surround
• Lamp Type: LED
• Amperage Rating: 0.13A at 277V
• Color Temperature Max: 5000K
• Mounting: Surface/Suspended
• Voltage Rating: 120-277V
• Wattage: 36 W
• Manufacturer: Cooper Lighting Solutions
• Type: Surround, Surround Frame Selectable Lumen
• Series: SFS, Surround, Selectable Drop Lens LED
• Lighting Technology: LED
• Average Life: >L88@60,000 hours based on TM21 testing standards
• Color Temperature: Selectable CCT, 3000K, 3500K, 4000K, 5000K
• Color Rendering Index (CRI): 80 CRI
• Lens Type: Polycarbonate Frosted Ribbed Lens
• Lumens: 2000-8500
• Enclosure Type: Damp Location
• Mfg #: 22SFS-L3C4-UNV
• Certifications: cUL, Damp Rated, Title24, UL, RoHS
• Watts: 36
• Special Features: CCT Selectable, Lumen Selectable
• Input Volts: 120-277V
• Dimmable: Yes
• Life (hrs): 60,000
• Order Code: 22SFS-L3C4-UNV
