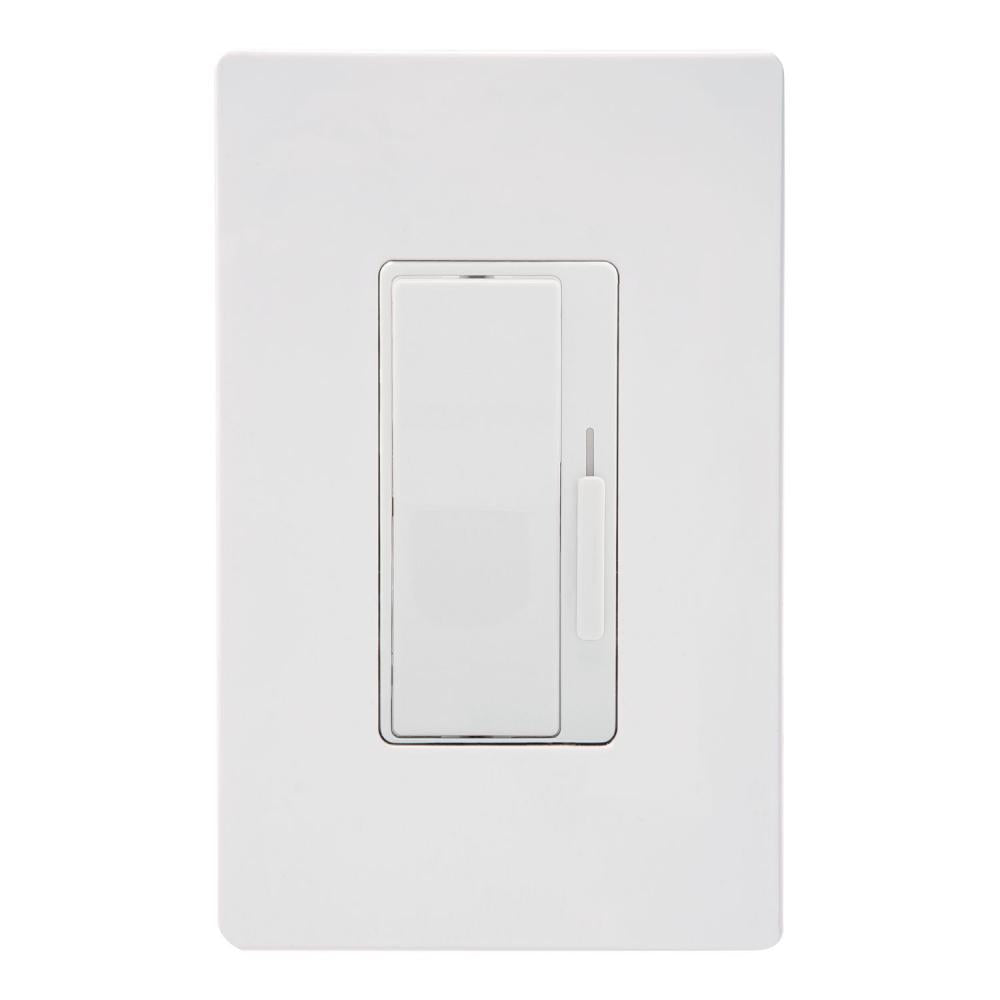

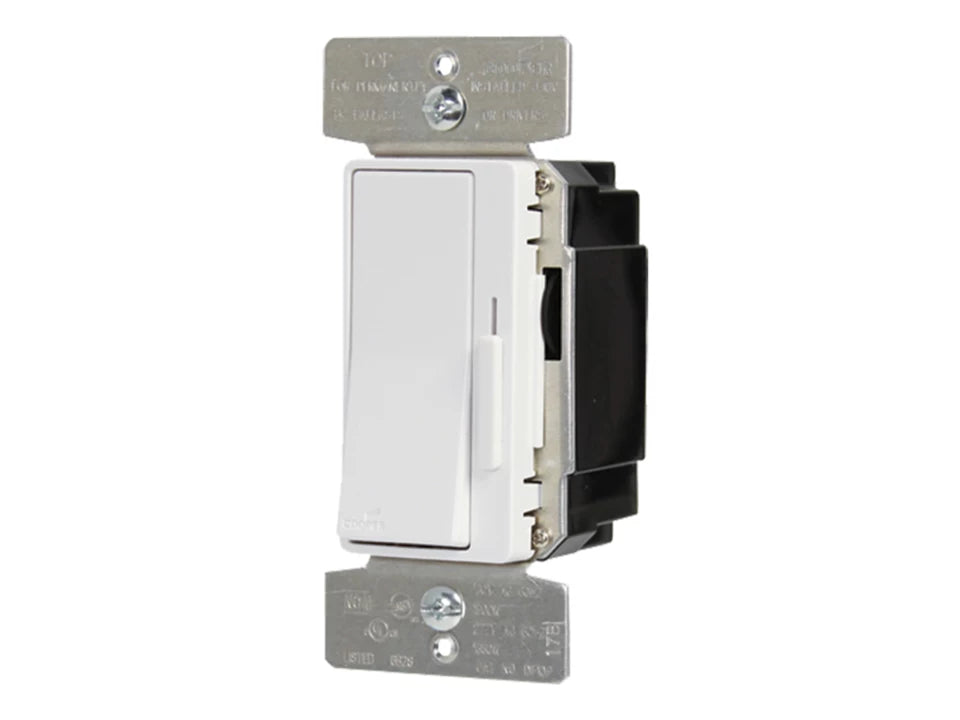

Controls WBSD-010DEC-C2 3-Way All Load Decorator Dimmer Wallstation

Product Description

The Controls WBSD-010DEC-C2 is a 3-way all load decorator dimmer wallstation. This device allows for linear slide dimming for dimmable light sources compatible with 0-10V. It can be installed in both single-pole and 3-way configurations. The unit features a preset on/off switch that turns lights back to a specific brightness level when switched on. Ideal for light commercial settings, it works well with decorator style devices and wall plates. The dimmer includes a 3-color faceplate kit.

• Integrated full-slide control for operation
• Can be wired as single-pole or 3-way
• Neutral wire not necessary for installation

Product Highlights

This dimmer switch is designed to enhance lighting control in various environments.

Product Information

Standard Information

• Brand Name: Controls
• Type: 3-Way All Load Decorator

Technical Specifications

• Voltage Rating: 120/277 VAC
• Amperage Rating: 6/10 A
• Power Rating: 1200/1660 W
• Frequency Rating: 60 Hz
• Number of Poles: 1
• Mounting Type: Surface Mount
• Temperature Rating: -4 to 158 deg F
• Dimensions: 3.25 in L x 2.8 in W x 4.9 in H
• Sub Brand: WBSD-010DEC - Decorator 0-10V Wallswitch Slide Dimmer
• Standard: UL Listed
• Country Of Origin: CN
