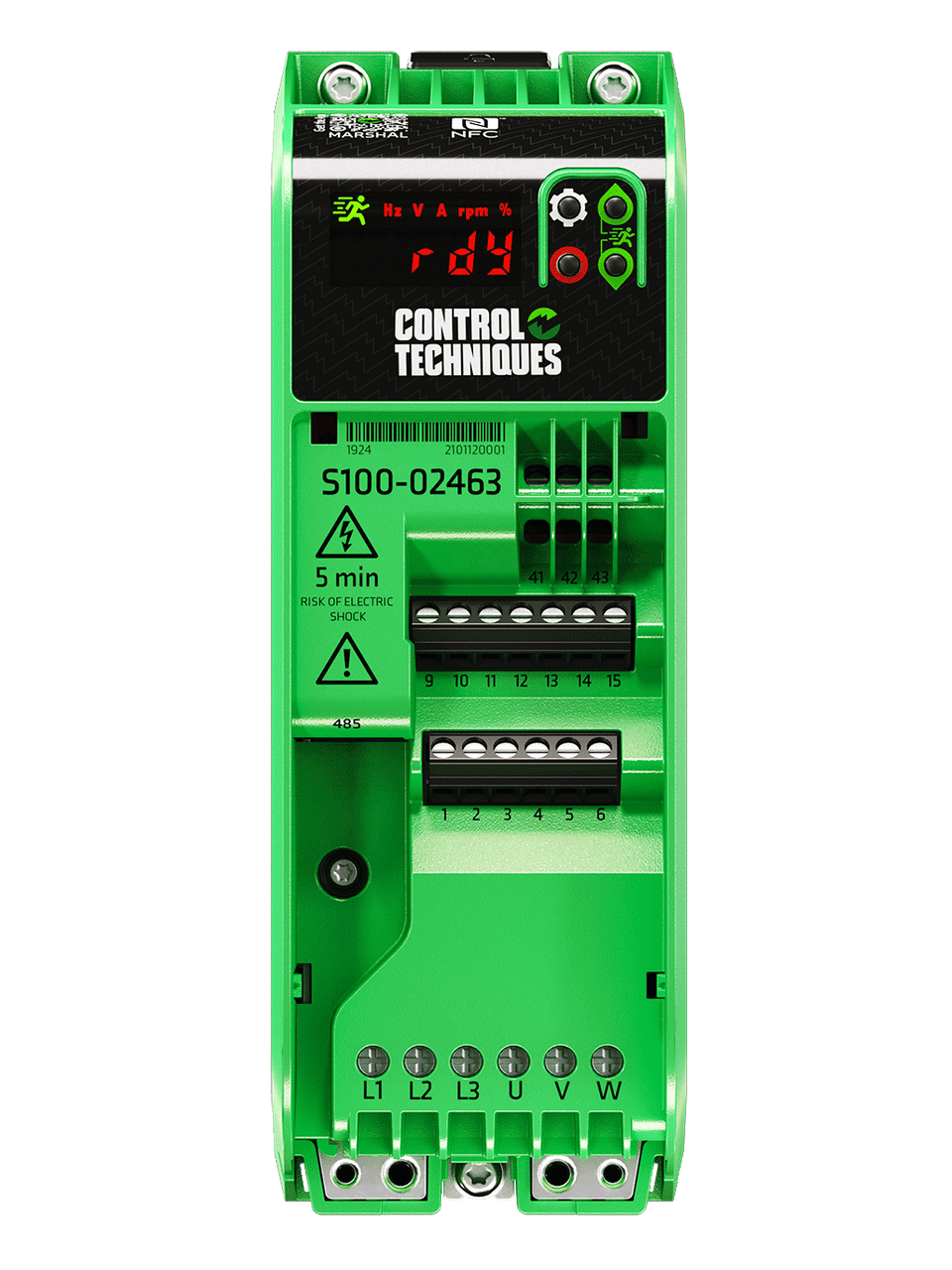

CONTROL TECHNIQUES S100-02463 Commander S100 AC Drive

Product Description

The CONTROL TECHNIQUES S100-02463 is a Commander S100 micro AC drive made for motor control and energy savings. It works in both normal and heavy-duty settings, with a maximum continuous output current of five point three amps. This drive includes EMC filters that meet IEC 61800-3, category C3 standards. It is ideal for various applications and allows for easy setup.

• Supports 460Vac 3-phase input and output.
• Features EMC filters in line with IEC 61800-3, category C3.
• Offers multiple motor control modes and stopping options.

Product Highlights

This drive is reliable for motor operations in different environments while ensuring energy efficiency.

Product Information

Standard Information

• Brand: CONTROL TECHNIQUES
• MPN: S100-02463

Technical Specifications

• Input Voltage: 1Φ AC 115 & 230 V, 3Φ AC 230 & 460 V
• Output Current: 5.3A
• Horsepower: 3HP
• Power Range: 0.25 to 5 hp / 0.18 to 4 kW
• Duty Rating: Heavy Duty
• Input Frequency: 50/60 Hz
• Output Frequency: 0 to 300 Hz
• Switching Frequency: 4 kHz and 12 kHz
• Motor Control: Linear V to F, Square V to F, Resistance, Compensation
• Stopping Modes: Coast, Ramp, Ramp & DC Injection Braking
• Relay Outputs: 1 x Relay (single pole, double throw relay)
• IP Rating: IP20
• Operating Temperature: -10°C to 40°C (without de-rate), -10°C to 60°C (with de-rate)
