CONTROL TECHNIQUES S100-01D73 AC Drive

Product Description

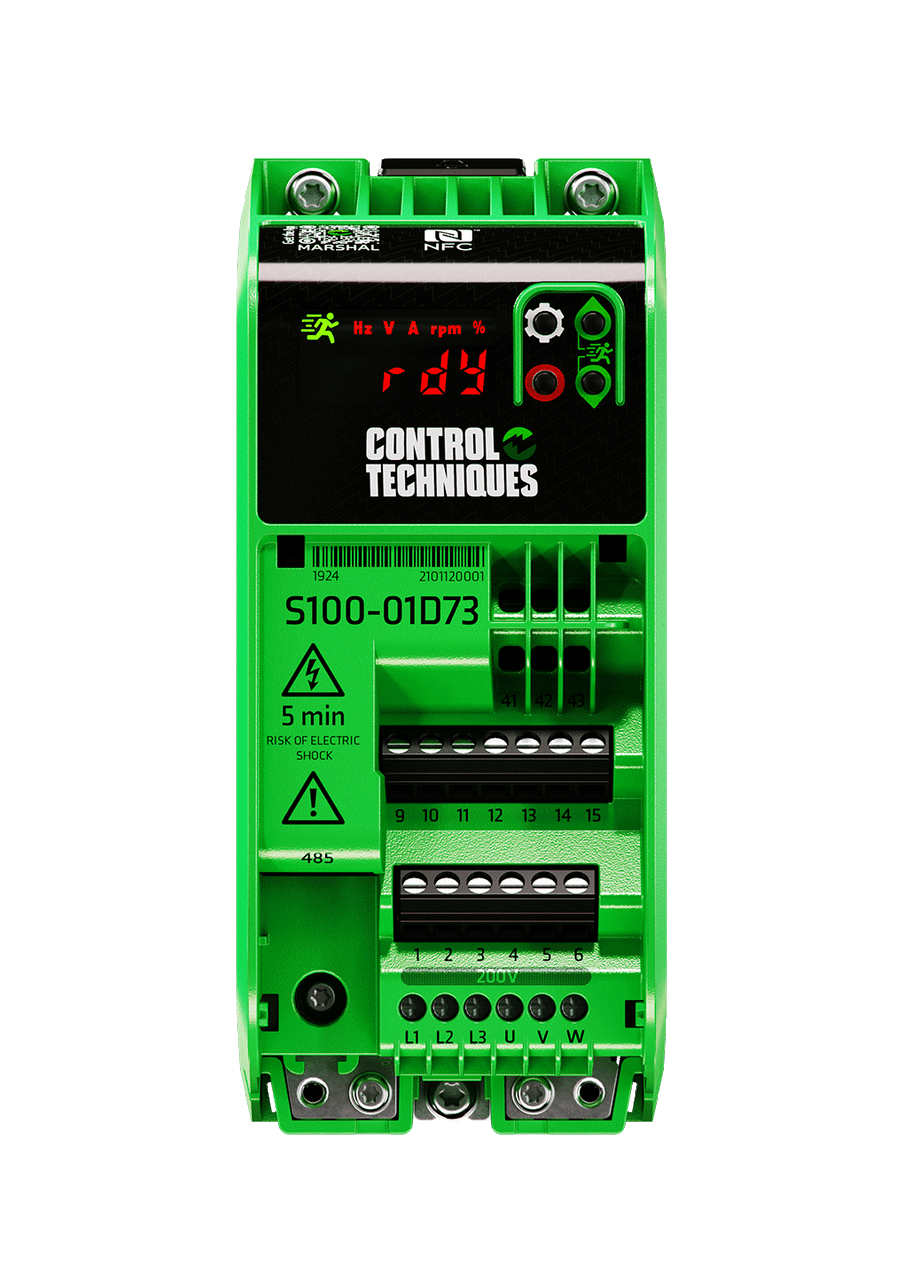

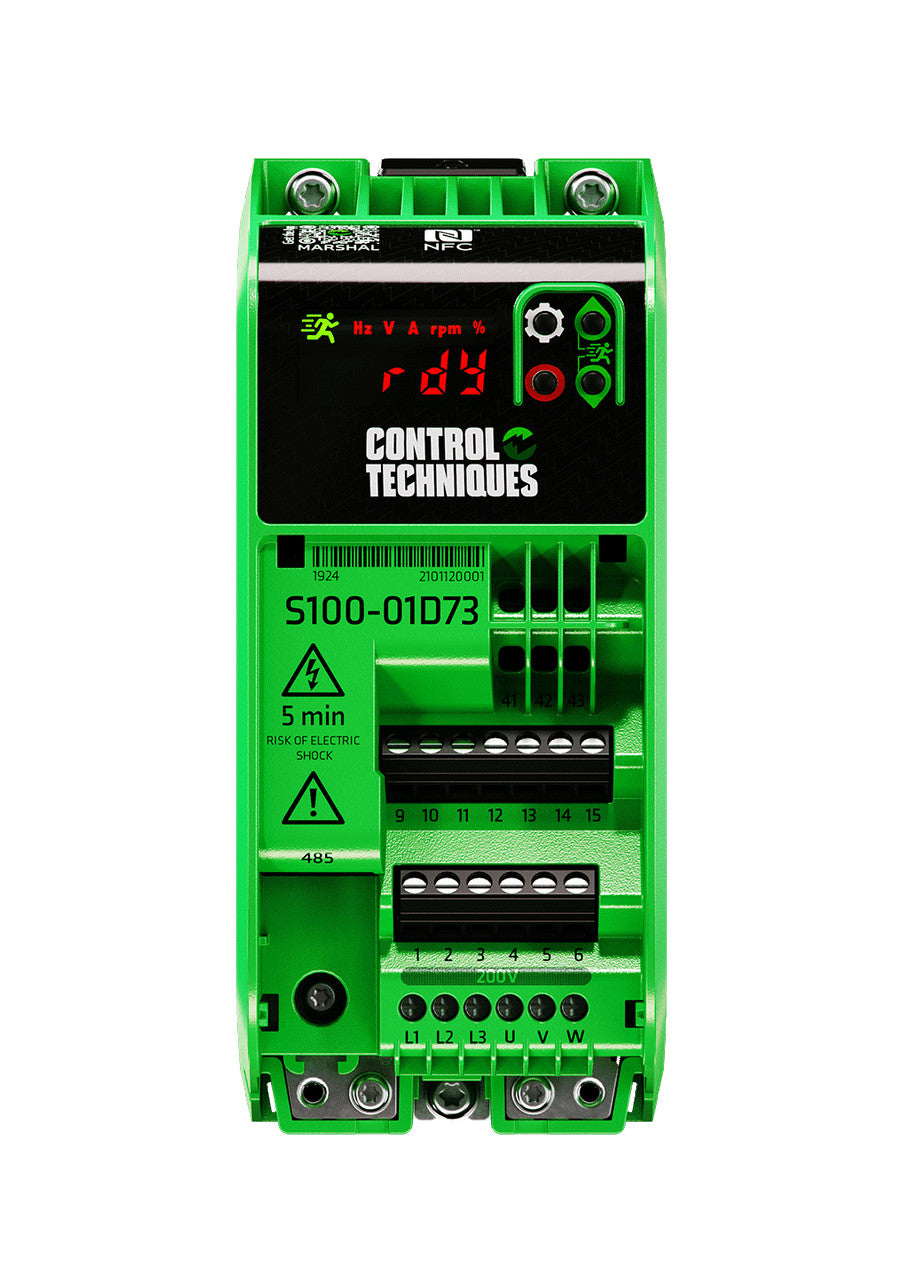

The CONTROL TECHNIQUES S100-01D73 is a micro AC drive from the Commander S series crafted for efficient motor control. It operates with a single-phase two hundred thirty Volt input, delivering a reliable three-phase output at the same voltage. This model includes built-in EMC filters that meet IEC 61800-3 category C3 standards, ensuring enhanced performance in various environments. It is designed for both normal and heavy-duty applications, allowing a maximum continuous output current of seven point five Amperes or two horsepower.

• Input Voltage: Single-phase 230Vac
• Output Voltage: Three-phase 230Vac
• Integrated EMC filter compliant with IEC 61800-3

Product Highlights

The S100-01D73 is versatile for different motor control requirements, offering users flexibility in industrial applications.

Product Information

Standard Information

• Brand: CONTROL TECHNIQUES
• MPN: S100-01D73

Technical Specifications

• Input Voltage: 1∼ AC 115 & 230 V, 3∼ AC 230 & 460 V
• Output Current: 7.5A
• Power Range: 0.25 to 5 hp / 0.18 to 4 kW
• Horse Power: 2HP
• Duty Rating: Heavy Duty
• Input Frequency: 50/60 Hz
• Output Frequency: 0 to 300 Hz
• Switching Frequency: 4 kHz and 12 kHz
• Motor Control: Linear V to F, Square V to F, Resistance, Compensation
• Stopping Modes: Coast, Ramp, Ramp & DC Injection Braking, DC Braking with 0 Hz detect, Timed DC Braking, Distance Stop
• Communications: RJ45 for Modbus RTU, NFC for app interface
• Analogue Inputs: 2
• Analogue Outputs: 1
• Digital Inputs: 4
• Digital Input/Output: 1
• Relay Outputs: 1 x Relay (single pole, double throw relay)
• Enclosure Rating: IP20
• Mounting Type: Click on/click off DIN rail mount, Screw mount
• Operating Temperature: Operation without de-rate: 14°F to 104°F (-10°C to 40°C), Operation with de-rate: 14°F to 140°F (-10°C to 60°C), Storage: -40°F to 140°F (-40°C to 60°C)
• Certifications: CE, UKCA, cULus, C-Tick, EAC, KC
• Standards: IEC/EN/KN/UL 61800-5-1, CSA C22.2 No.274, GB12668.501-2013
• EMC Compliance: C3 internal EMC filters, C1 & C2 with external EMC filters, C1 internal EMC filters for selected 1∼ 230 V variants
