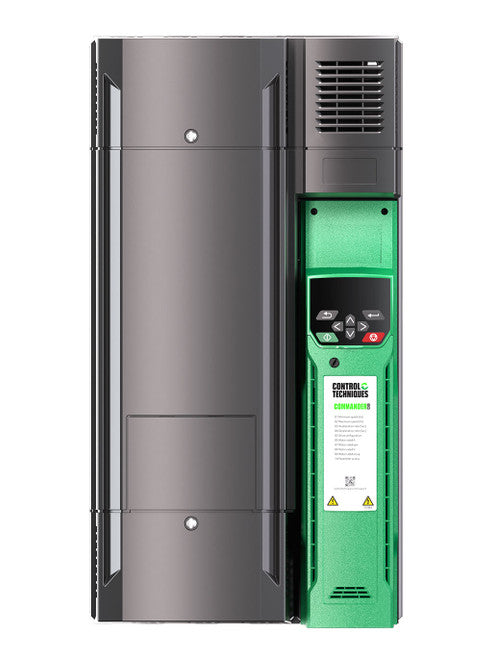

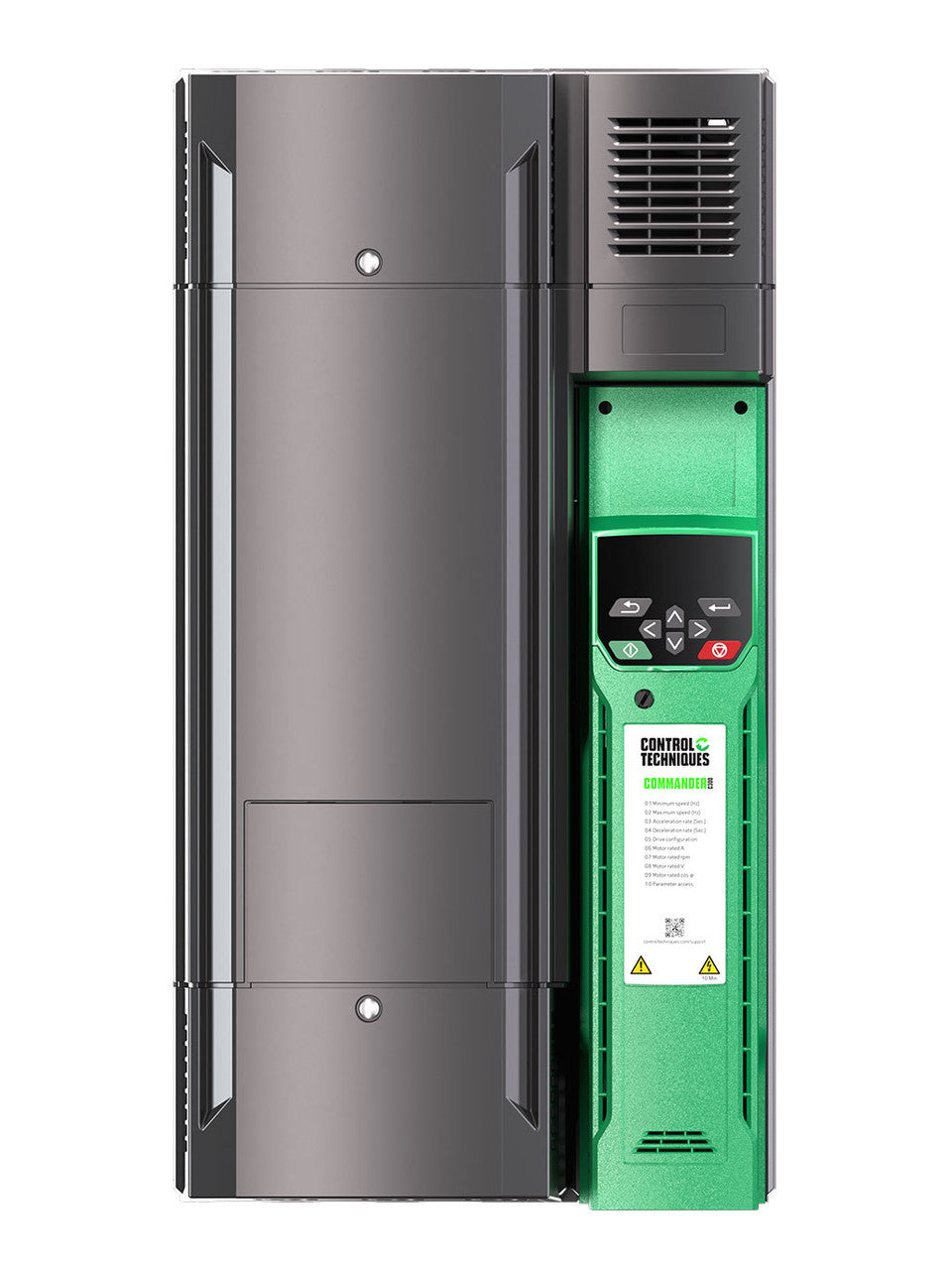

Control Techniques C300-07200750

Product Description

The Control Techniques C300-07200750 is an open-loop AC drive for motor control, accommodating both standard and heavy-duty tasks. It takes in a 3-phase 230VAC input and outputs the same. The unit features dual safe torque off channels for enhanced safety and is easy to install.

• Open loop vector or V / Hz induction motor control
• Dual Safe Torque Off (STO)
• Dynamic braking transistor included, requires external resistor

Product Highlights

The drive is suited for applications that need precise motor speed control and is built for a range of operating conditions.

Product Information

Standard Information

• Manufacturer: Control Techniques

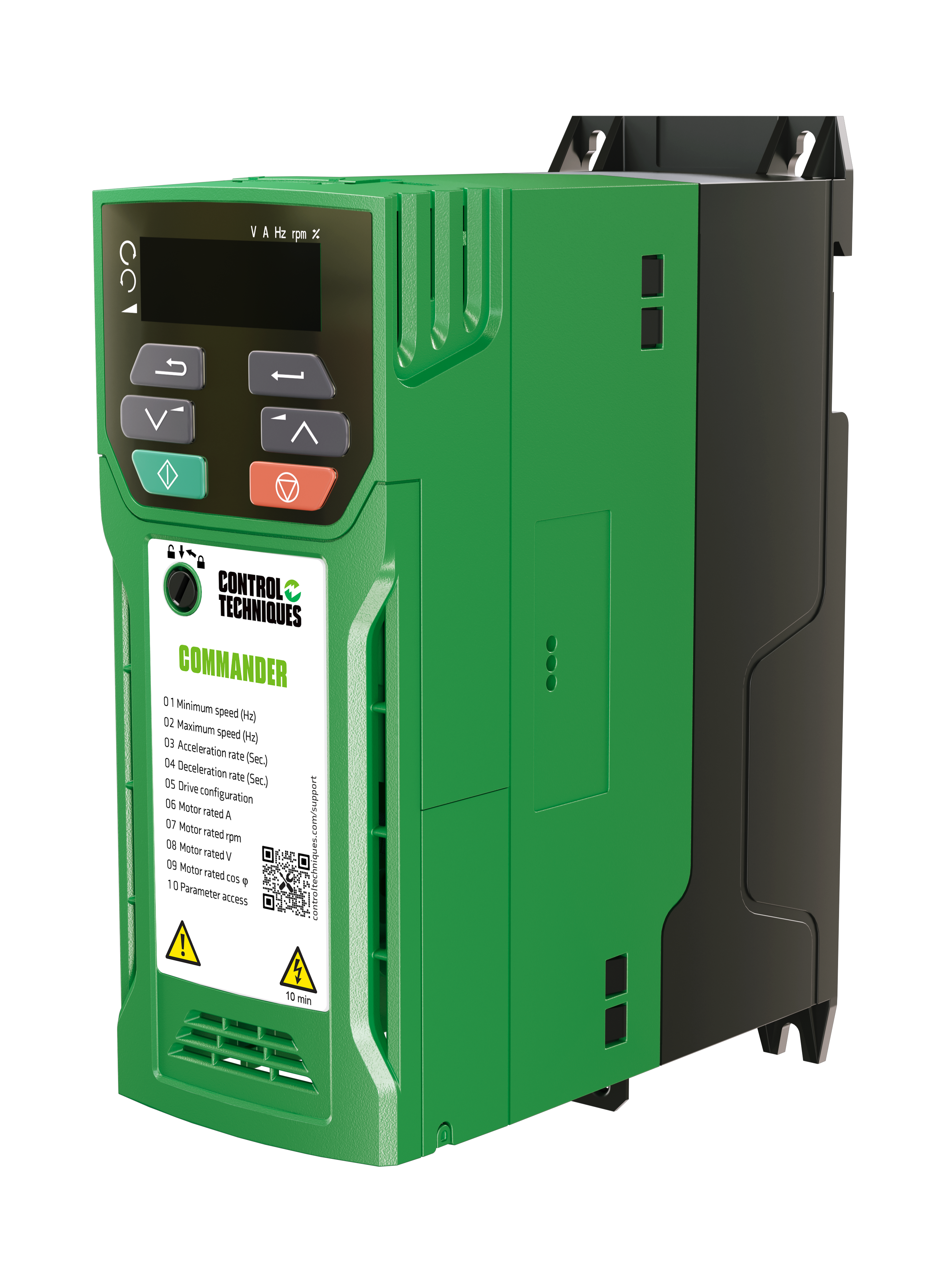

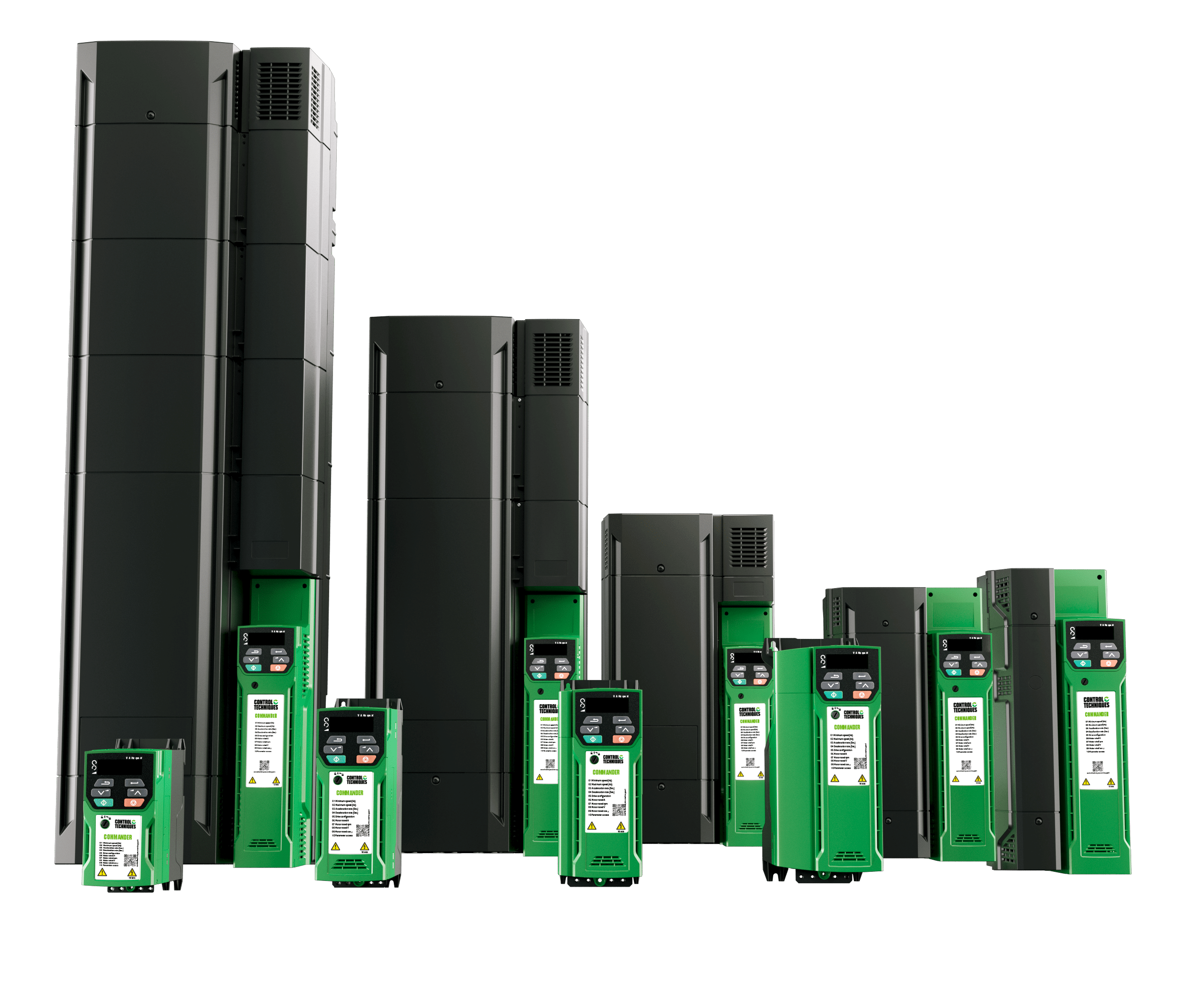

• Product Range: Commander C300

Technical Specifications

• Part Code: C300-07200750
• Input Voltage: 200 to 240 VAC ±10%
• Input Frequency: 45 to 66 Hz
• Output Frequency Range: 0 to 550 Hz
• Phase: 1Ø and 3Ø (Model dependent)
• Enclosure Rating: IP20, NEMA 1 conduit kits available
• Operating Temperature: -20°C to 40°C (-4°F to 104°F)
• Storage Temperature: -40°C to 60°C (-40°F to 140°F)
• Humidity: 95% non-condensing at 40°C (104°F)
• Cooling Method: Forced convection
• Dimensions (mm): 66 x 41 x 41.5
• Weight (Kg): 4144
• Control Mode: Open loop vector or V / Hz induction motor control
• Altitude: De-rate by 1% for every 100 m above 1000 m
• Vibration: Tested according to IEC 60068-2-64
• Mechanical Shock: Tested per IEC 60068-2-27
• Electromagnetic Capability: IEC/ EN 61800-3 Immunity and Emissions
• RoHS: Complies with RoHS Directive (2011/65/EU)
