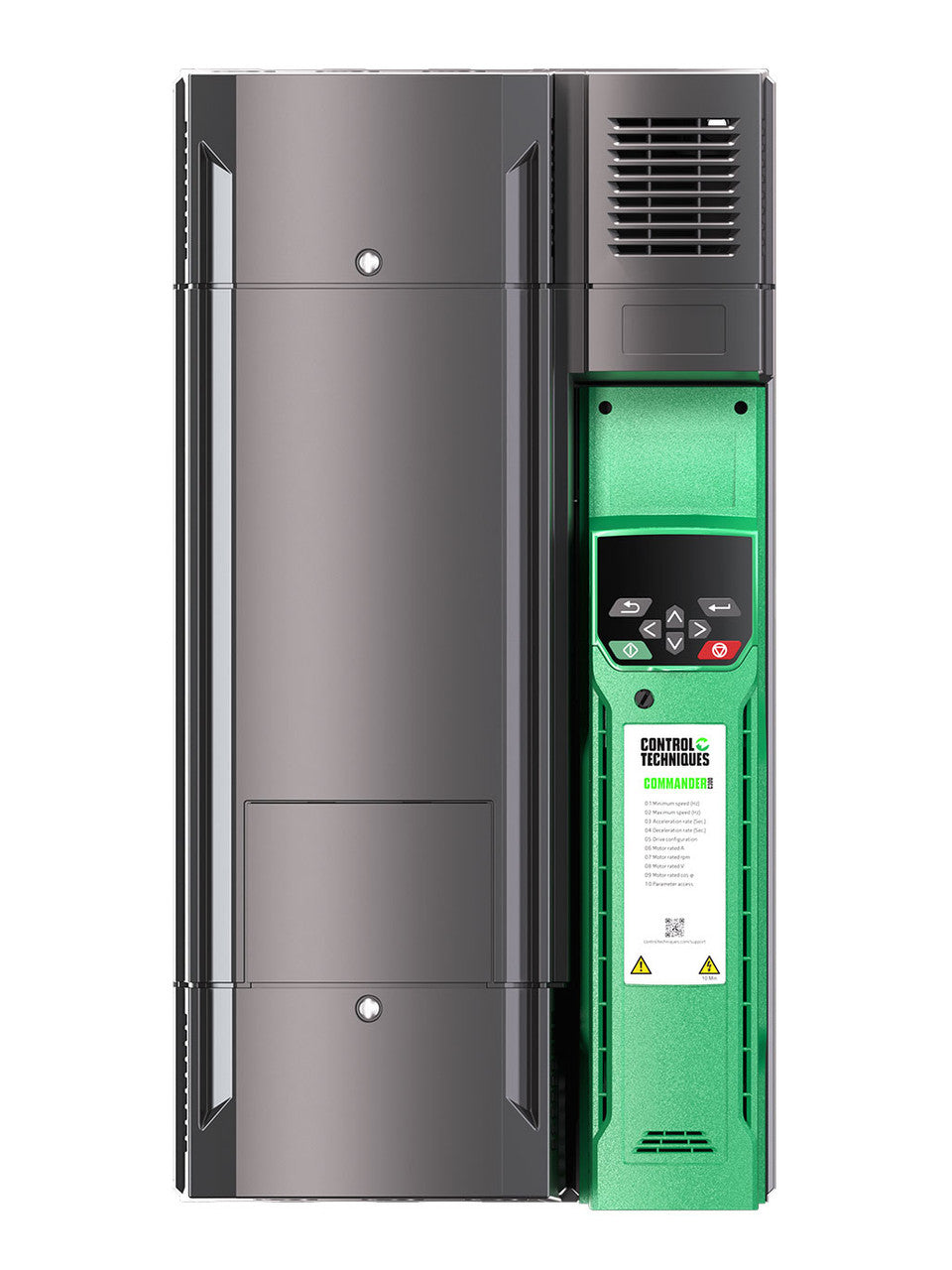

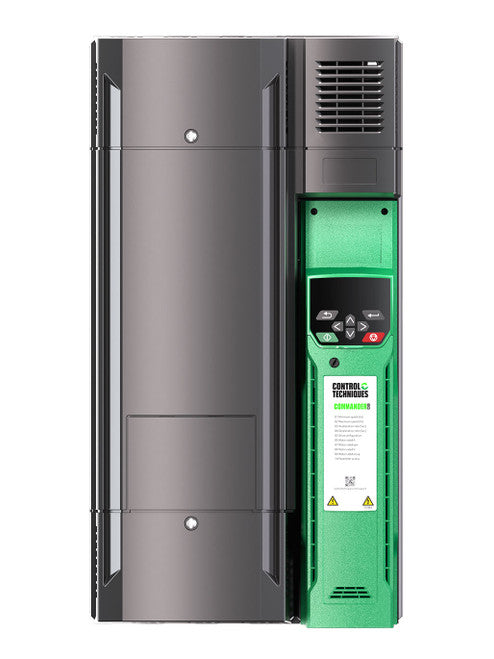

Control Techniques C300-07200610 AC Drive 230V 3-phase

Brand: CONTROL TECHNIQUES
SKU: C300-07200610
Availability: In Stock

Ships via freight in 1-3 business days
$3,921.12
$3,921.12
LTL Delivery

This product weighs 60 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Control Techniques C300-07200610 is an AC drive for motor control applications. It features open-loop vector control and V/Hz control for induction motors. The device includes open-loop Rotor Flux Control and has dual safe torque off channels. It contains a dynamic braking transistor that requires an external resistor for effective braking. Rated for 230 volts, this unit supports a 3-phase input and output and is classified as IP20.

  • Normal Duty: Seventy-five amperes, twenty-five horsepower at 110% overload
  • Heavy Duty: Sixty-one amperes, twenty horsepower at 150% overload
  • Dual safe torque off channels for enhanced safety

Product Highlights

This drive is designed for comprehensive motor management in various operational settings.

Product Information

Standard Information

  • Manufacturer: Control Techniques
  • Part Code: C300-07200610
Technical Specifications
Horsepower Rating
Twenty HP, twenty-five HP
Rated Voltage
Two hundred thirty volts
Rated Input Frequency
Sixty hertz
Dimensions
Height - Eleven point eight one inches, Width - Seven point two eight inches, Depth - Ten point nine eight inches
Cooling Method
Forced convection
Temperature Range
Operating - minus twenty degrees Celsius to forty degrees Celsius, Storage - minus forty degrees Celsius to sixty degrees Celsius
Phase Rating
Three phase input to three phase output
Enclosure Rating
IP20
