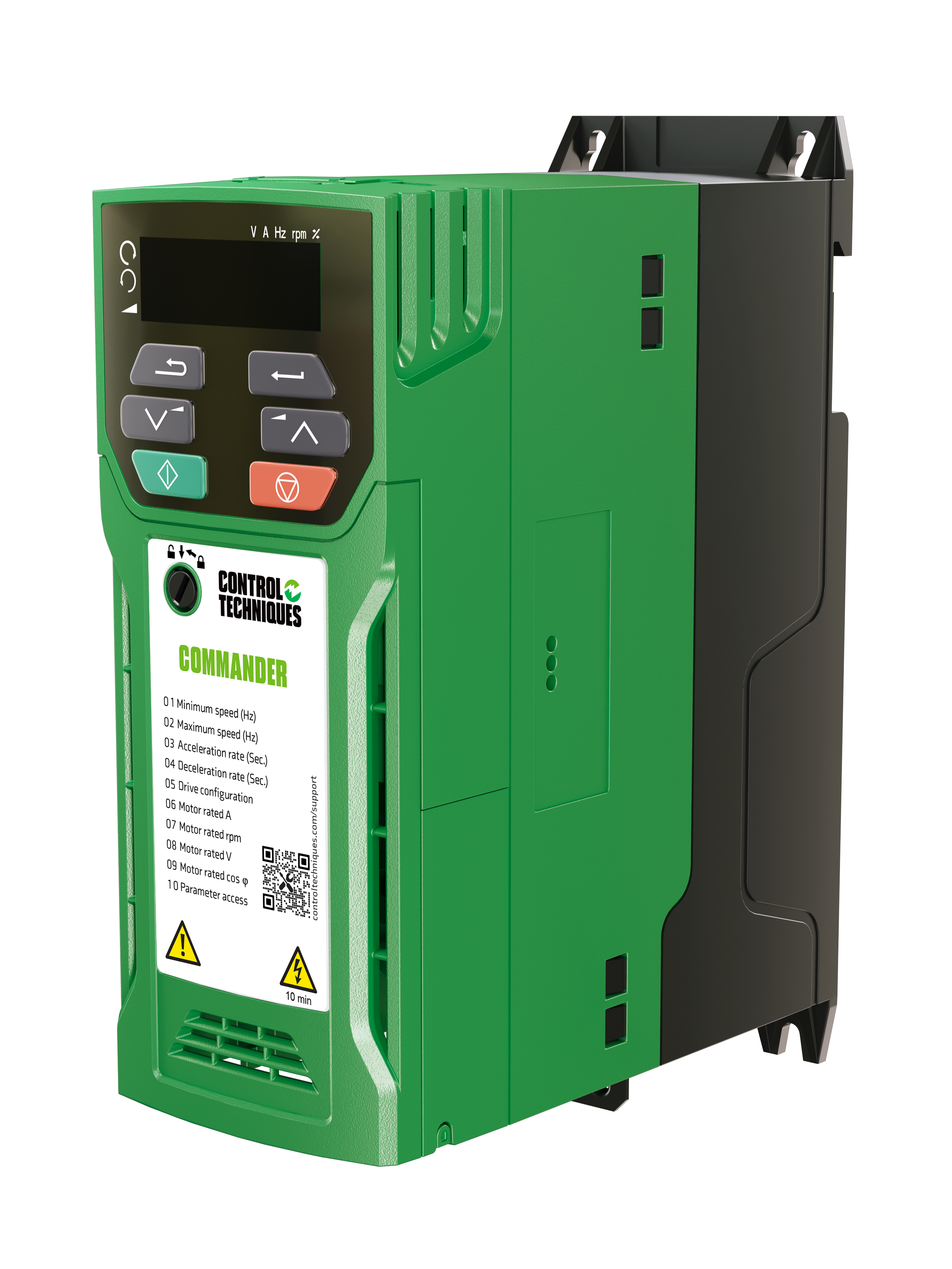

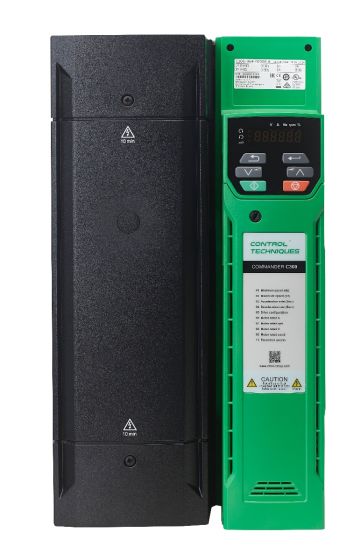

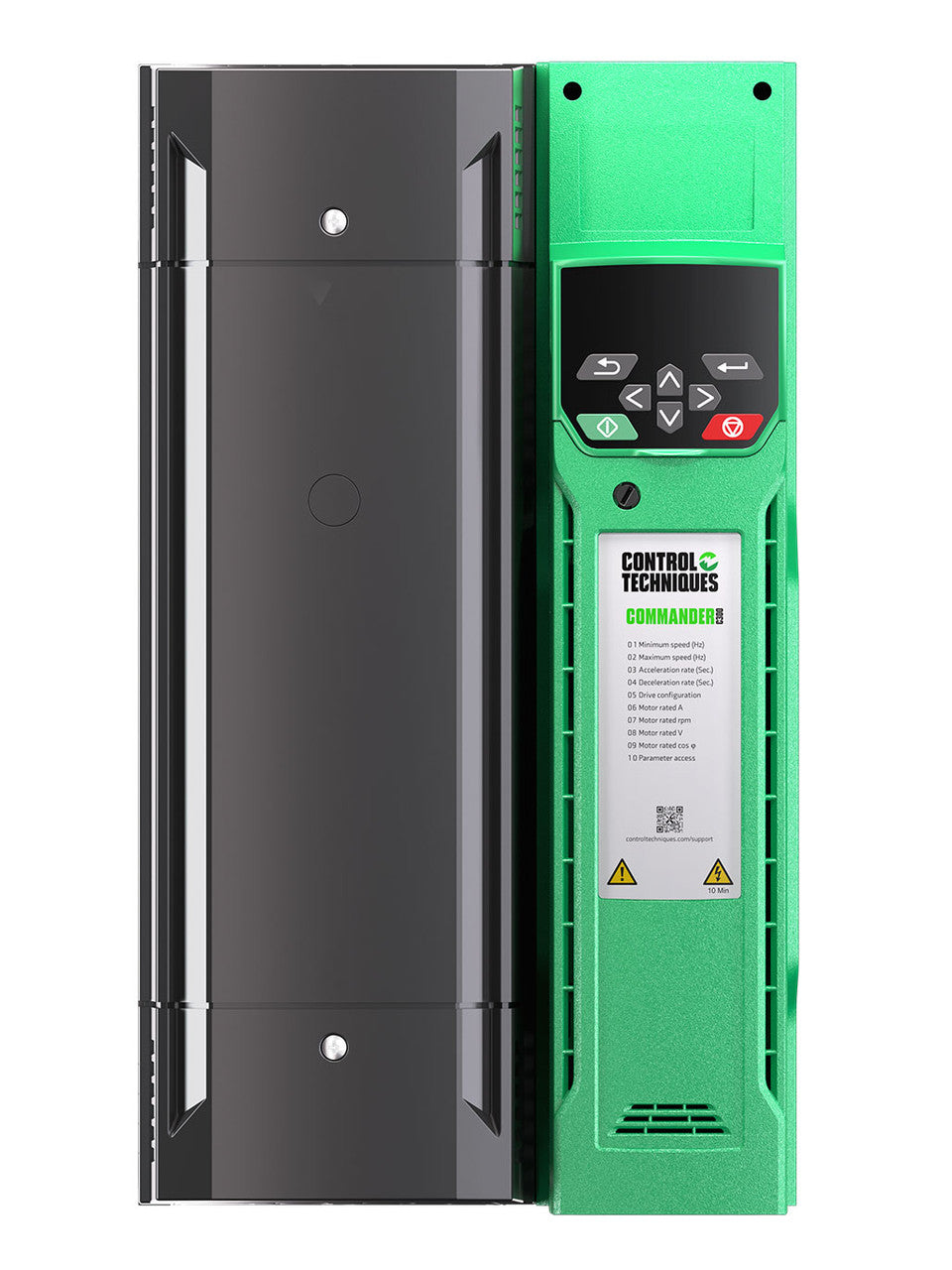

Control Techniques C300-06400420 Motor Control AC Drive 18.5 kW 400V 3-phase

Product Description

The Control Techniques C300-06400420 is an open-loop AC drive meant for controlling motors in applications such as conveyors, fans, pumps, and mixers. It utilizes a 400V 3-phase input and outputs the same voltage. The drive includes Safe Torque Off (STO) features that allow for seamless integration into safety systems. It is robust and provides overload capabilities while ensuring an easy setup process.

• 400V 3-phase input and output.
• Designed for motor control in various automation tasks.
• Incorporates Safe Torque Off (STO) technology.

Product Highlights

This drive supports heavy-duty operation and includes dynamic braking functionality, making it suitable for various industrial applications.

Product Information

Standard Information

• Brand: Control Techniques
• MPN: C300-06400420

Technical Specifications

• Power kW: 18.5
• Power HP: 25
• Input Voltage: 380 to 480 Vac
• Output Voltage: 0 to input
• Input Phases: 3
• Output Phases: 3
• Output Current: 42Amps
• Input Current: 41A
• Enclosure Rating: IP20
• Width: 210mm
• Height: 389mm
• Depth: 221mm
• Frame Size: 6
• Overload: 150%
• Duty: Heavy
• Dynamic Braking: Yes
• Weight: 14 kg
• Control Type: V/f, Open loop vector, RFC-A
• Input Frequency: 45 to 66 Hz
• Output Frequency: 0 to 550 Hz
• Max Temperature: 40 deg C
• Digital Inputs: 4
• Digital Outputs: 1
• Analogue Inputs: 2
• Analogue Outputs: 1
• Output relay(s): 1
• Serial Comms: With option module
• Approvals: CE, UL
• Control Mode: Open loop vector or V / Hz induction motor control
• Ambient Operating Temperature: -20°C to 40°C
• Cooling Method: Forced convection
• Humidity: 95% non-condensing at 40°C
• Storage Temperature: -40°C to 60°C
• Altitude: De-rate by 1% for every 100m above 1000m
• Vibration: Tested in accordance with IEC 60068-2-64 and IEC 60068-2-6
• Mechanical Shock: Tested in accordance with IEC 60068-2-27 and IEC 60068-2-29
• Electromagnetic Capability: IEC/ EN 61800-3 Immunity and Emissions
• RoHS: Complies with the Restriction of Hazardous Substances Directive
