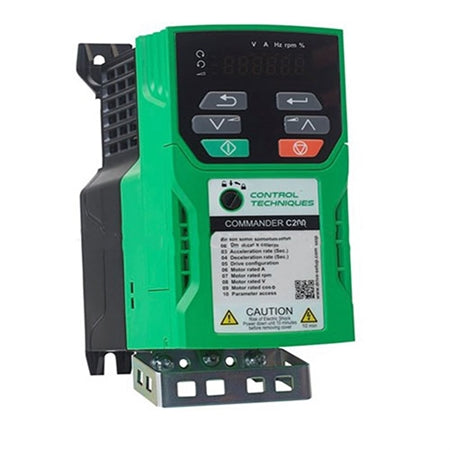

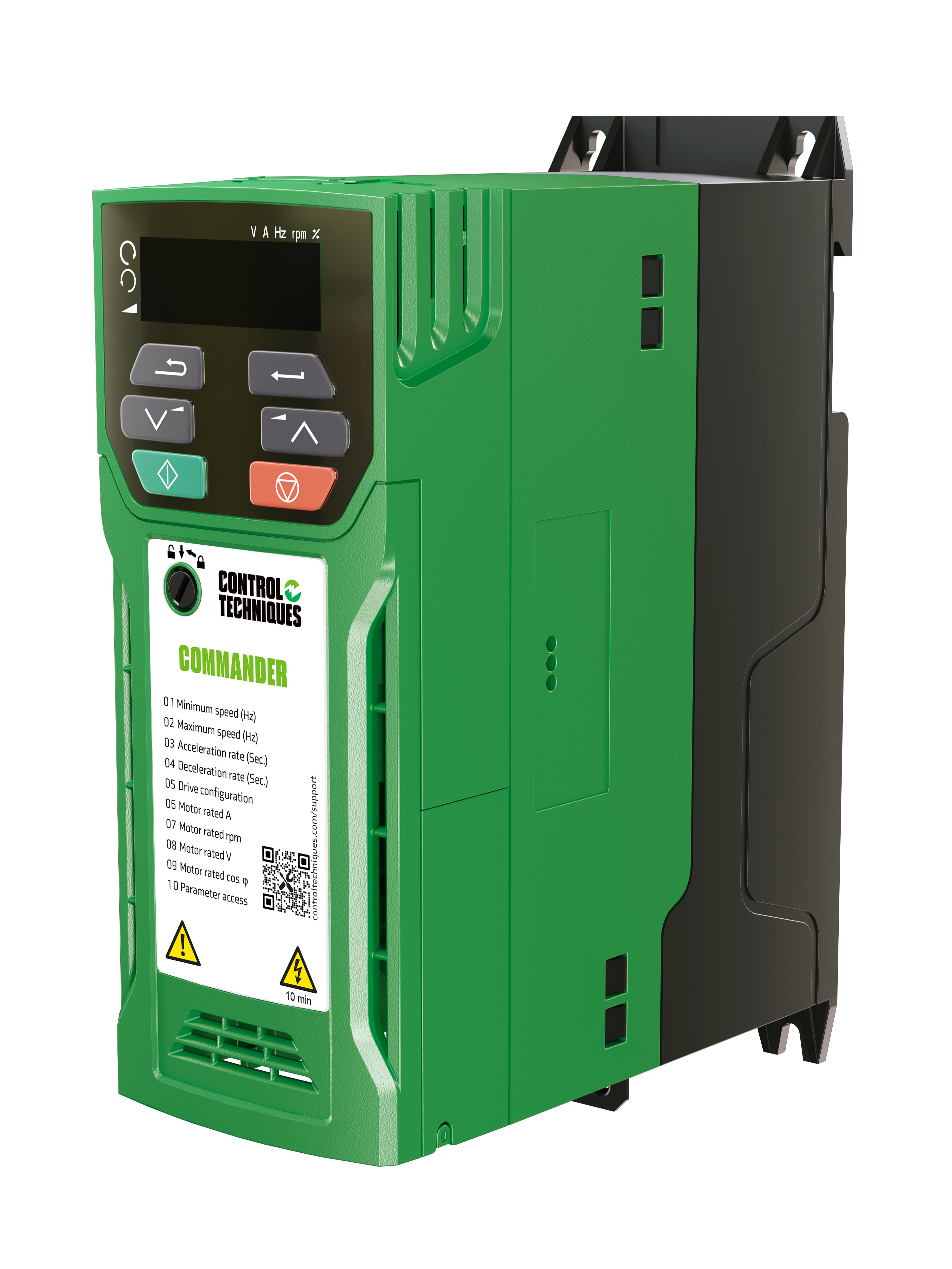

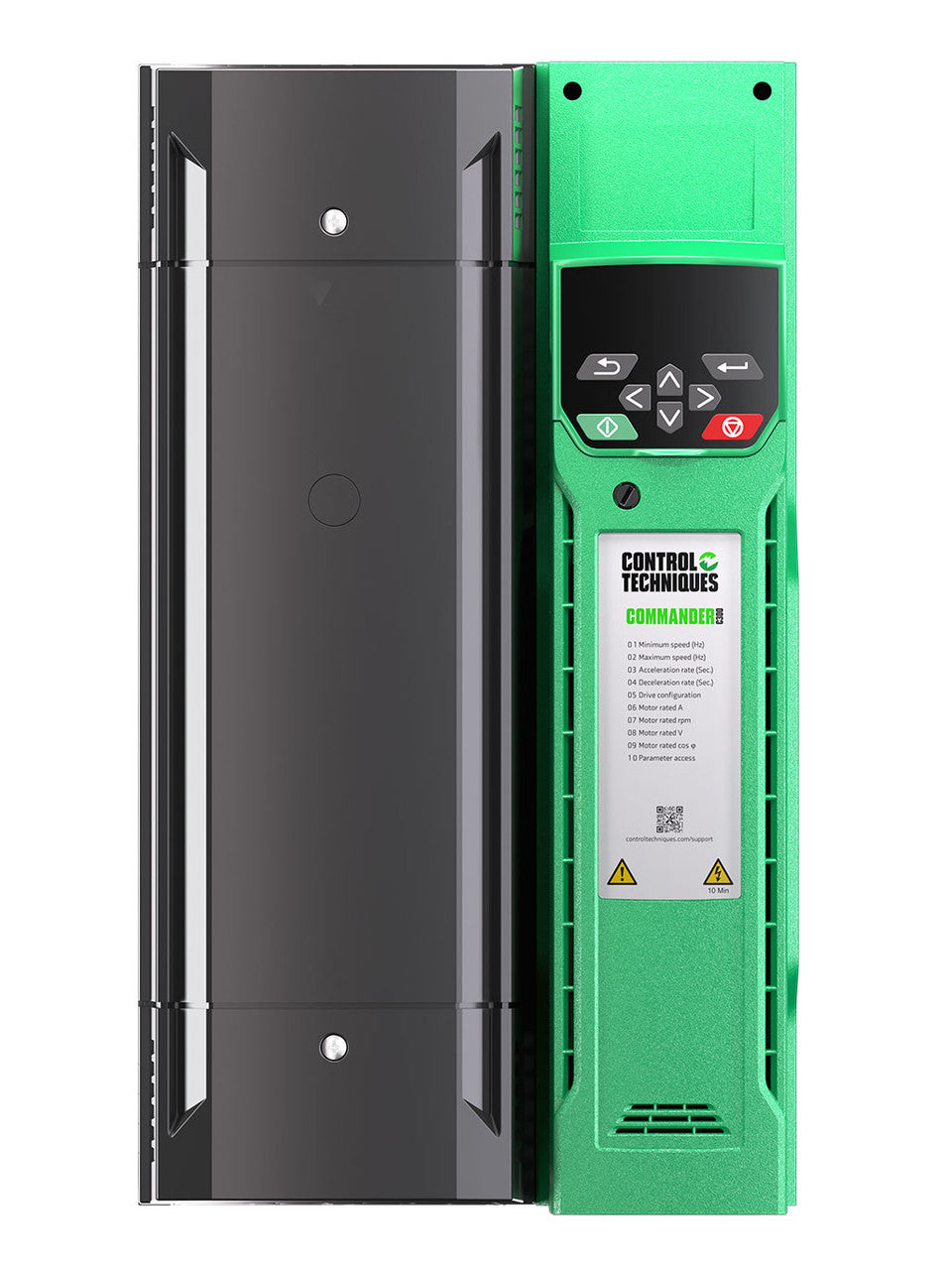

CONTROL TECHNIQUES C300-06400350 AC Drive 25HP

Product Description

The CONTROL TECHNIQUES C300-06400350 is an AC drive for motor control. This unit operates using open loop vector or V/Hz induction motor control. It also supports Rotor Flux Control for induction motors. Designed for a voltage of 460V, it provides 3-phase input and output.

• Includes Dual Safe Torque Off channels.
• Features a dynamic braking transistor.
• Rated for 25 HP with specific current capacities.

Product Highlights

This AC drive offers versatility in motor management, catering to heavy-duty operations and standard applications.

Product Information

Standard Information

• Manufacturer: Control Techniques
• MPN: C300-06400350

Technical Specifications

• Series: C300
• Rated Horsepower: 25 HP
• Input Voltage: 380 to 480 Vac ±10%
• Output Voltage: 460 V
• Input Frequency: 45 to 66 Hz
• Output Frequency Range: 0 to 550 Hz
• Current Ratings: 35 A (heavy duty), 38 A (normal duty)
• Enclosure Rating: IP20
• Operating Temperature: -20°C to 40°C
• Dimensions: 11.81 in (H) x 7.28 in (W) x 10.98 in (D)
• Weight: 35 lbs
