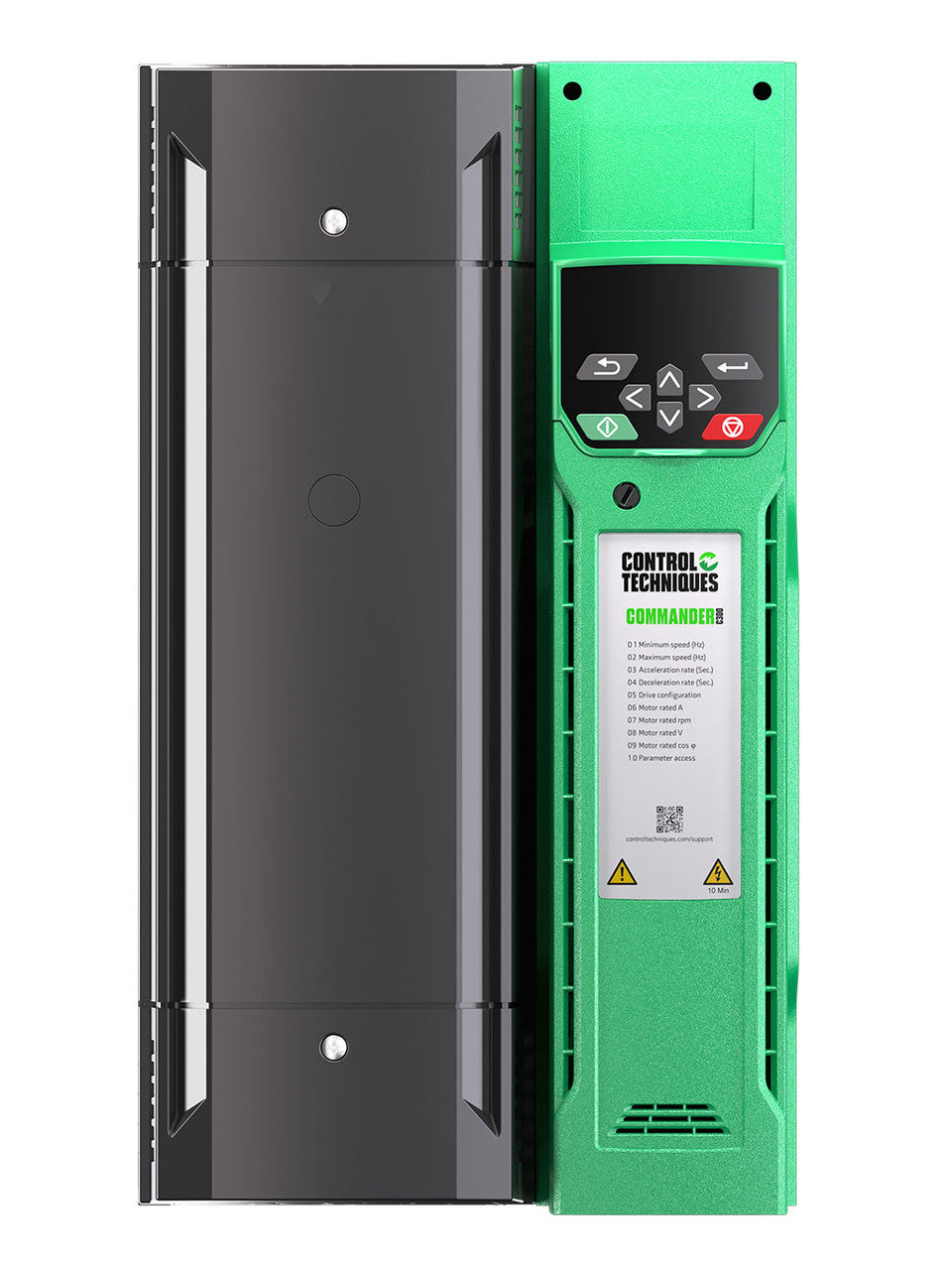

Control Techniques C300-06200440 Commander C300 20HP 3 Phase 230VAC

Product Description

The Control Techniques C300-06200440 is an open-loop AC drive from the Commander C300 series. It operates on 230VAC 3-phase input and output, suitable for both normal and heavy-duty applications.

• Supports 20HP 58A Normal Duty and 15HP 44A Heavy Duty.
• Features dual safe torque off channels for safety.
• Operates at 50/60Hz frequency.

Product Highlights

This drive is ideal for motor control in various applications, ensuring reliable performance with overload capability.

Product Information

Standard Information

• Manufacturer: Control Techniques
• Drive Series: Commander C300

Technical Specifications

• Maximum Horsepower: 20
• Input Phase: 3
• Input Voltage: 180-264V
• Output Current: 58
• Enclosure Rating: IP21
• Control Mode: Open loop vector or V / Hz induction motor control
• Operating Temperature: -20°C to 40°C
• Cooling Method: Forced convection
• Humidity: 95% non-condensing
• Weight: 35 lbs
• Dimensions: Width: 10 in, Height: 17 in, Depth: 12 in
