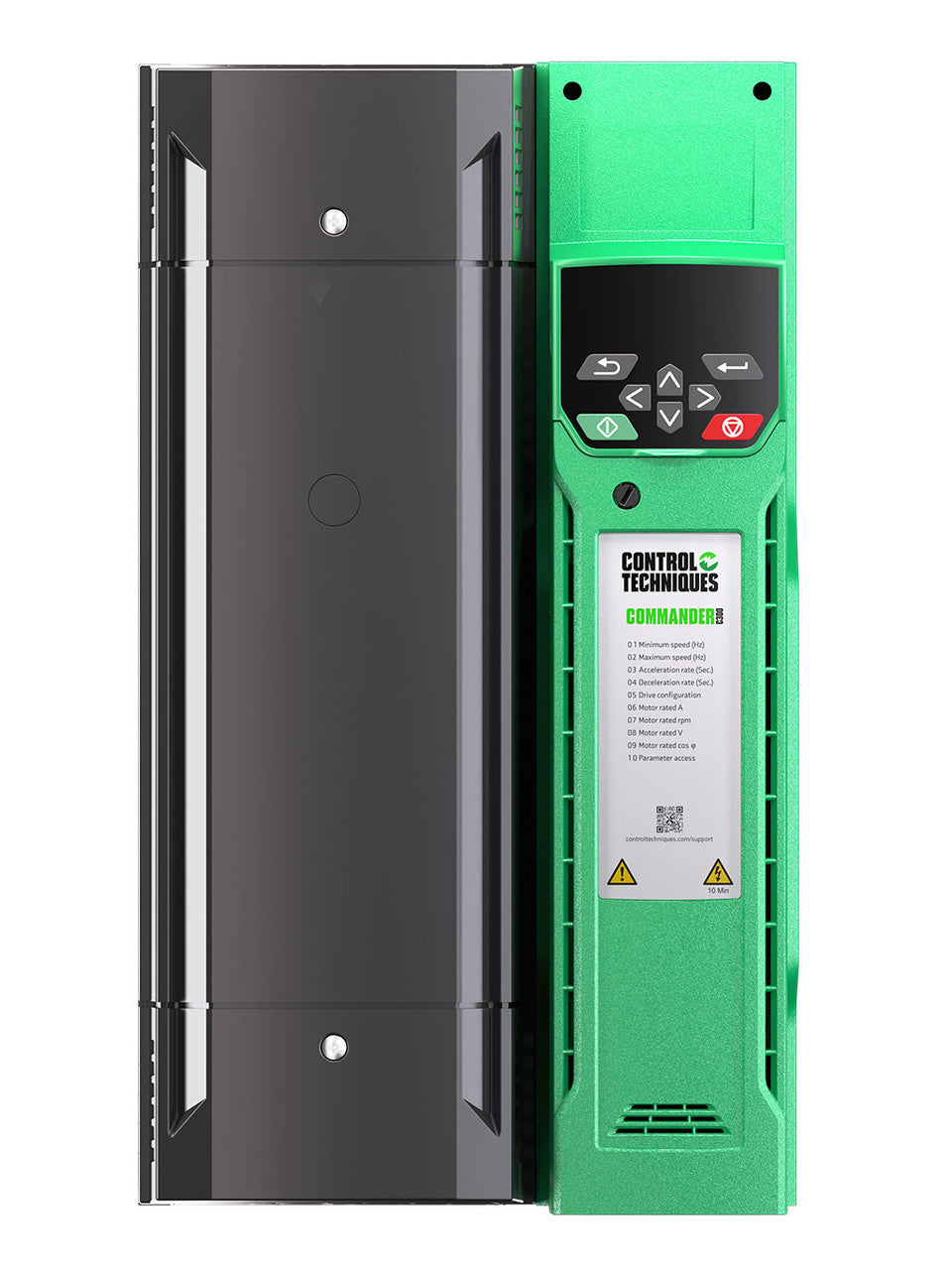

Control Techniques C300-06200330 AC Motor Speed Controller

Product Description

The Control Techniques C300-06200330 is an AC motor speed controller suitable for diverse applications. It allows for open loop vector or V/Hz induction motor control and supports open loop Rotor Flux Control for induction motors (RFC-A). This drive includes dual Safe Torque Off (STO) channels and promotes energy efficiency. Installation is straightforward, making it easy to pair with motors.

• Supports open loop vector or V/Hz induction motor control.
• Includes dual Safe Torque Off (STO) functionality.
• Offers up to one hundred eighty percent overload for high torque applications.

Product Highlights

The C300-06200330 features robust control modes and built-in safety functions.

Product Information

Standard Information

• Manufacturer: Control Techniques
• Part Code: C300-06200330

Technical Specifications

• Input Voltage: 180-264V
• Input Phase: 3
• Output Frequency Range: 0 to 550 Hz
• Horsepower (Max): 15
• Output Current (Max Load): 50
• Enclosure Rating: IP21
• Country of Origin: United Kingdom
• Dimensions: 46 x 30.5 x 29 mm
• Weight: 2084 g
• Control Mode: Open loop vector or V/Hz induction motor control
