Product Description

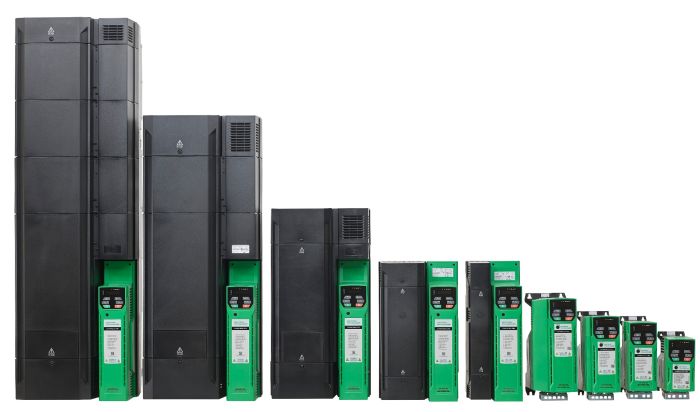

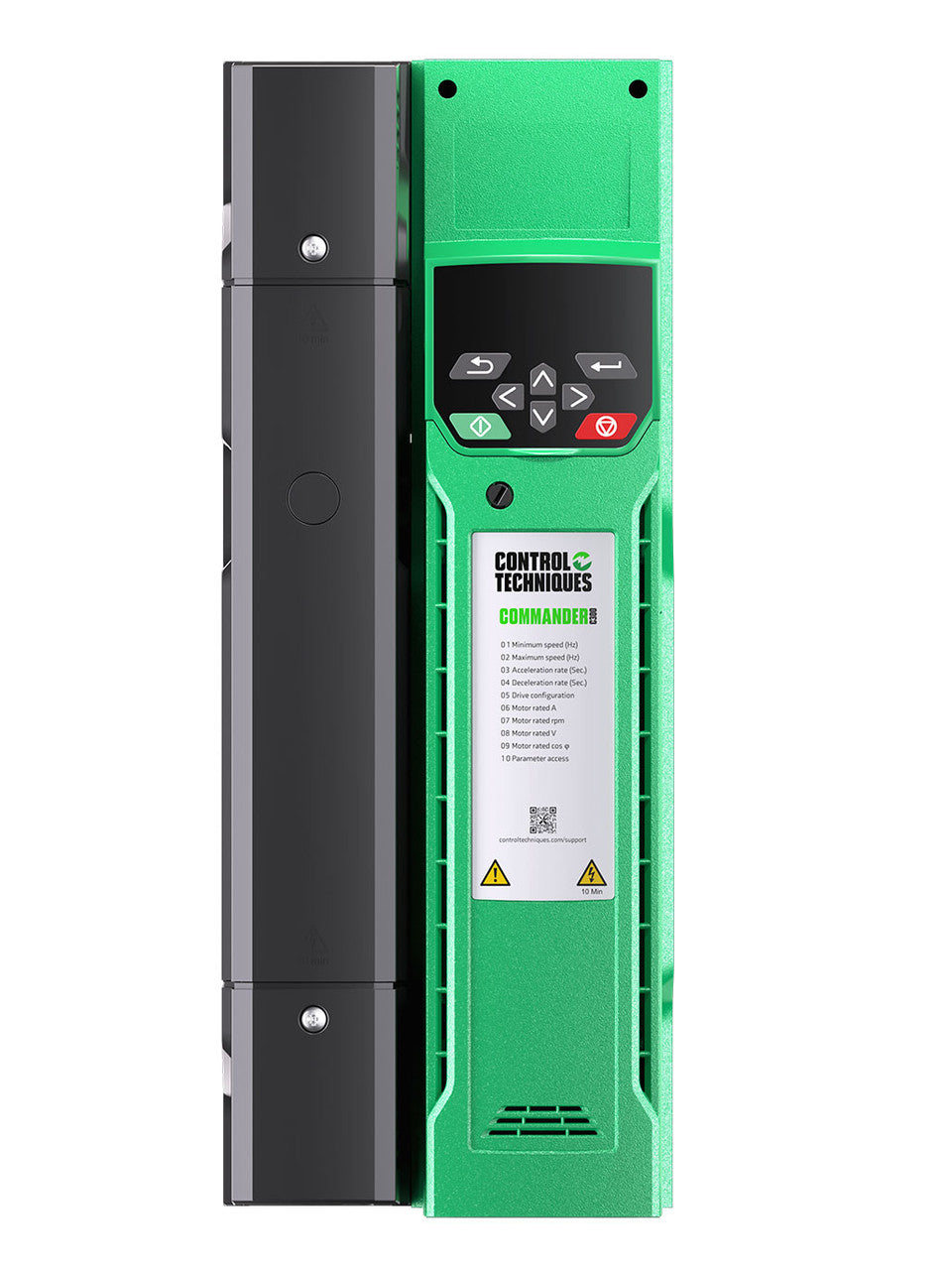

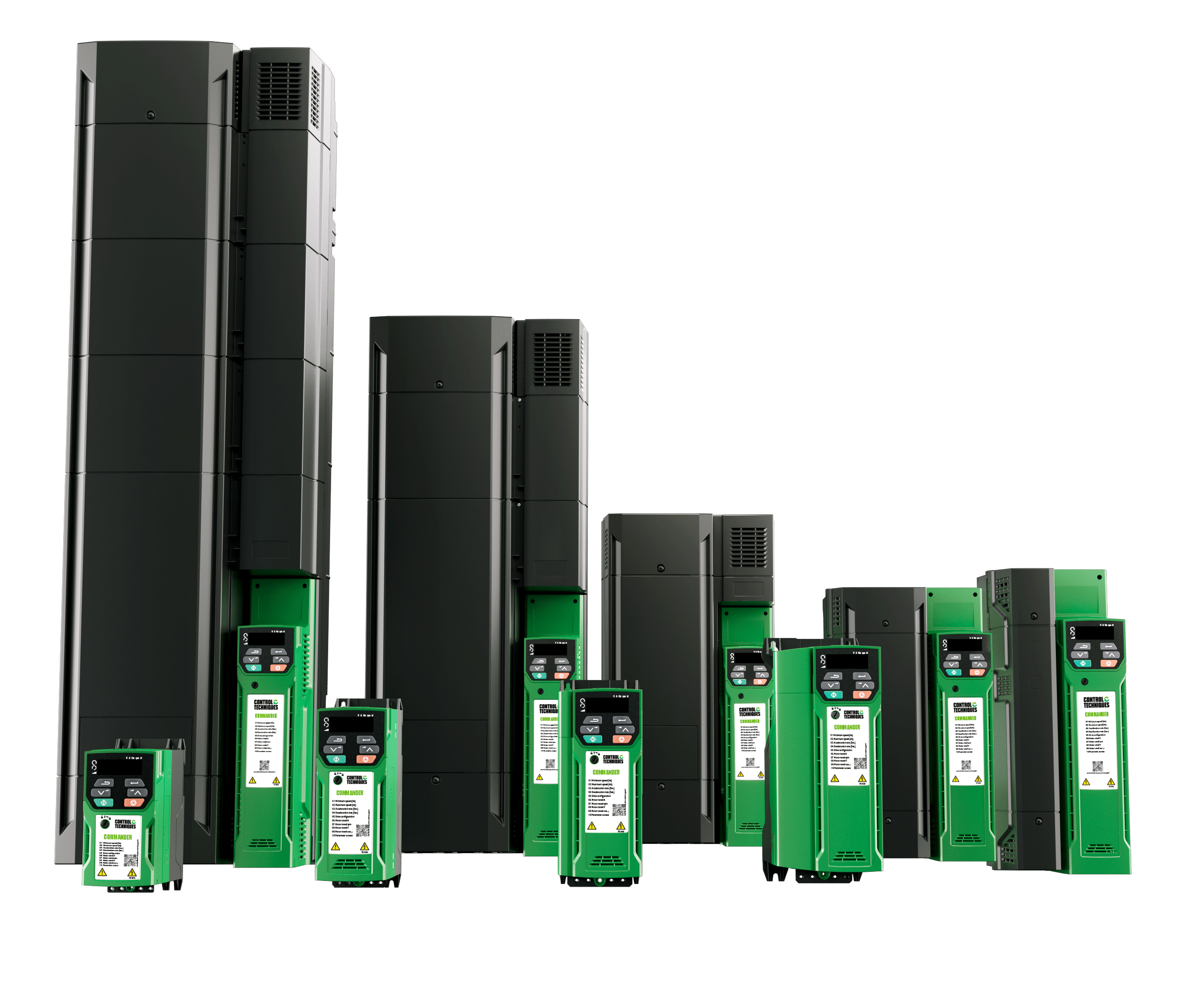

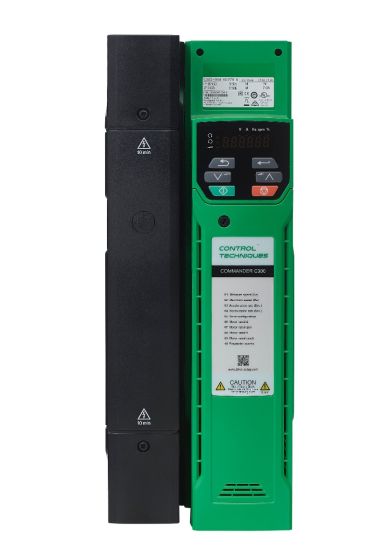

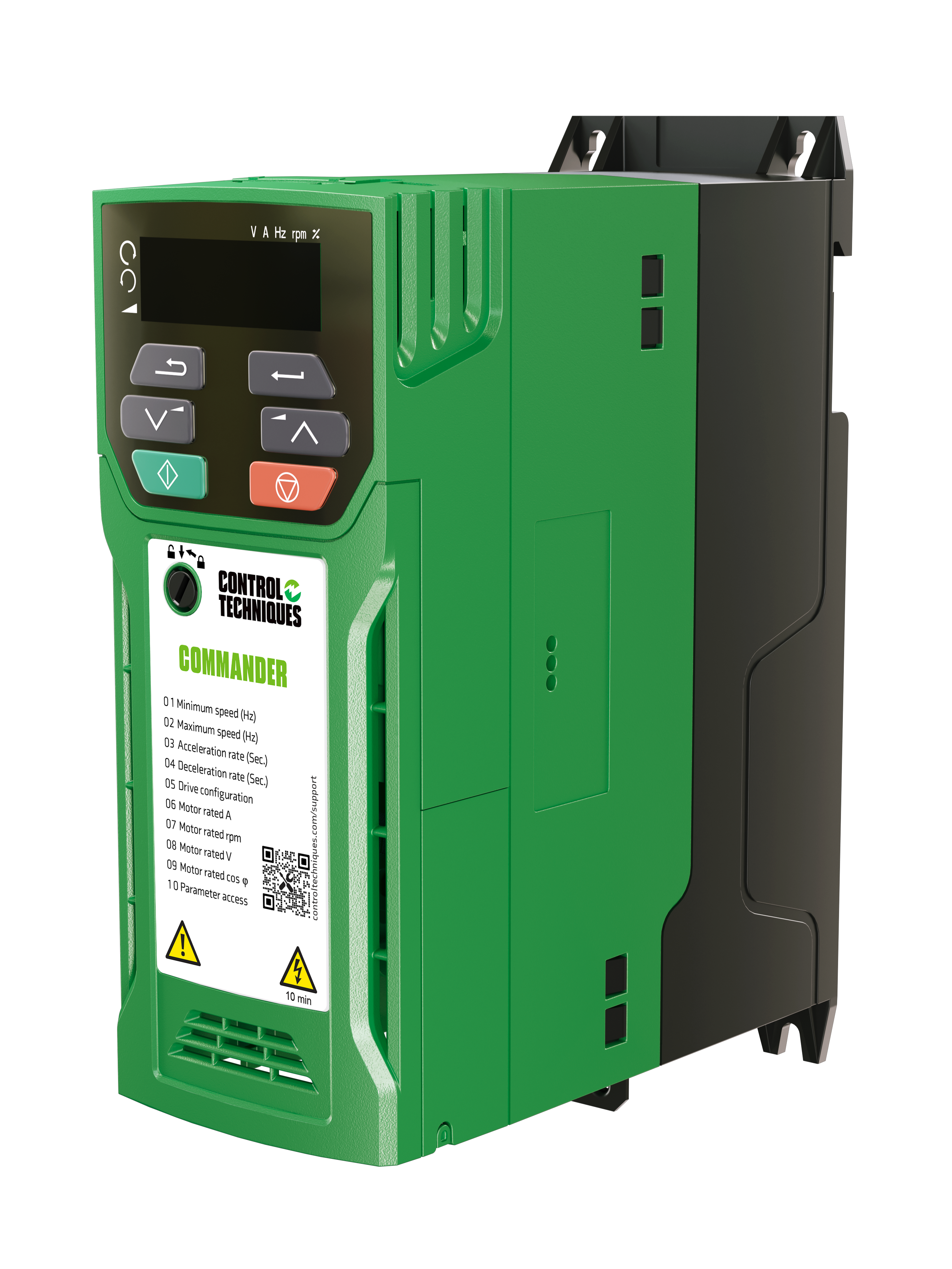

The Control Techniques C300-05400270 is an open-loop AC drive engineered for motor control across many applications. Accepting a three-phase four hundred sixty VAC input, it delivers three-phase four hundred sixty VAC output. This drive integrates dual safe torque off (STO) channels for added safety. It is effective for both normal and heavy-duty operations, with specified overload capacities. This unit allows for simple setup and installation.
- Open Loop AC Drive featuring dual safe torque off channels
- Versatile usage in normal and heavy-duty applications
- Designed for efficient installation and commissioning
Product Highlights
The C300-05400270 excels in various environments, ensuring effective motor control with comprehensive safety features.
Product Information
Standard Information
-
Brand: Control Techniques
-
MPN: C300-05400270
Technical Specifications
-
Input Voltage: 380 to 480 Vac ±10%
-
Output Voltage: 0 to input
-
Input Phases: 3
-
Output Phases: 3
-
Power: 11kW
-
Power HP: 15
-
Output Current: 27 Amps
-
Input Current: 26 A
-
Enclosure Rating: IP20, NEMA 1 conduit kits available
-
Width: 143 mm
-
Height: 391 mm
-
Depth: 192 mm
-
Frame Size: 5
-
Overload: 150%
-
Duty: Heavy
-
Dynamic Braking: Yes
-
Weight: 7.4 kg
-
Control Type: V/f, Open loop vector, RFC-A
-
Input Frequency: 45 to 66 Hz
-
Output Frequency: 0 to 550 Hz
-
Max Temperature: 40 deg C
-
Digital Inputs: 4
-
Digital Outputs: 1
-
Analogue Inputs: 2
-
Analogue Outputs: 1
-
Output relay(s): 1
-
Serial Comms: With option module
-
Approvals: CE, UL
-
Control Mode: Open loop vector or V / Hz induction motor control
-
Ambient Operating Temperature: -20 °C to 40 °C (-4 °F to 104 °F) @ 3 kHz switching frequency | Operation to 55 °C (131 °F) with de-rating
-
Cooling Method: Forced convection
-
Humidity: 95% non-condensing at 40 °C (104 °F)
-
Storage Temperature: -40 °C to 55 °C (-40 °F to 131 °F) - 24 months Max.
-
Altitude: De-rate the continuous output current by 1% for every 100 m above 1000 m to a maximum of 3000 m
-
Vibration: Tested per IEC 60068-2-64 and IEC 60068-2-6
-
Mechanical Shock: Tested per IEC 60068-2-27 and IEC 60068-2-29
-
Electromagnetic Capability: IEC/ EN 61800-3 Immunity and Emissions
-
RoHS: Complies with the Restriction of Hazardous Substances Directive (2011/65/EU)
-
Maximum Supply Imbalance: 2% negative phase sequence, 3% voltage imbalance between phases
-
Input Displacement Power Factor: 0.97
-
Switching Frequency: 2, 3, 4, 6, 8, 12 & 16 kHz
-
Output Frequency Range: 0 to 550 Hz
-
Frequency Accuracy: ±0.02% of full scale
-
Frequency Resolution: 0.01 Hz
-
Braking: Dynamic braking transistor included, requires external resistor
-
DC Bus Undervoltage Trip: 330 Vdc
-
DC Bus Overvoltage Trip: 830 Vdc
-
Drive Overload Trip: Programmable settings available
-
Short Circuit Trip: Protects against output phase-to-phase fault
-
Ground Fault Trip: Protects against output phase-to-ground fault
-
Motor Thermal Trip: Protects motor from overheating
-
Commodity Code: 8504408490
-
Country of Origin: United Kingdom
