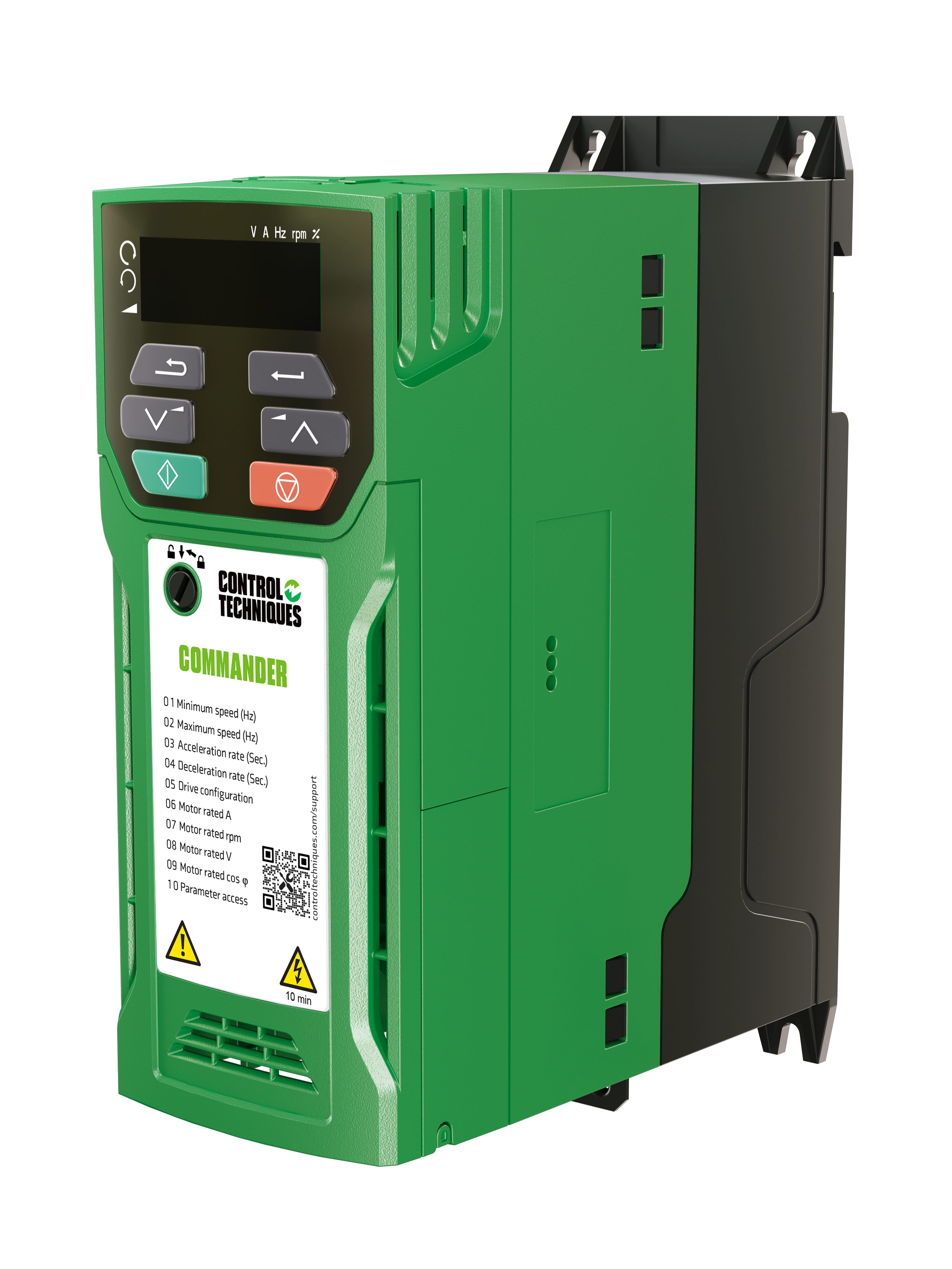

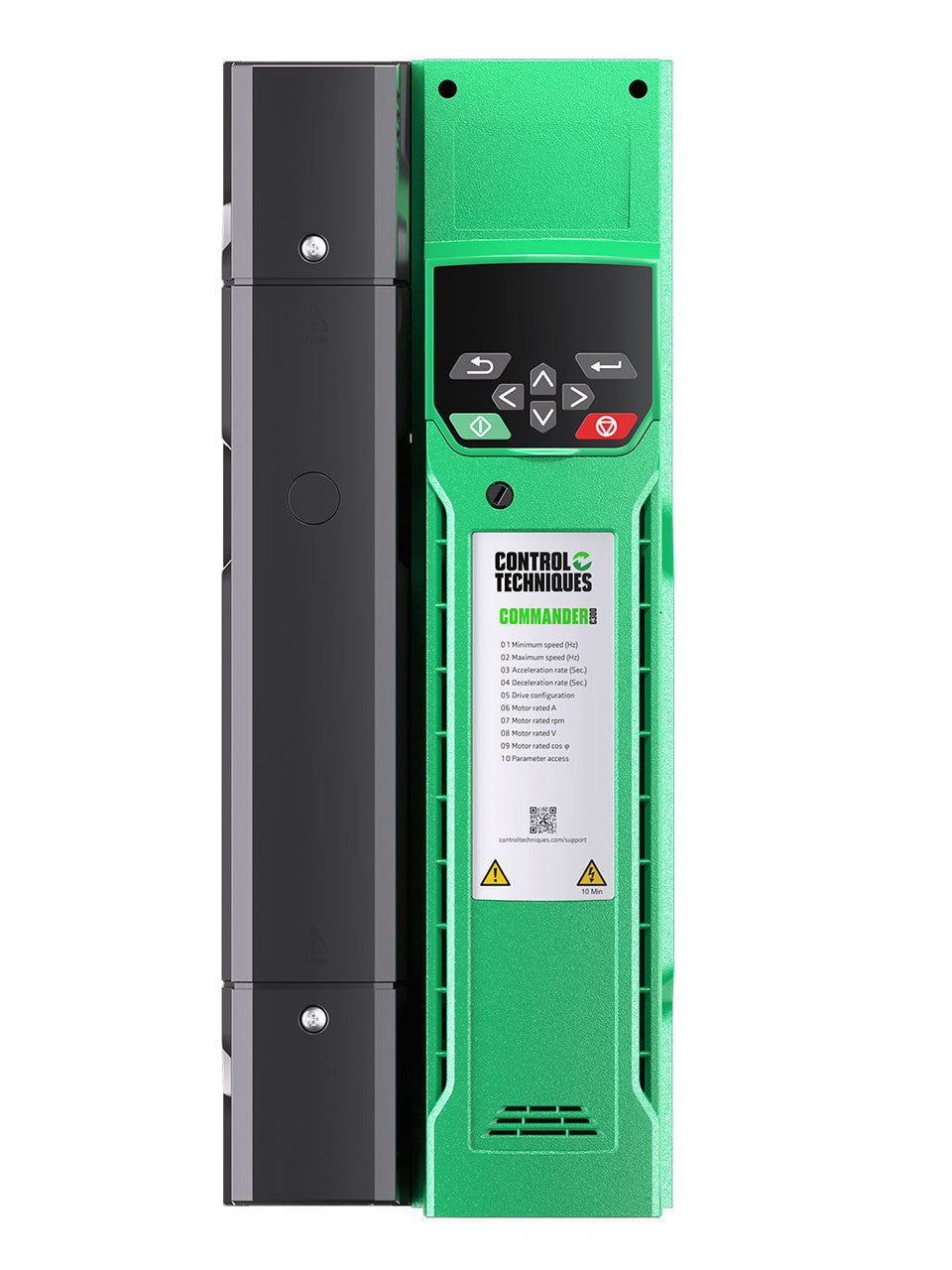

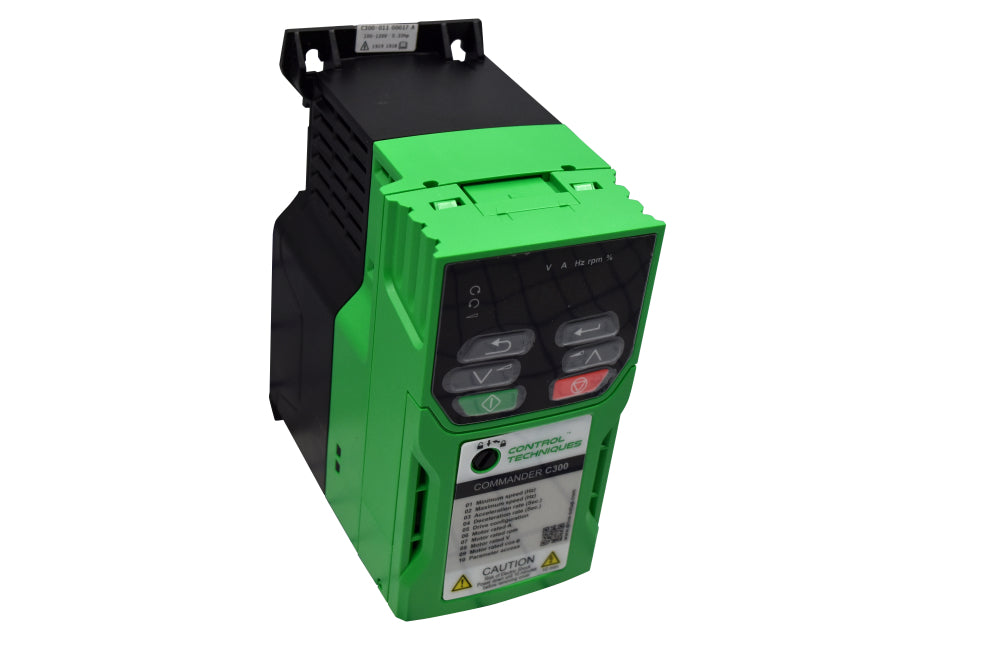

CONTROL TECHNIQUES C300-05200250 AC Drive 230VAC 3-Phase

Product Description

The CONTROL TECHNIQUES C300-05200250 is an open-loop AC drive for motor control. It accepts a three-phase 230VAC input and gives a three-phase 230VAC output. This drive includes dual safe torque off channels and is effective for both normal and heavy-duty applications. It supports open-loop vector and V/Hz induction motor control, along with Rotor Flux Control for induction motors (RFC-A).

• Dual Safe Torque Off channels provided.
• Designed for 230VAC three-phase input and output.
• Effective for normal and heavy-duty applications.

Product Highlights

This drive is suitable for various operational requirements, thanks to its robust design and multiple control methods. Ideal for industrial tasks demanding reliability and precision.

Product Information

Standard Information

• Manufacturer: Control Techniques

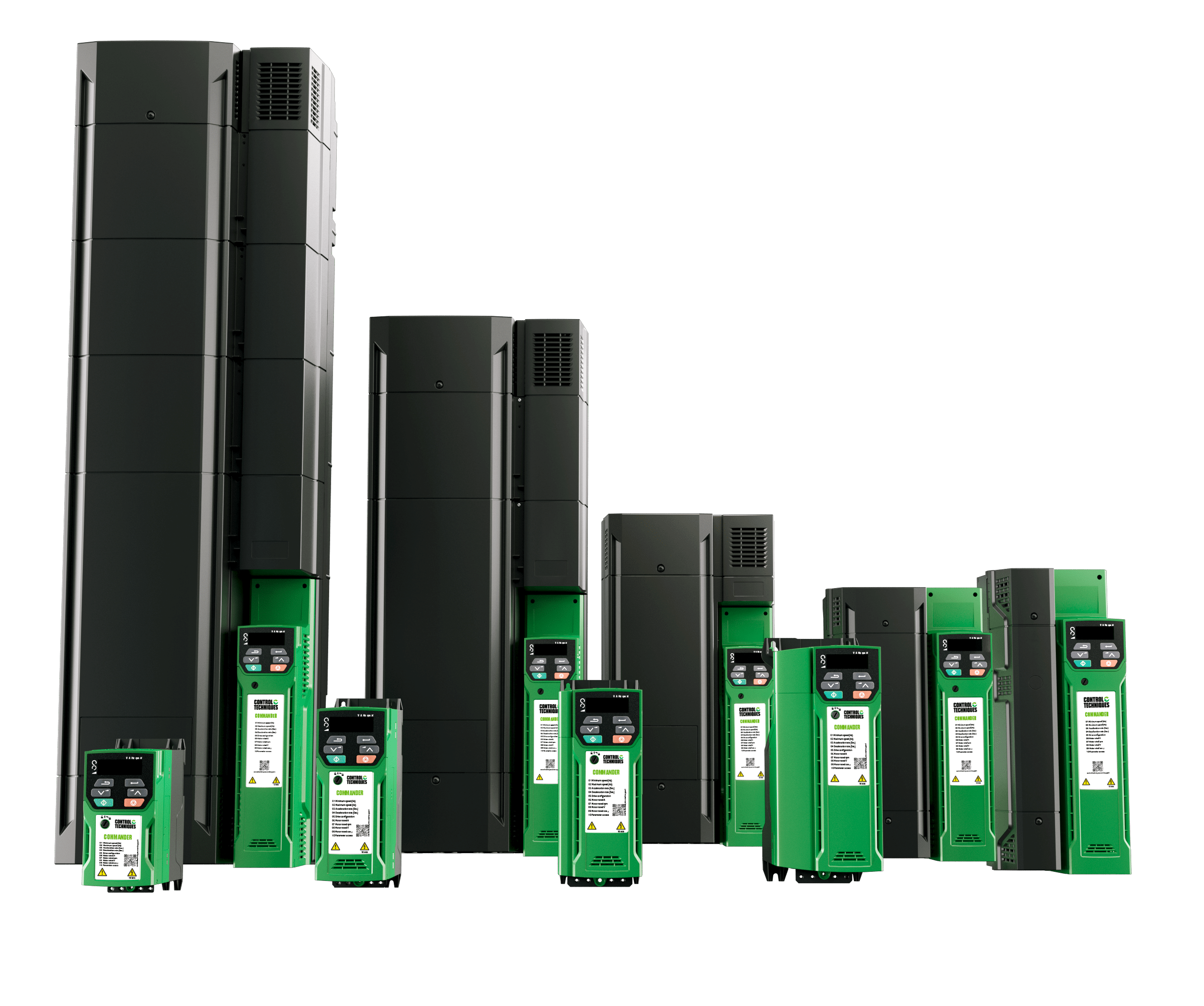

• Product Range: Commander C300

Technical Specifications

• Input Voltage: 180-264V
• Output Current: 30 Amps (Max Load)
• Dimensions: 48 x 21.5 x 24.5 mm
• Weight: 1291 Kg
• Operating Temperature: -20°C to 40°C
• Cooling Method: Forced convection
• Enclosure Rating: IP20
• Frequency Range: 0 to 550 Hz
