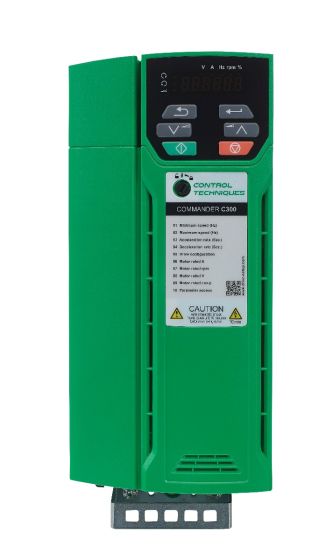

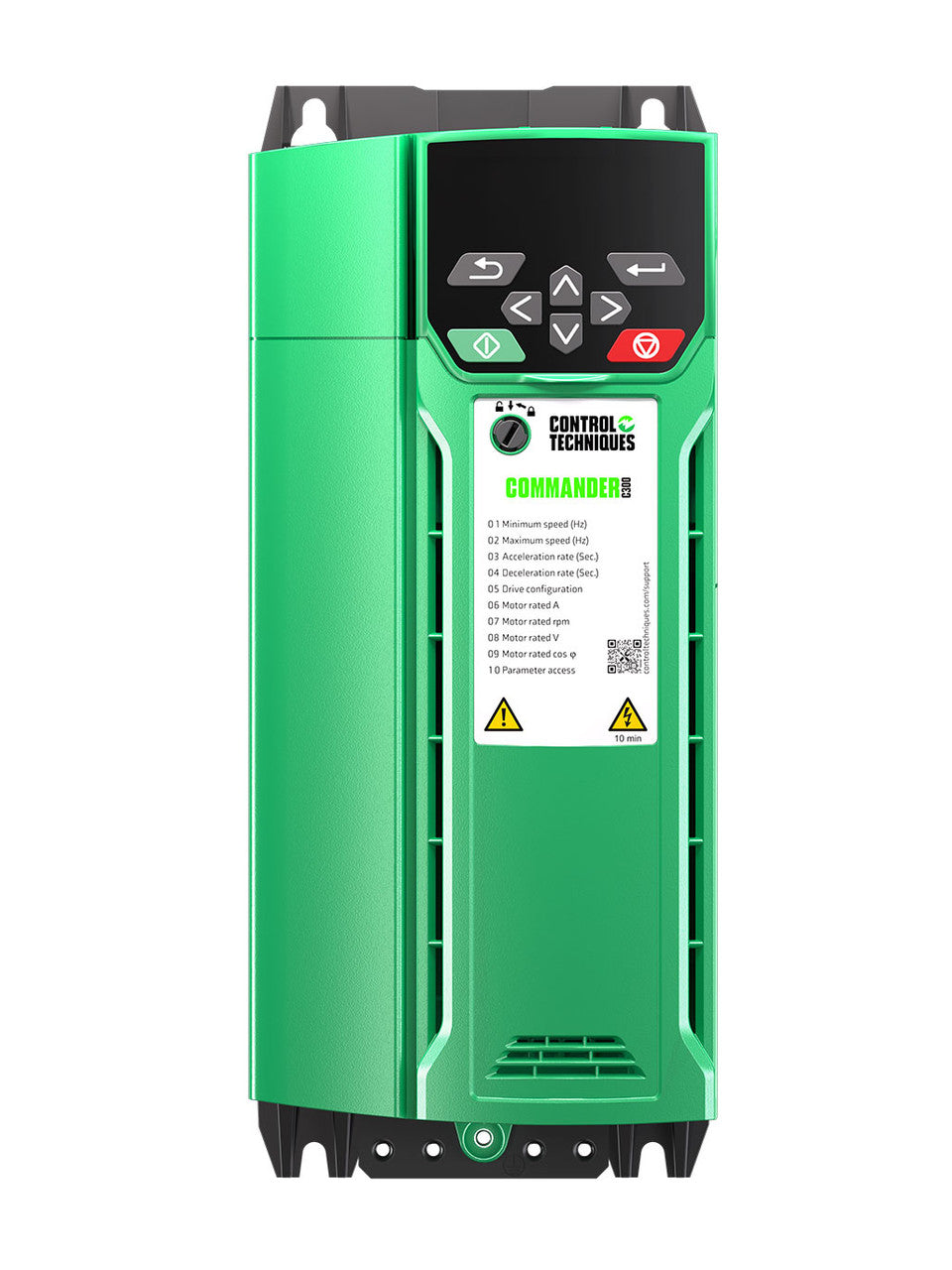

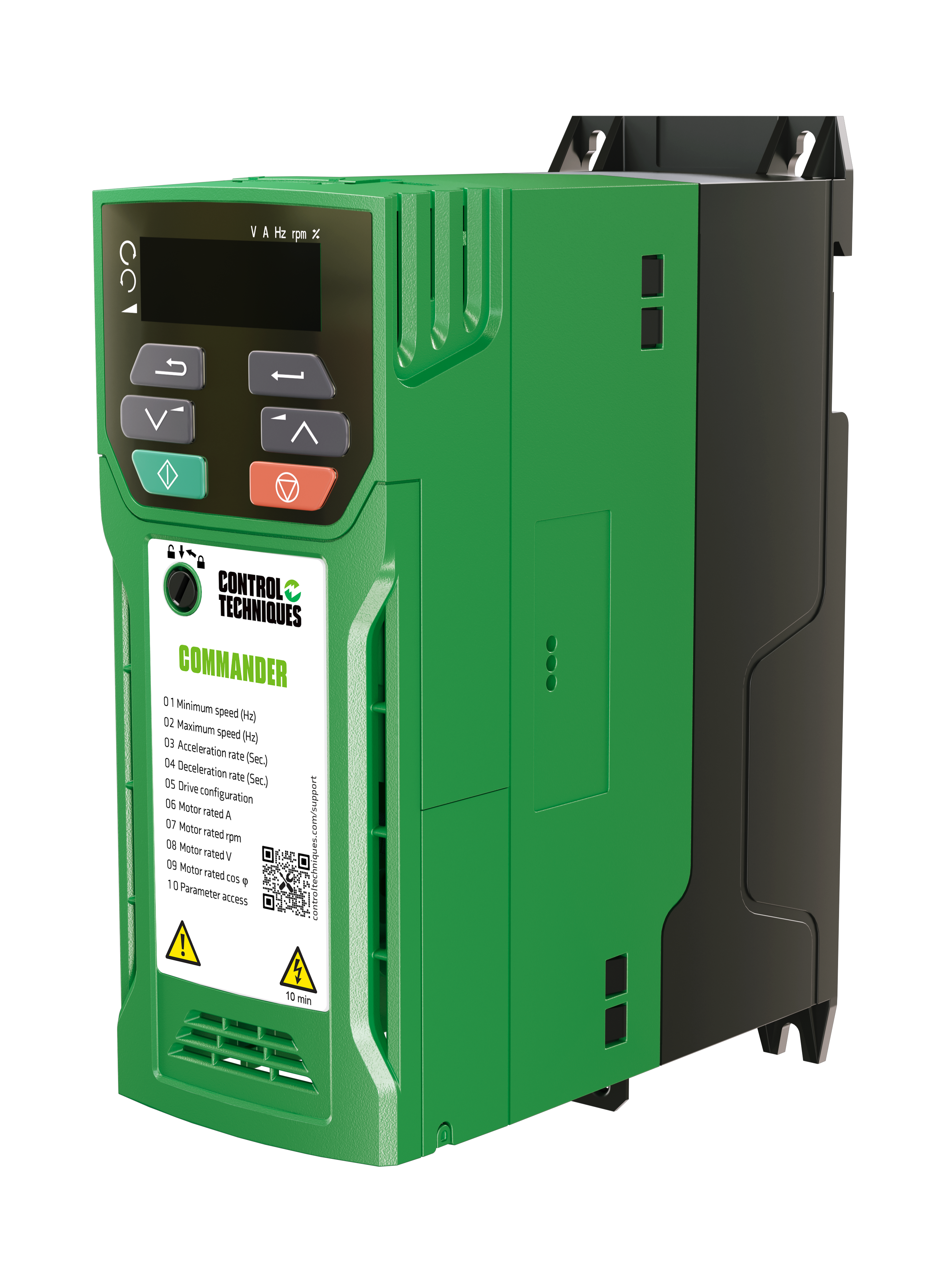

Control Techniques C300-04400170 AC Drive

Product Description

The Control Techniques C300-04400170 is an AC drive used for controlling motors in various applications. This unit takes a three-phase AC input and provides a three-phase AC output to manage motor speed effectively. It includes dual safe torque off channels for enhanced safety and supports plug-in options for advanced features, making installation simple.

• Open loop vector or V / Hz induction motor control
• Dynamic braking transistor included; requires external resistor
• Designed for straightforward installation and commissioning

Product Highlights

This AC drive is suitable for various industrial applications, ensuring efficient motor control and safety features.

Product Information

Standard Information

• Manufacturer: Control Techniques
• Model: C300-04400170A10101AB100

Technical Specifications

• Weight: 3.13 kg
• Dimensions: 35 x 17 x 21.5 mm
• Input Voltage: 380 to 480 Vac ±10%
• Rated Voltage: 460 V
• Rated Current: 18.5 A
• Output Frequency: 0 to 550 Hz
• Input Frequency: 45 to 66 Hz
• Phase: 3 Phase
• Power Rating: 10 HP
• Cooling Method: Forced convection
• Temperature Range: -20°C to 40°C (operational) / -40°C to 60°C (storage)
• Vibration Test: IEC 60068-2-64
• Enclosure Rating: IP20
• Dynamic Braking: Yes
