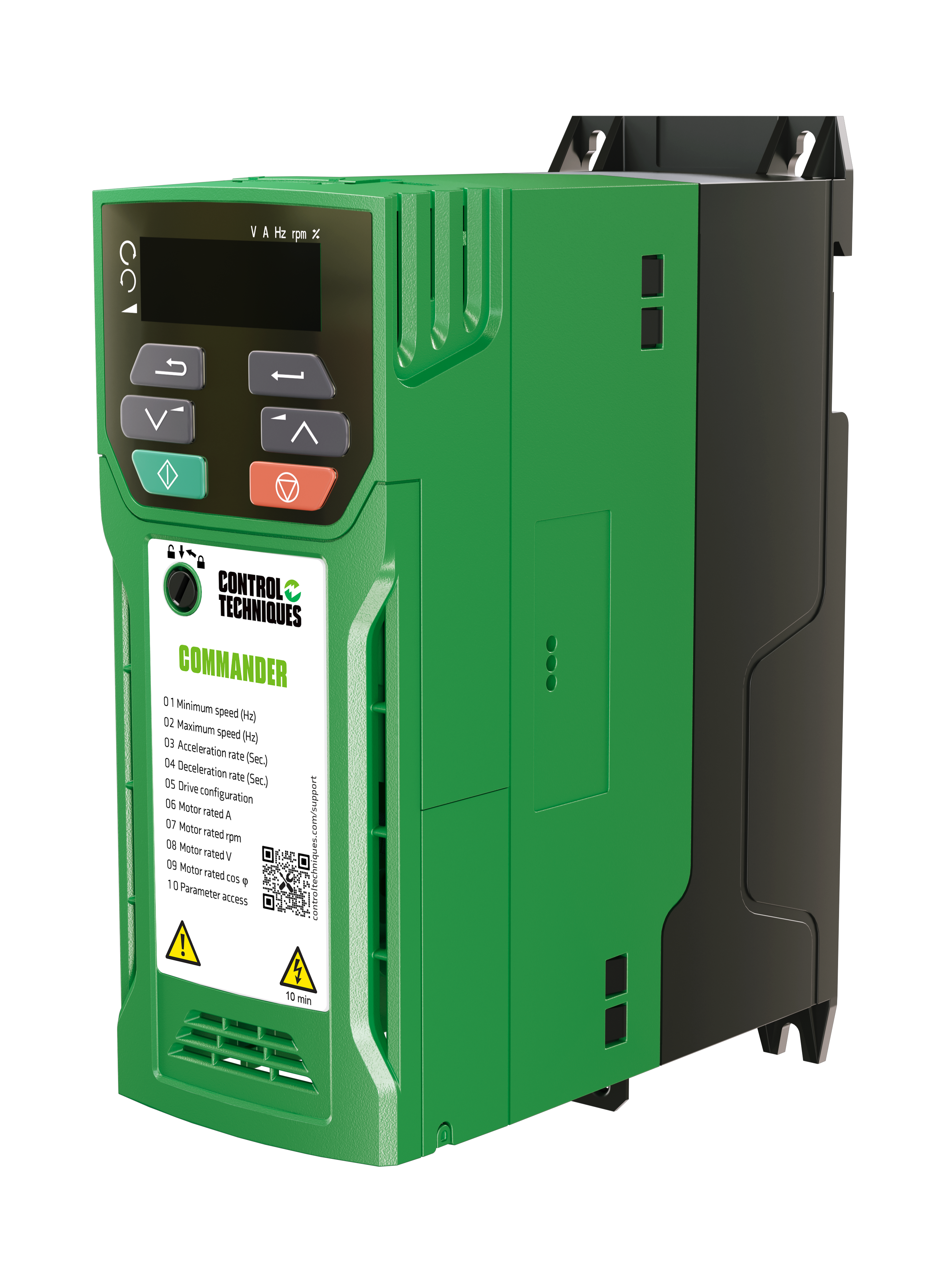

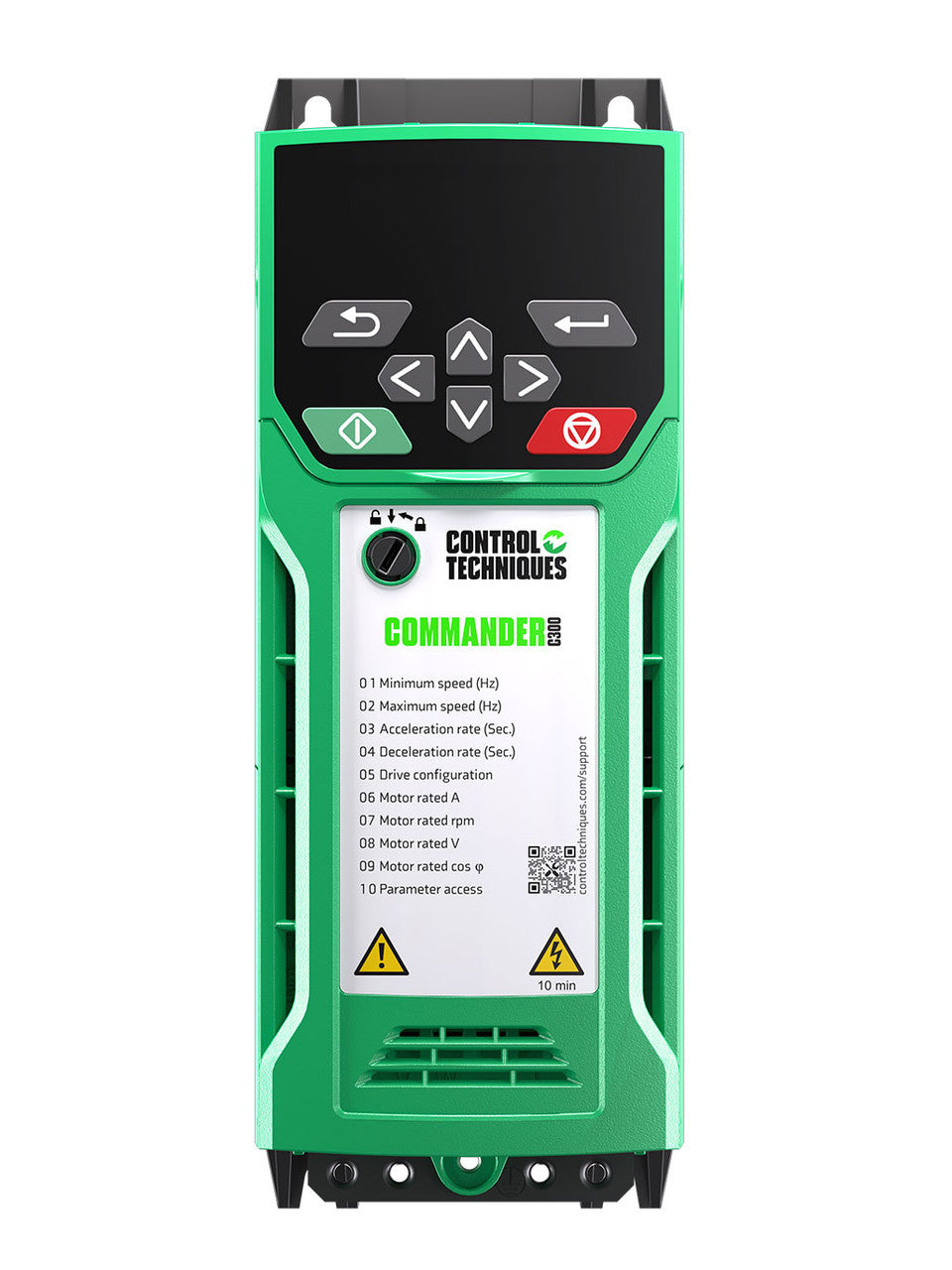

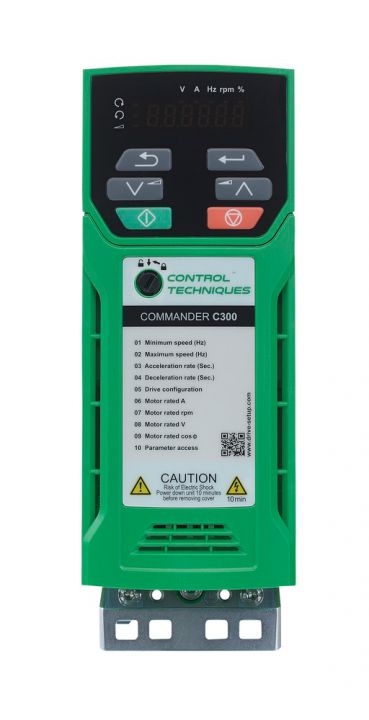

Control Techniques C300-02200075 AC Drive

Product Description

The Control Techniques C300-02200075 is an AC drive made for motor control. It allows for open loop vector or V/Hz induction motor control and open loop Rotor Flux Control for induction motors. This drive has dual safe torque off channels and works in many applications. It is easy to install and set up.

• Dual Safe Torque Off (STO) function included
• IP20 enclosure rating
• Complies with RoHS (2011/65/EU)

Product Highlights

Product Information

Standard Information

• Manufacturer: Control Techniques
• Part Code: C300-02200075

Technical Specifications

• Product Range: Commander C300
• Status: Current
• Country of Origin: United Kingdom
• Dimensions: 26.5 x 14 x 21.5 mm
• Weight: 382 kg
• Control Mode: Open loop vector or V / Hz induction motor control
• Operating Temperature: -20°C to 40°C (-4°F to 104°F)
• Cooling Method: Forced convection
• Input Voltage: 200 to 240 Vac ±10%
• Rated Voltage: 230 V
• Horsepower Rating: 2 HP
• Rated Amps: 7.5 A
• Output Voltage: 230 V
• Height: 7.09 in
• Width: 3.43 in
• Depth: 6.77 in
