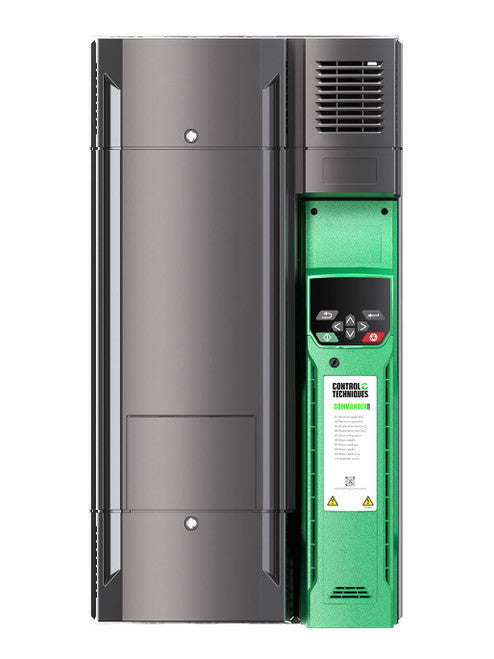

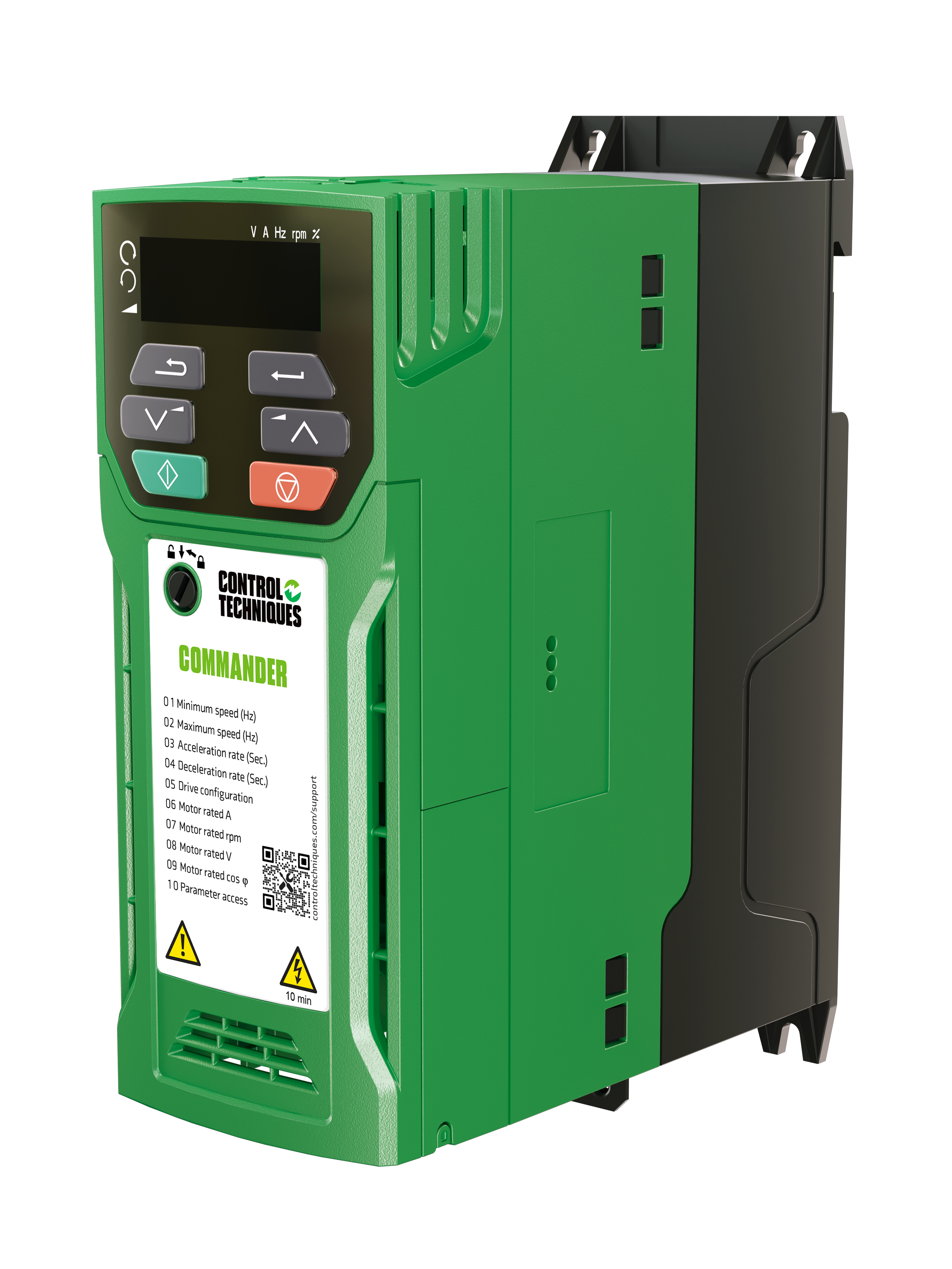

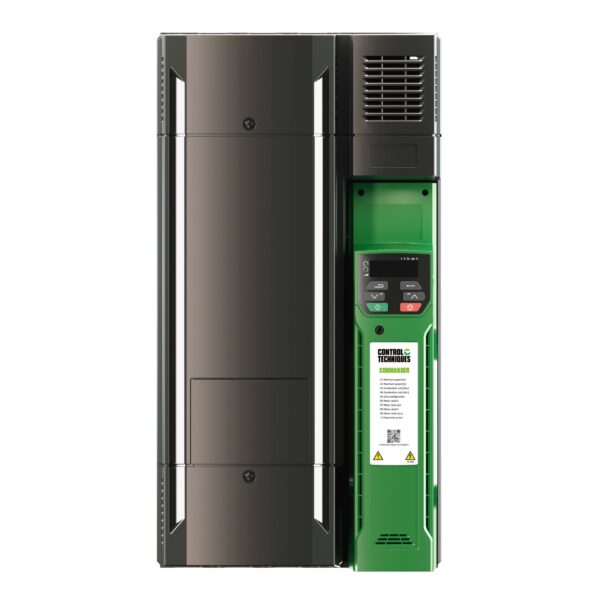

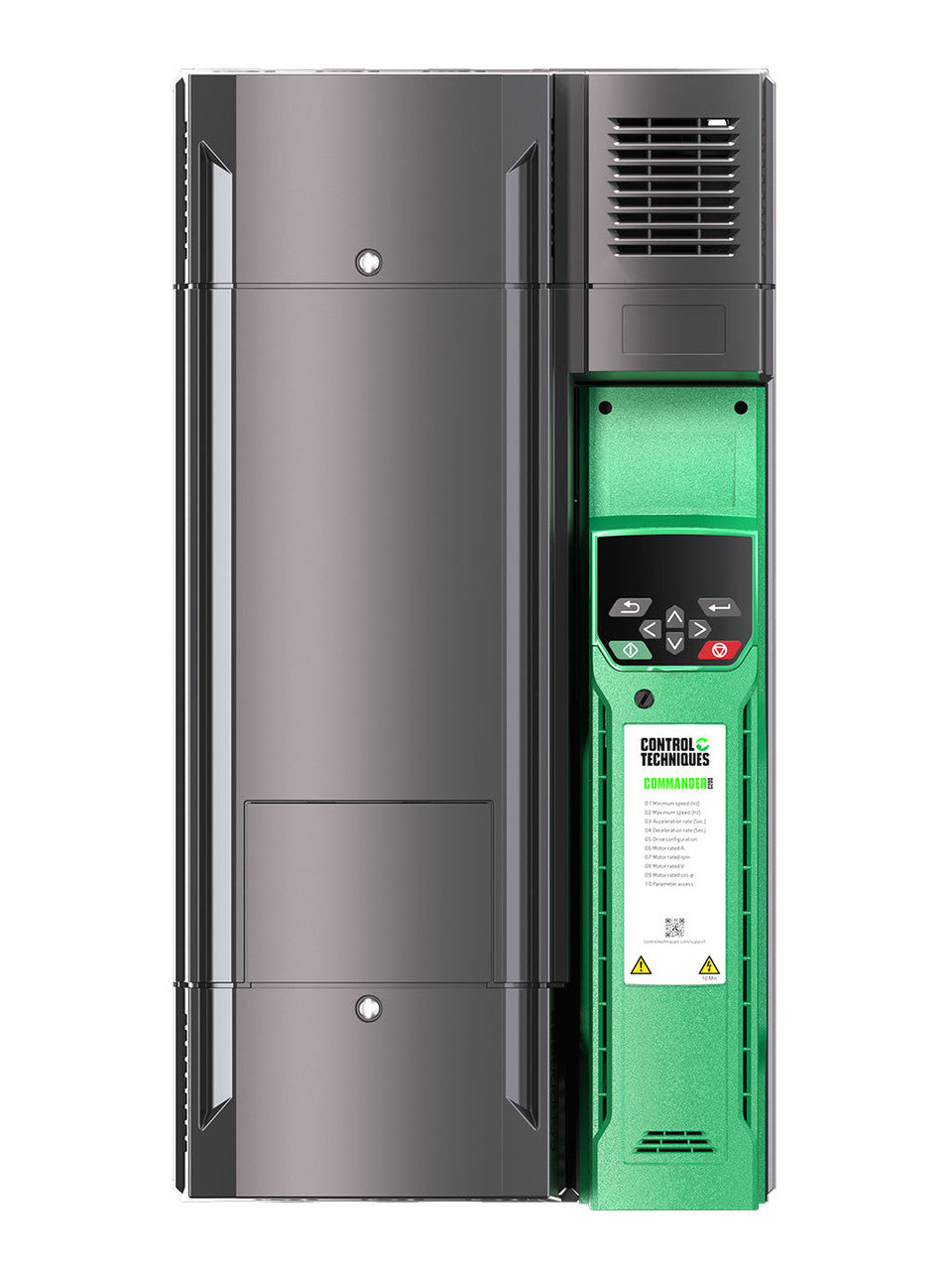

CONTROL TECHNIQUES C200-07200750 Commander C200 AC Drive

Product Description

The Control Techniques C200-07200750 is a Commander C200 series open-loop drive designed for motor control. This drive supports normal and heavy-duty applications with overload capabilities. It accepts a three-phase 230VAC input and provides a three-phase 230VAC output. It is suitable for controlling AC motors across various applications and offers straightforward installation and commissioning.

• Designed for open-loop vector or V/Hz induction motor control.
• Features dual safe torque off (STO).
• Offers up to 180% overload for high torque applications.

Product Highlights

This drive is efficient for both light and heavy applications, providing versatility and reliability in motor control.

Product Information

Standard Information

• Manufacturer: Control Techniques
• Part Number: C200-07200750

Technical Specifications

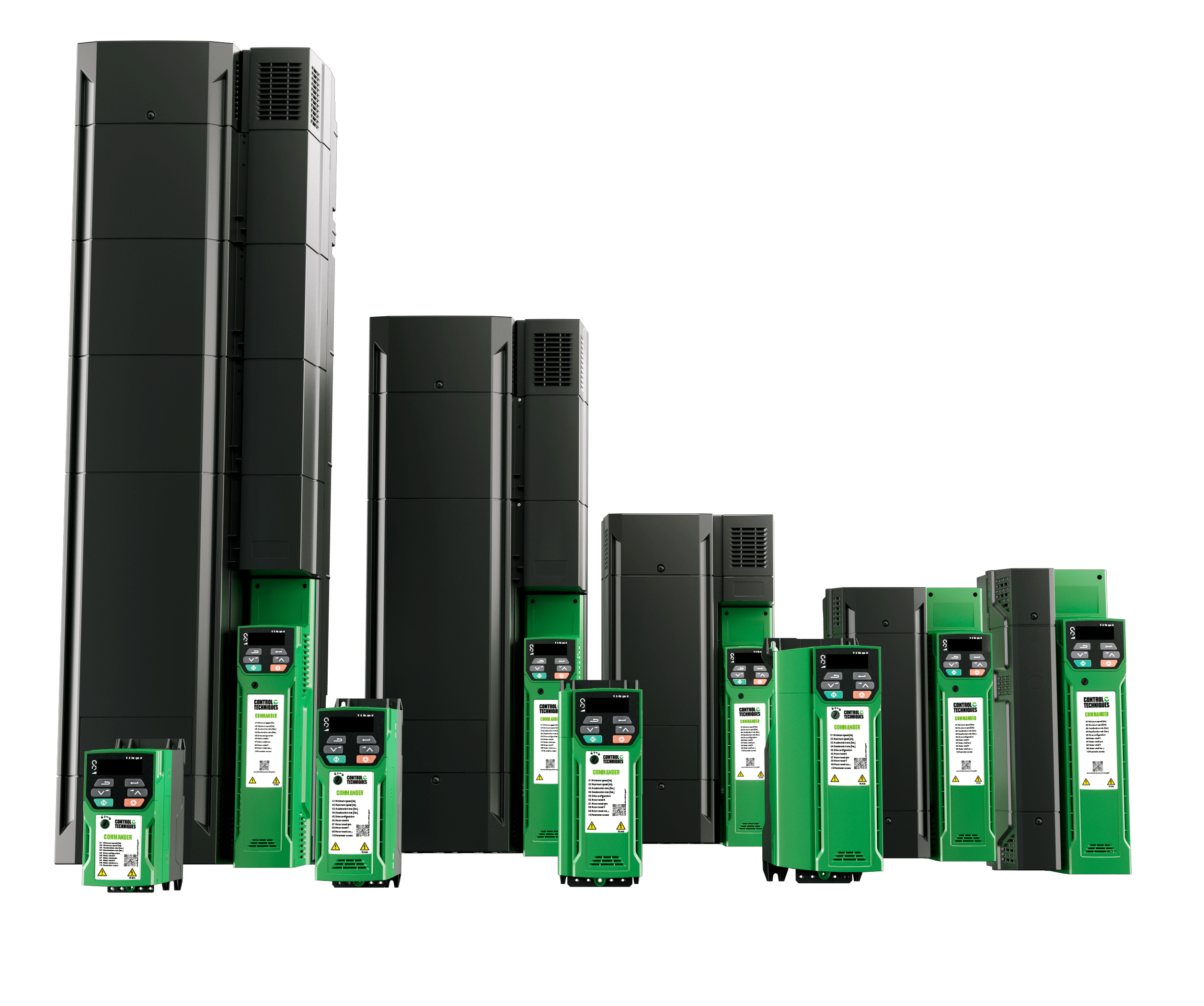

• Product Range: Commander C200
• Status: Current
• Input Voltage: 200 to 240 Vac ±10%
• Input Frequency: 45 to 66 Hz
• Output Frequency Range: 0 to 550 Hz
• Phase: 3-Phase
• Control Mode: Open loop vector or V/Hz induction motor control
• Enclosure Rating: IP20
• Operating Temperature: -20°C to 40°C
• Storage Temperature: -40°C to 60°C
• Humidity: 95% non-condensing at 40°C
• Cooling Method: Forced convection
• Dimensions: 66 x 41 x 41.5 mm
• Weight: 4089 kg
• Certifications: UL, cUL, CE, EU, RCM, ISO, TÜV
