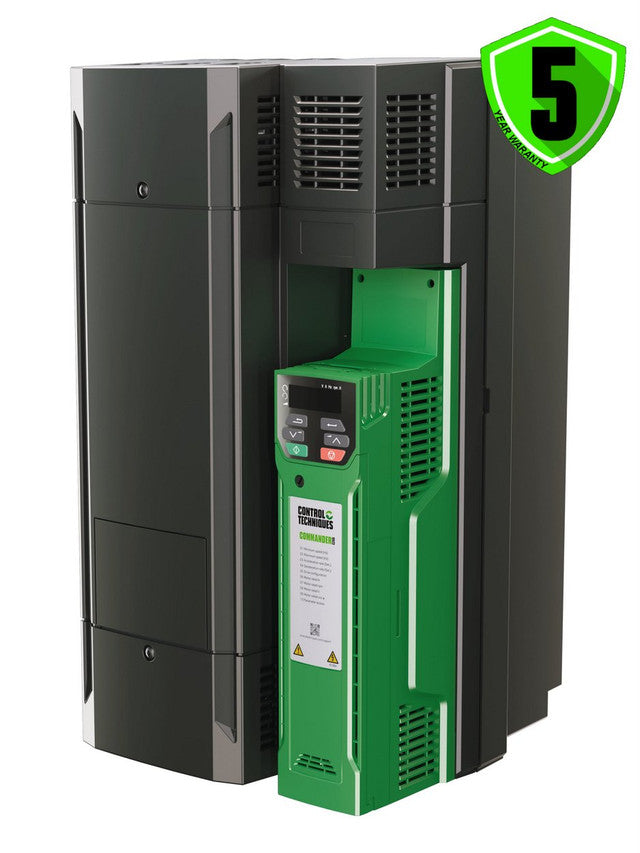

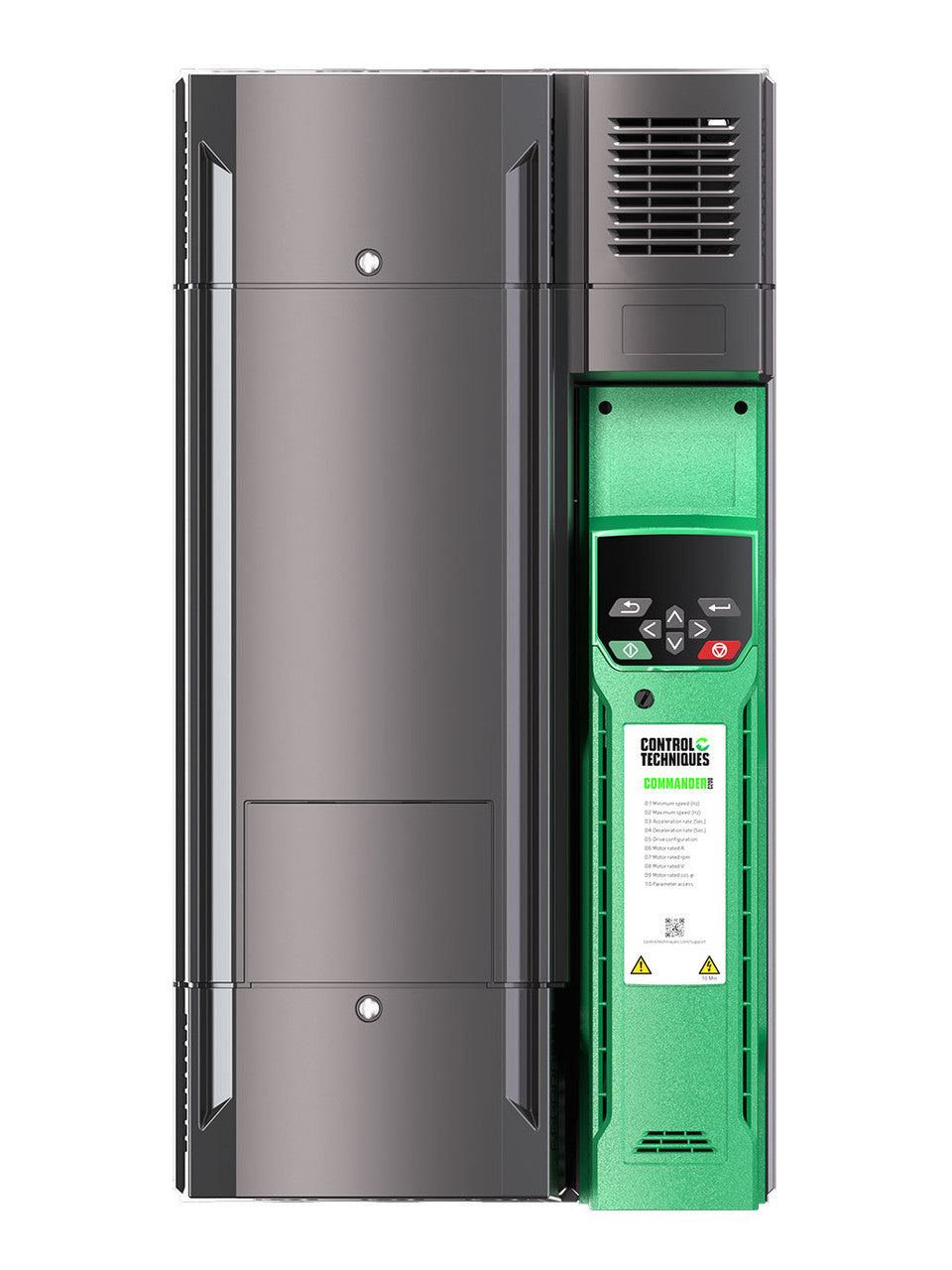

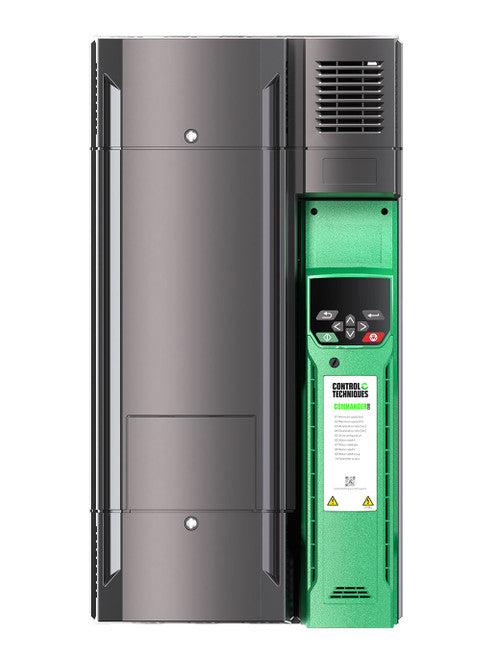

Control Techniques C200-07200610 AC Drive

Product Description

The Control Techniques C200-07200610 is an AC drive for effective motor control. It supports open loop vector control and V/Hz control for three-phase motors. This drive operates at a rated voltage of two hundred thirty volts. It handles normal duty applications up to seventy-five amps or twenty-five horsepower, and heavy duty tasks up to sixty-one amps or twenty horsepower.

• Rated for two hundred thirty volts three-phase input and output
• Compatible with Normal Duty (twenty-five horsepower) and Heavy Duty (twenty horsepower) applications
• Includes a dynamic braking transistor; an external resistor is required

Product Highlights

This AC drive provides control over motor speeds and can adapt to various applications, ensuring efficient performance in operations.

Product Information

Standard Information

• Brand: Control Techniques
• Manufacturer Part Number: C200-07200610

Technical Specifications

• Rated Horsepower: 20 HP, 25 HP
• Rated Current: 61 A, 75 A
• Rated Voltage: 230 V
• Input Voltage: 200 to 240 Vac ±10%
• Input Frequency: 45 to 66 Hz
• Output Voltage: 230 V
• Phase: 3 Phase Input - 3 Phase Output
• Enclosure Rating: IP20
• Height: 11.81 in
• Width: 7.28 in
• Depth: 10.98 in
• Weight: 3455 g
• Ambient Operating Temperature: -20°C to 40°C (-4°F to 104°F)
• Cooling Method: Forced convection
• Vibration: Tested per IEC 60068-2-64
