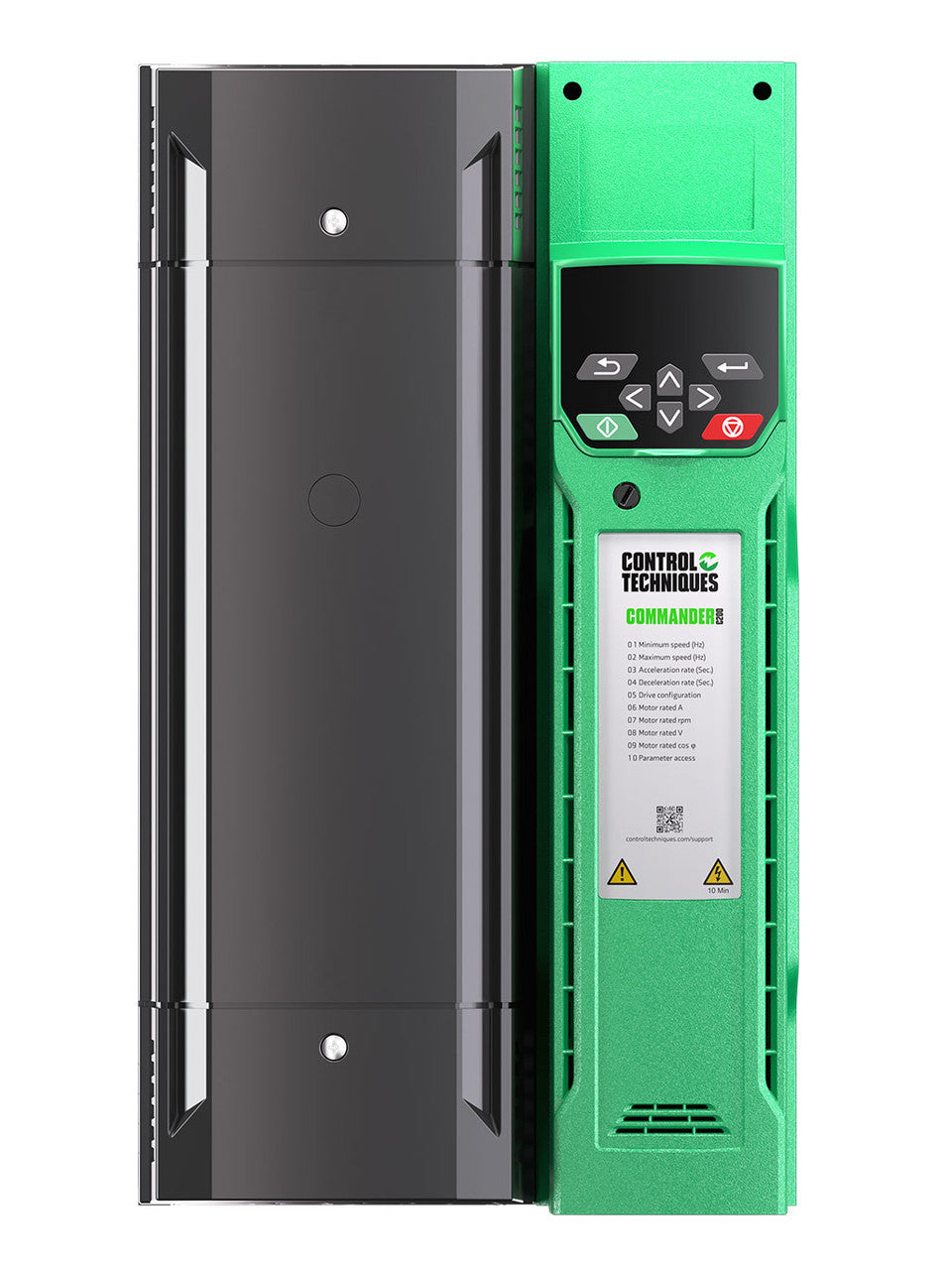

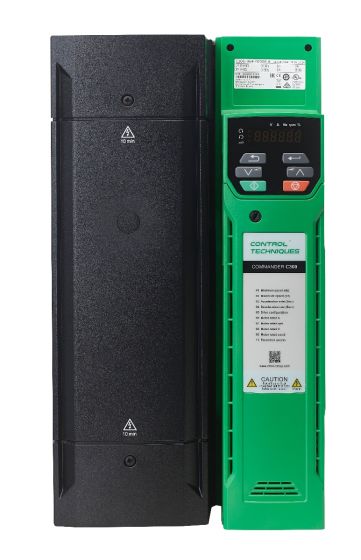

CONTROL TECHNIQUES C200-06400350 AC Drive

Product Description

The CONTROL TECHNIQUES C200-06400350 is an AC drive for motor control, suitable for multiple applications. It provides open loop vector or V/Hz induction motor control and open loop Rotor Flux Control (RFC-A) for induction motors. This drive includes dual Safe Torque Off (STO) and is built for high-torque situations. The installation process is designed to be straightforward.

• Accepts 400V three-phase input and output.
• IP20 enclosure rating for protection.
• Dynamic braking transistor included, needing an external resistor.

Product Highlights

versatile control features include heavy-duty performance and reliable operation.

Product Information

Standard Information

• Brand: CONTROL TECHNIQUES
• MPN: C200-06400350

Technical Specifications

• Rated Power (kW): 15
• Rated Power (HP): 20
• Input Voltage: 380 to 480 Vac
• Output Voltage: 0 to input
• Input Phases: 3
• Output Phases: 3
• Output Current: 35A
• Input Current: 32A
• Enclosure Rating: IP20
• Width: 210 mm
• Height: 389 mm
• Depth: 221 mm
• Frame Size: 6
• Overload: 150%
• Duty: Heavy
• Dynamic Braking: Yes
• Weight: 14 kg
• Control Type: V/f, Open loop vector & RFC-A
• Input Frequency: 45 to 66 Hz
• Output Frequency: 0 to 550 Hz
• Max Temp: 40 degrees C
• Digital Inputs: 4
• Digital Outputs: 1
• Analogue Inputs: 2
• Analogue Outputs: 1
• Output Relays: 1
• Serial Comms: With option module
• Approvals: CE, UL
• Operating Temperature: -20 degrees C to 40 degrees C
• Cooling Method: Forced convection
• Humidity: 95 % non-condensing at 40 degrees C
• Storage Temperature: -40 degrees C to 60 degrees C
