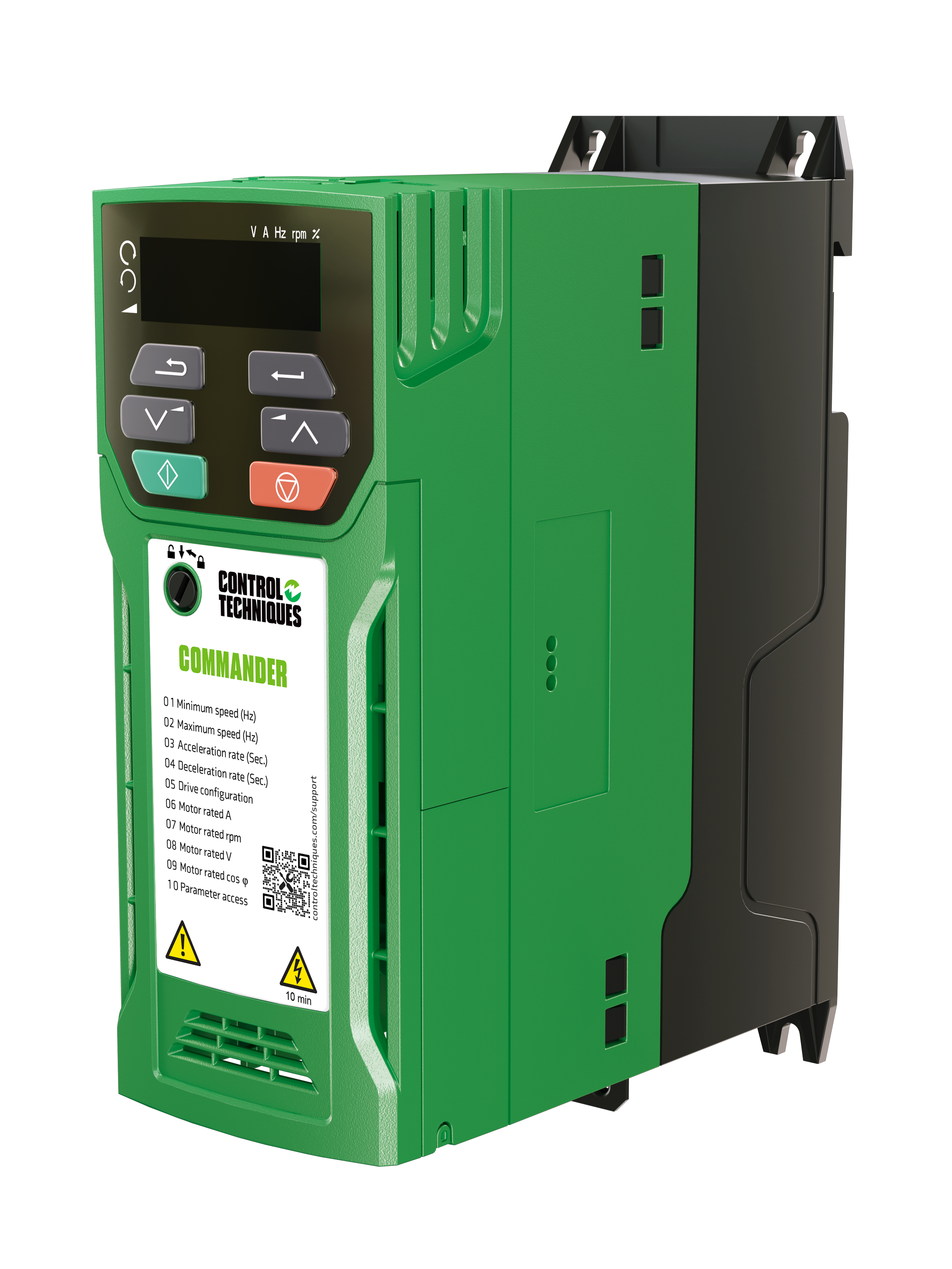

CONTROL TECHNIQUES C200-06200440 AC Motor Speed Controller 11 kW

Product Description

The CONTROL TECHNIQUES Commander C200 is an AC motor speed controller designed for various applications. It supports open loop vector or V/Hz induction motor control, and open loop Rotor Flux Control for induction motors (RFC-A). This drive is designed for straightforward installation and commissioning.

• Supports 200 to 240 Vac ±10% input voltage.
• Suitable for 11 kW power applications.
• Features plug-in options for advanced control.

Product Highlights

The Commander C200 is a solid choice for applications requiring efficient motor control. It simplifies setup and allows customization through accessory options, enhancing control capabilities.

Product Information

Standard Information

• Brand: CONTROL TECHNIQUES
• Series: C200

Technical Specifications

• Input Voltage: 200/240V AC
• Input Phase: 3
• Input Frequency: 45 to 66 Hz
• Output Frequency Range: 0 to 550 Hz
• Power (kW): 11
• Power (HP): 15
• Cooling Method: Forced convection
• Vibration: Tested in accordance with IEC 60068-2-64 and IEC 60068-2-6
• Enclosure Rating: IP20, NEMA 1 conduit kits available
