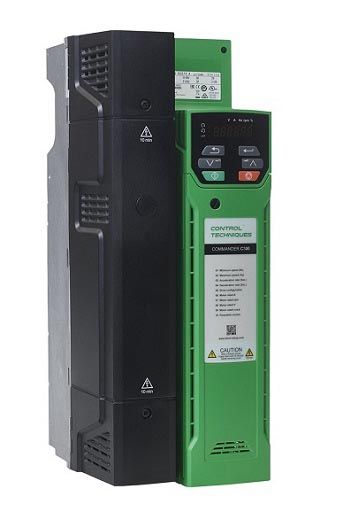

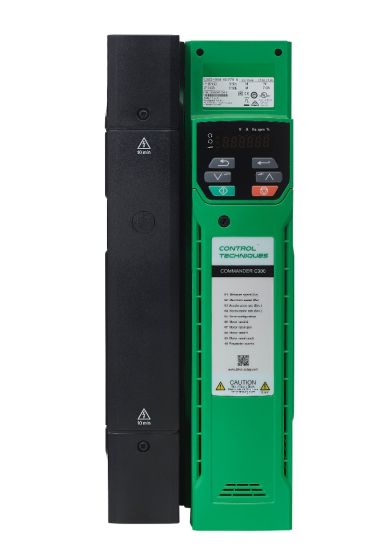

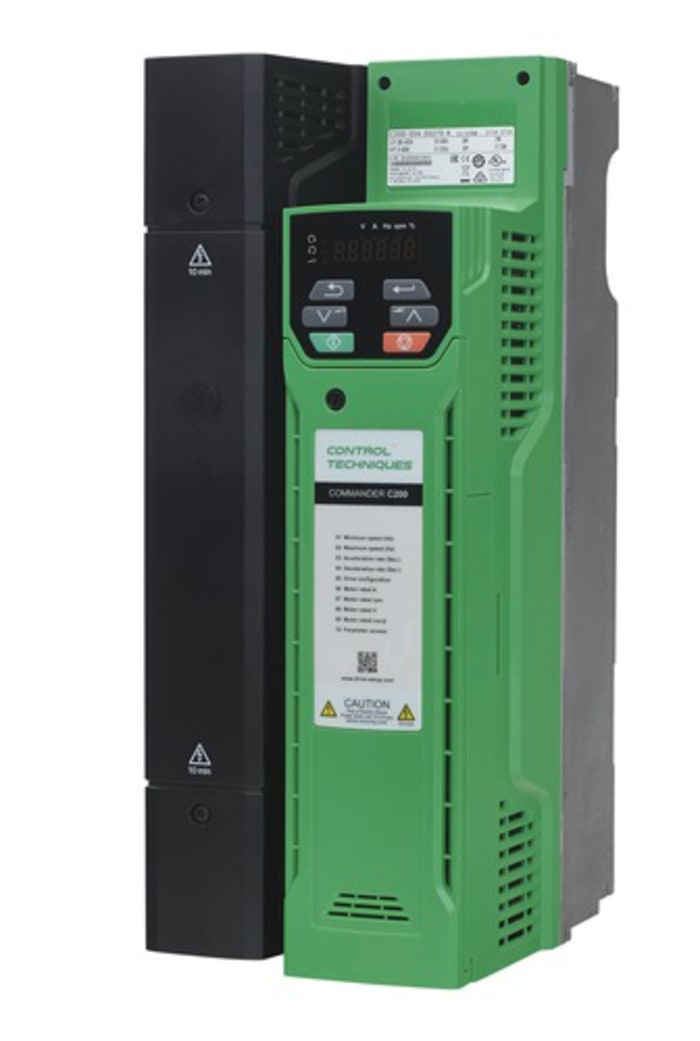

CONTROL TECHNIQUES C200-05400300 Inverter Drive 15 kW

Product Description

The CONTROL TECHNIQUES C200-05400300 is an inverter drive tailored for AC motor control. It handles a three-phase input voltage between three hundred eighty to four hundred eighty volts AC and delivers a three-phase output. This variable speed drive is compatible with multiple field bus communication types through adapters. It is applicable in automation tasks, effectively managing conveyors, fans, pumps, and mixers. The product features an IP20 enclosure rating.

• Power rating of fifteen kW.
• Output current of thirty A.
• Output frequency range spans zero to five hundred fifty Hz.

Product Highlights

This inverter drive is engineered for continuous duty with dynamic braking capabilities, suitable for a variety of industrial applications.

Product Information

Standard Information

• Brand: Control Techniques
• MPN: C200-05400300

Technical Specifications

• Power Rating: 15 kW
• Input Voltage: 380 to 480 V AC
• Input Phases: 3
• Output Current: 30 Amps
• Enclosure Rating: IP20
• Mounting Type: Panel Mount
• Output Frequency: 0-550 Hz
• Control Type: V/f, Open loop vector & RFC-A
