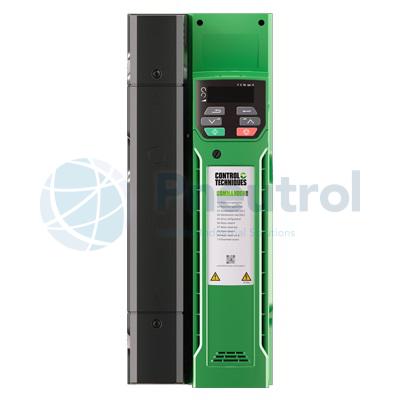

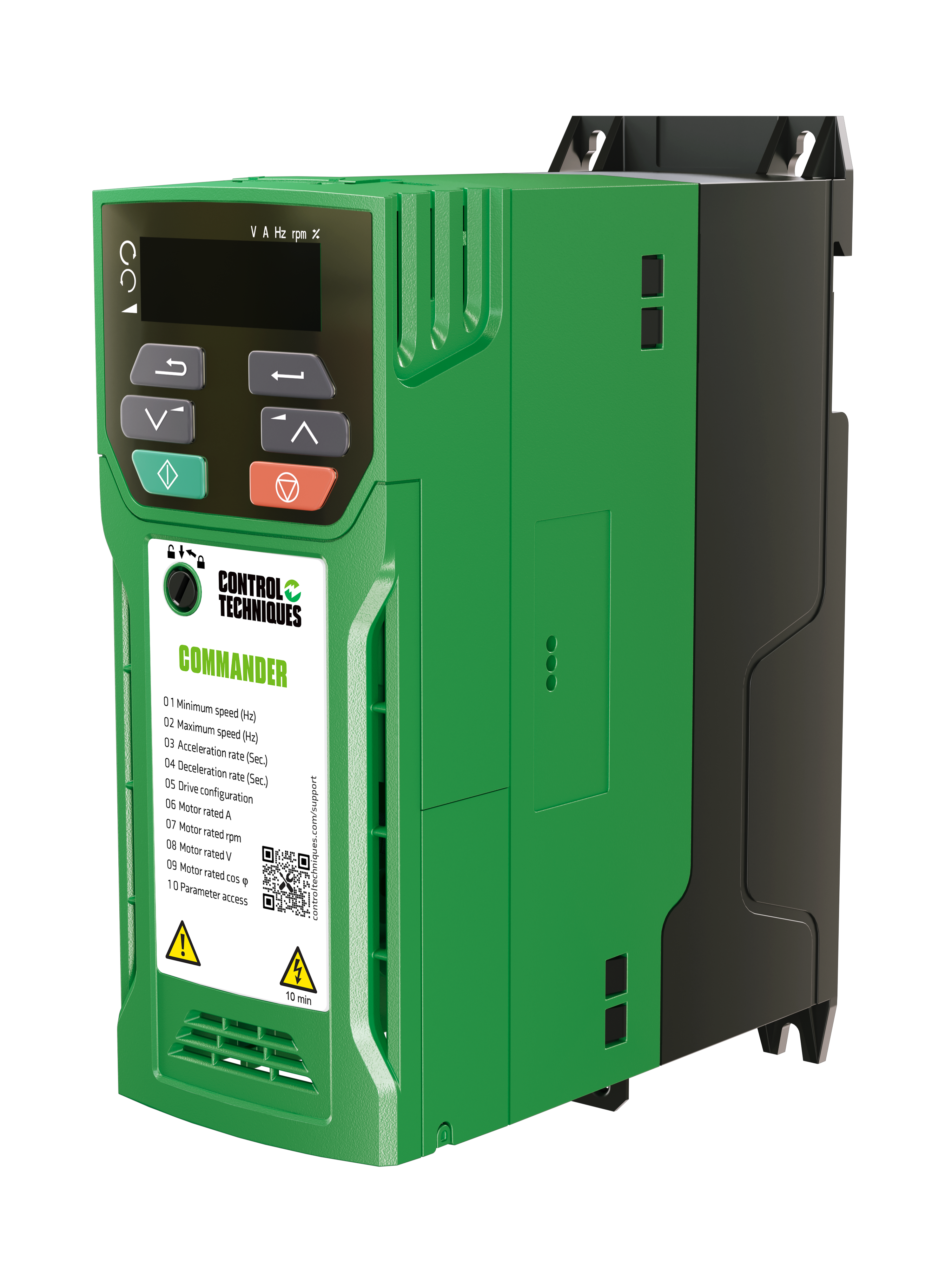

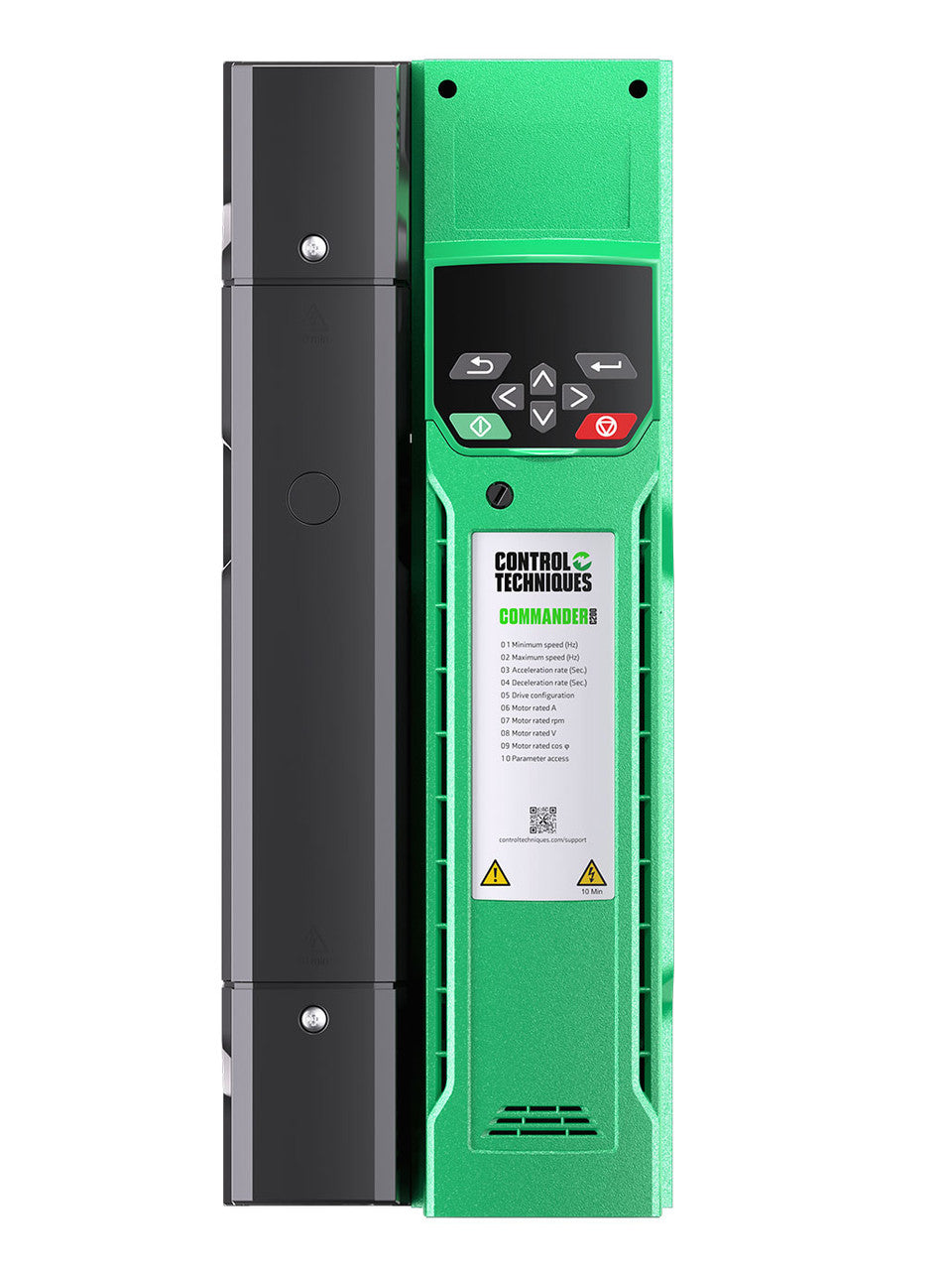

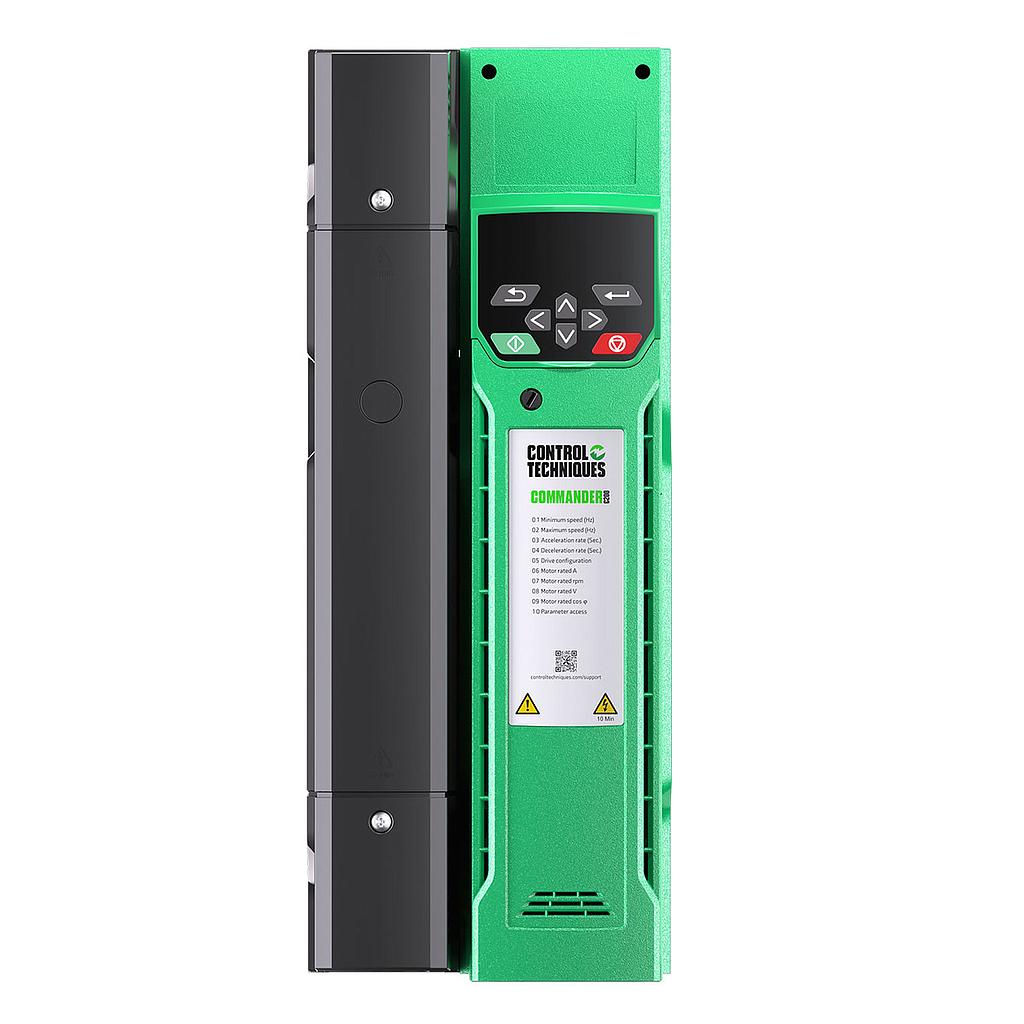

Control Techniques C200-05200250 Variable Speed Drive

Product Description

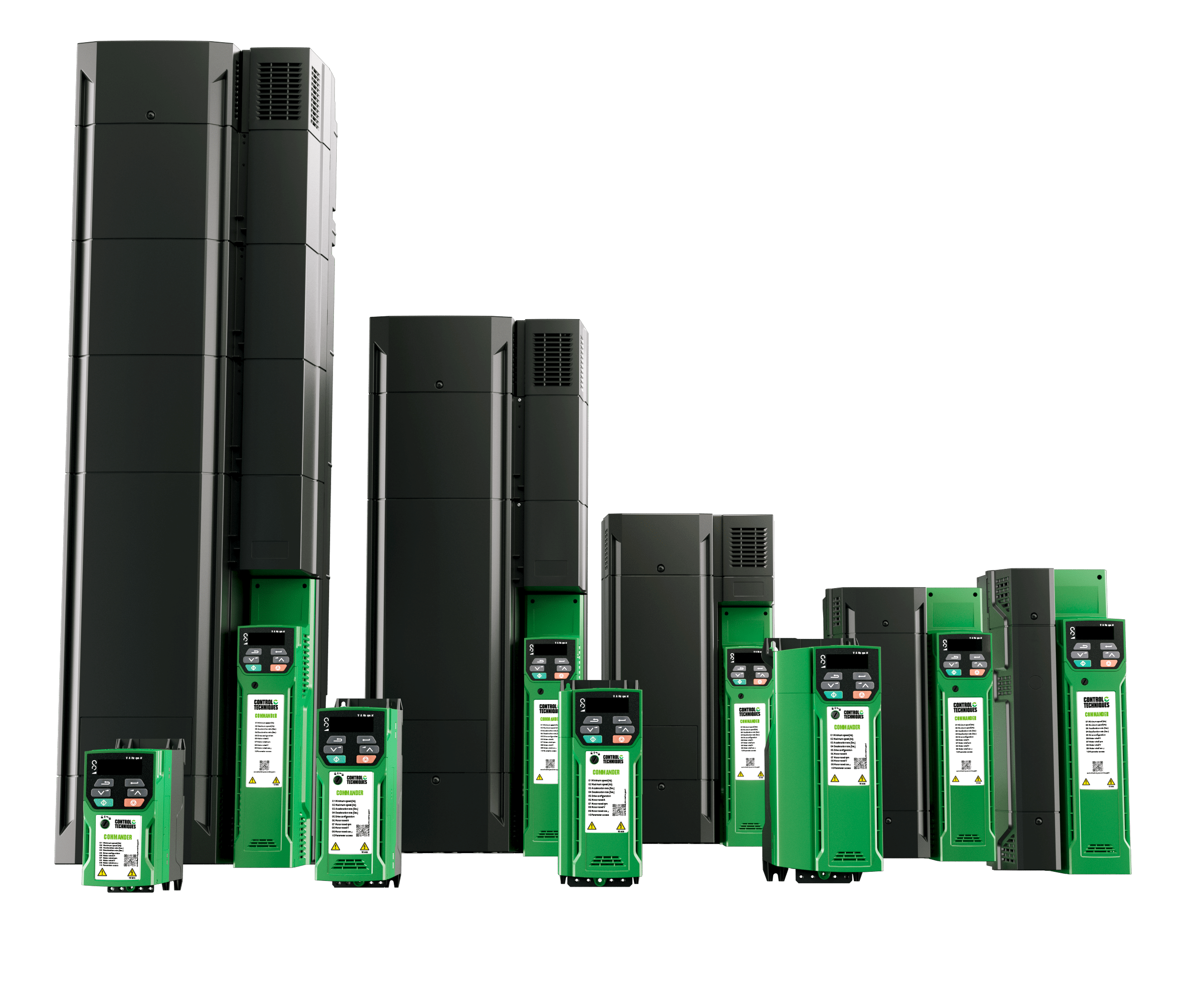

The Control Techniques C200-05200250 is a reliable variable speed drive from the Commander C200 series. This device is engineered for open-loop vector or V/Hz induction motor control, allowing for precise motor speed management. It offers optional communications and multiple plug-in features to enhance its versatility. The drive also includes a dynamic braking transistor, which necessitates an external resistor for effective braking operations. It is well-suited for various applications requiring accurate motor speed control.

• Supports open-loop vector or V/Hz induction motor control.
• Offers plug-in options for expanded functionality.
• Includes a dynamic braking transistor for improved braking capabilities.

Product Highlights

This variable speed drive is designed to handle the diverse needs of motor control in multiple industrial settings.

Product Information

Standard Information

• Brand: Control Techniques
• MPN: C200-05200250

Technical Specifications

• Series: C200
• Input Voltage: 200/240V AC
• Input Phase: 3
• Input Frequency: 45 to 66 Hz
• Output Frequency Range: 0 to 550 Hz
• Power: 5.5kW
• Power (HP): 7.5
• Enclosure Rating: IP20
• Operating Temperature: -20°C to 40°C @ 3 kHz switching freq., operation to 55°C/60°C with de-rating
• Storage Temperature: -40°C to 55°C/60°C for 24 months max.
• Humidity: 95% non-condensing at 40°C
• Cooling Method: Forced convection
• Weight: 7.4 kg
• Dimensions: 48 x 21.5 x 24.5 mm
• Certifications: UL, cUL, CE, EU, RCM, ISO, TÜV
• Control Mode: Open loop vector or V / Hz induction motor control
• Altitude: De-rate continuous output current by 1% for every 100 m above 1000 m to a maximum of 3000 m
• Vibration: Tested in accordance with IEC 60068-2-64
• Mechanical Shock: Tested in accordance with IEC 60068-2-27
• Electromagnetic Compatibility: Complies with IEC/ EN 61800-3
• RoHS: Complies with the Restriction of Hazardous Substances Directive
• Input Displacement Power Factor: 0.97
• Frequency Accuracy: ±0.02% of full scale
• Frequency Resolution: 0.01 Hz
• Over-temperature Trip: Exceeds 95°C
