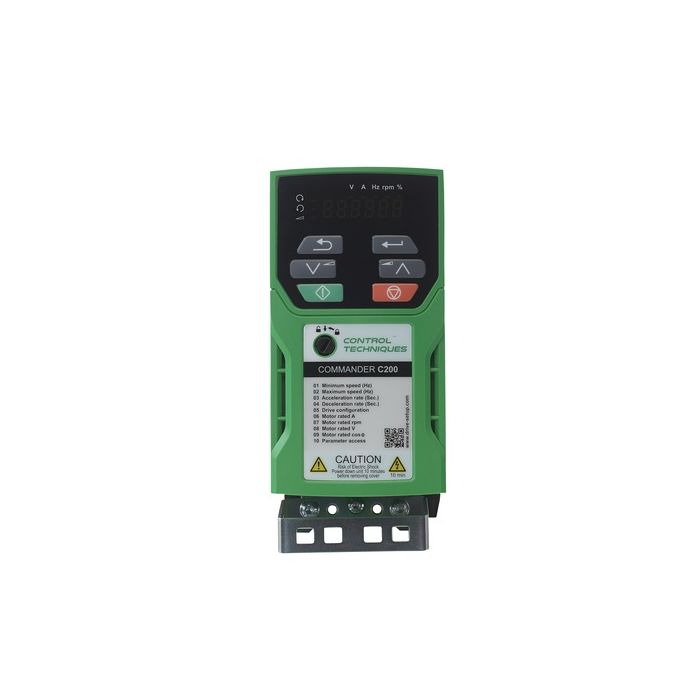

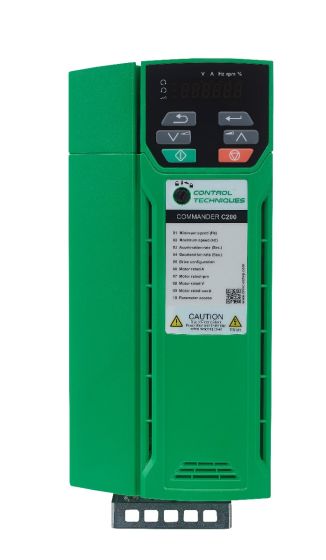

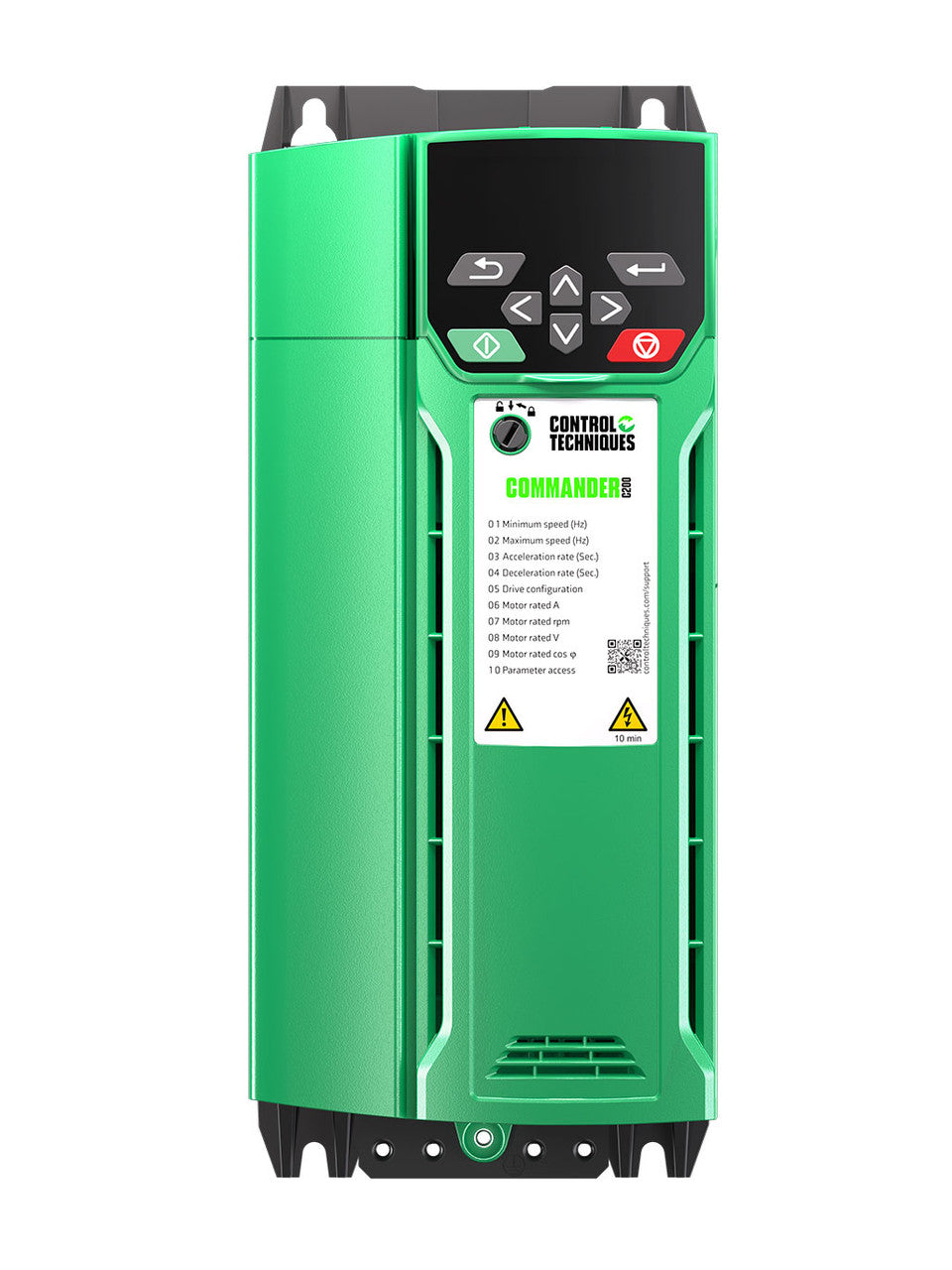

Control Techniques C200-04400170 Commander C200 7.5kW 10HP

Product Description

The Control Techniques C200-04400170 is an open-loop drive from the Commander C200 series. It serves for controlling the speed of AC motors in various applications. Designed for use with 460VAC 3-phase connections and operational at 50/60Hz, this drive supports both open-loop vector and V/Hz induction motor control. The unit includes a dynamic braking transistor that necessitates an external resistor for effective braking operations.

• Open loop drive with optional communications.
• Supports open loop vector or V / Hz induction motor control.
• Features a dynamic braking transistor.

Product Highlights

This drive is suitable for a range of industrial environments, complying with electromagnetic standards. It features robust protective measures against overloads, shorts, and phase loss

Product Information

Standard Information

• Brand: Control Techniques
• MPN: C200-04400170

Technical Specifications

• Power Rating: 7.5kW / 10HP
• Input Voltage: 380 to 480 Vac ±10%
• Output Voltage: 460 VAC
• Output Current: 17A
• Input Phase: 3
• Output Phase: 3
• Input Frequency: 45 to 66 Hz
• Switching Frequency: 0.667 kHz to 16 kHz
• Output Frequency Range: 0 to 550 Hz
• Enclosure Rating: IP20
• Operating Temperature: -20°C to 40°C
• Weight: 9.00 lbs
• Dimensions: Width: 17.00 inches, Height: 12.00 inches, Depth: 8.00 inches
