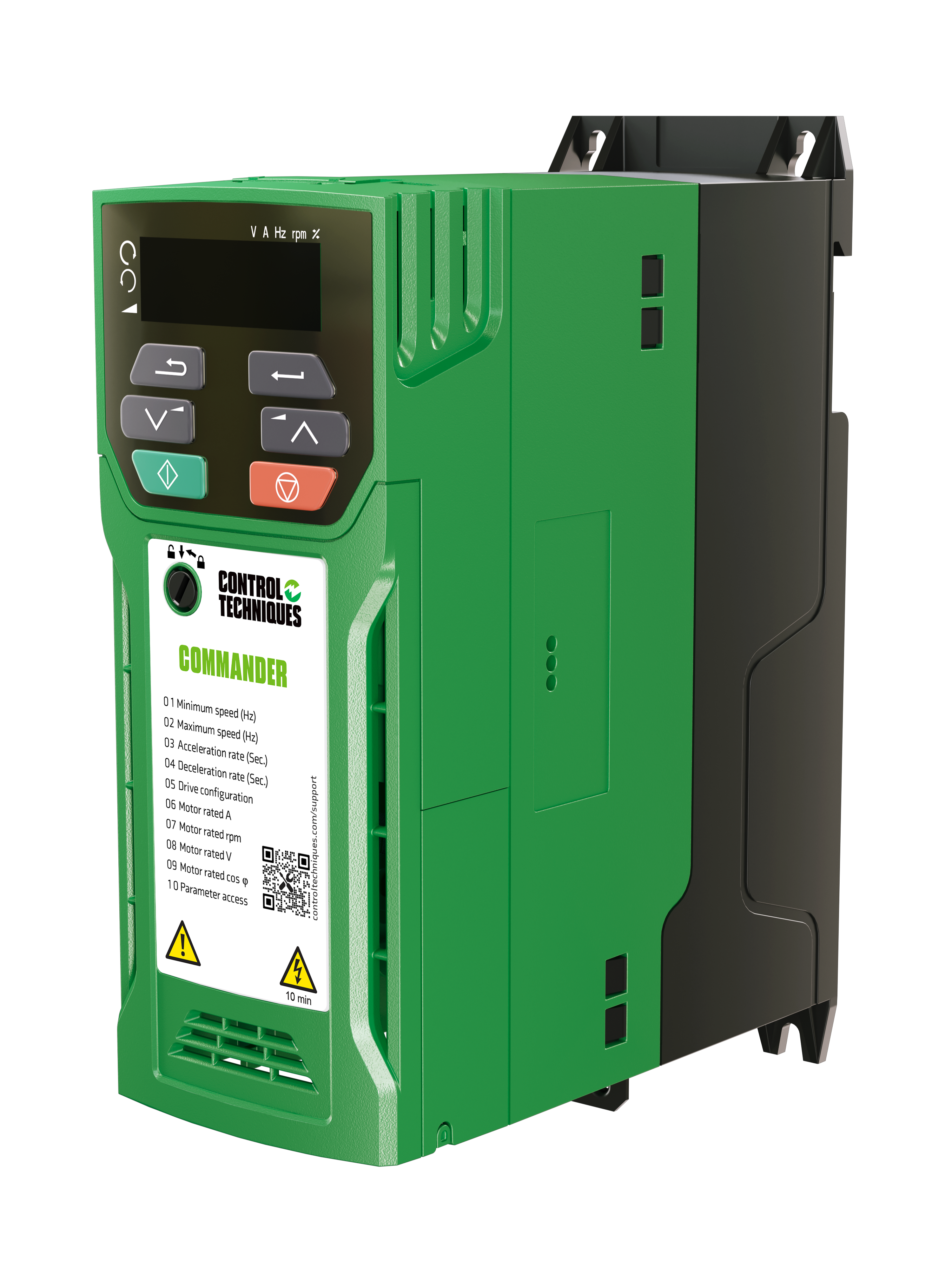

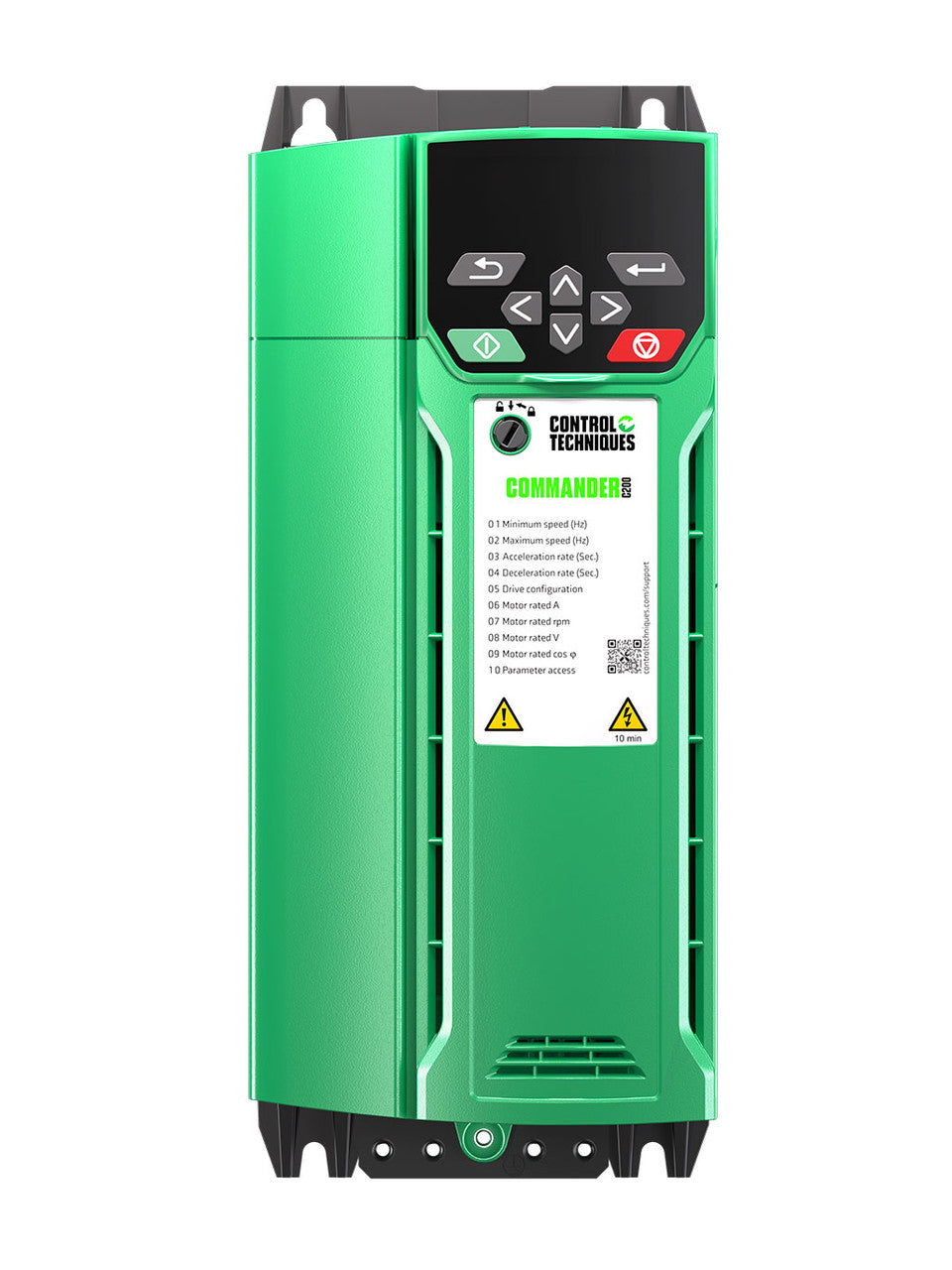

CONTROL TECHNIQUES C200-04200176 Commander C200 Open Loop Drive

Product Description

The CONTROL TECHNIQUES C200-04200176 is a Commander C200 series open-loop drive. It is designed for effective motor control in industrial applications. The drive accepts a 230VAC three-phase input and provides a 230VAC three-phase output. This drive includes a dynamic braking transistor and requires an external resistor for braking operations. It features dual Safe Torque Off (STO) functionality for enhanced safety.

• Open loop drive with optional communications
• Input: 230VAC three-phase, Output: 230VAC three-phase
• Dynamic braking transistor included

Product Highlights

This drive is suitable for a variety of motor control applications and ensures reliable performance under various environmental conditions.

Product Information

Standard Information

• Brand: CONTROL TECHNIQUES
• Manufacturer Part Number: C200-04200176

Technical Specifications

• Control Mode: Open loop vector or V / Hz induction motor control
• Operating Temperature: -20°C to 40°C
• Cooling Method: Forced convection
• Enclosure Rating: IP20
• Altitude: De-rate continuous output current by 1% for every 100 m above 1000 m
• Input Frequency: 45 to 66 Hz
• Output Frequency Range: 0 to 550 Hz
• Dynamic Braking: Transistor included, requires external resistor
