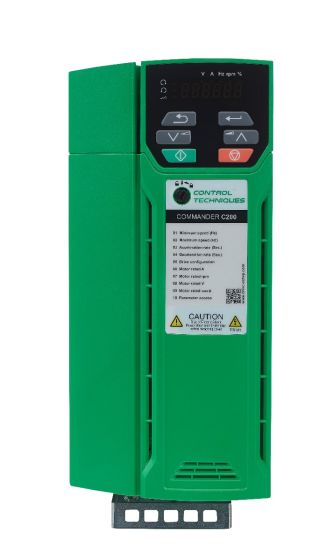

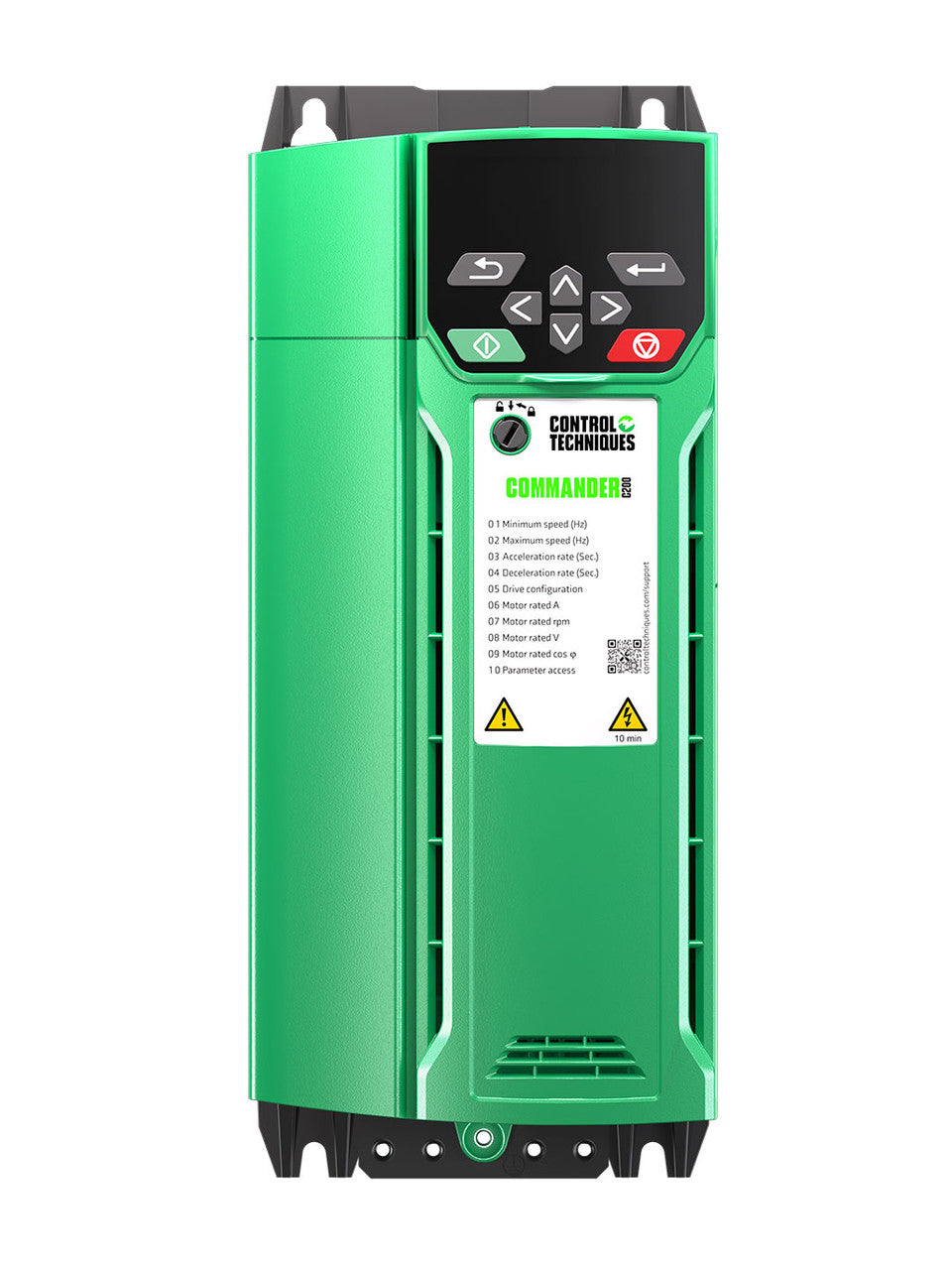

Control Techniques C200-04200133 Inverter Drive

Product Description

The Control Techniques C200-04200133 is an inverter drive suitable for automation applications. It uses single-phase or three-phase 200-240V AC input and outputs three-phase power. This inverter supports open-loop vector control and V/Hz induction motor control. It has option slots for plug-in modules and communication features such as Fieldbus, Ethernet, and Modbus RTU, making installation simple.

• Input: Single-phase or three-phase 200-240V AC
• Output: Three-phase
• Power: 3kW

Product Highlights

This drive is designed for efficient motor control with user-friendly installation processes.

Product Information

Standard Information

• Manufacturer: Control Techniques
• MPN: C200-04200133

Technical Specifications

• Series: Commander C200
• Input Voltage: 200 to 240 Vac ±10%
• Output Voltage: 0 to input
• Input Phase: 1, 3
• Output Phase: 3
• Power (kW): 3
• Power HP: 4
• Output Current: 13.3A
• Input Current: 23.7A / 13.5A
• Enclosure Rating: IP20
• Dimensions: 18 inches x 15 inches x 7.5 inches
• Weight: 1.50 kg
• Frame Size: 4
• Overload: 150%
• Duty: Heavy
• Dynamic Braking: Yes
• Control Type: V/f, Open loop vector & RFC-A
• Input Frequency: 45 to 66 Hz
• Output Frequency: 0 to 550 Hz
• Max Temp: 40 degrees C
• Ambient Operating Temperature: -20 degrees C to 40 degrees C
• Cooling Method: Forced convection
• Humidity: 95% non-condensing at 40 degrees C
• Approval: CE, UL
