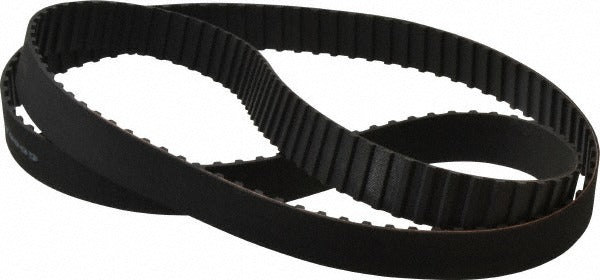

Continental Contitech 20043175 Timing Belt 600L 160T

Product Description

The CONTINENTAL CONTITECH 20043175 is an L-series positive-drive timing belt designed for synchronous power transmission applications. Built with a nylon construction and fiberglass cord reinforcement, this belt delivers accurate tooth engagement and resistance to stretching under load. The trapezoidal tooth profile mates with standard L-pitch sprockets, making it a straightforward drop-in for mechanical drive systems. At 1 inch wide with 160 teeth and a 600L belt designation, it fits a defined range of fixed-center and adjustable-center drive configurations used in light industrial and mechanical equipment.

This timing belt is suited for synchronous drive applications in machinery, HVAC equipment, small conveyors, and shop equipment where precise speed ratios and positive engagement are required. The L-series designation indicates a 3/8-inch pitch, which is a common standard in fractional-horsepower and light industrial drives. Technicians working on belt-driven blower assemblies, pump drives, or machine tool drives will recognize the 600L number as the standard sizing reference for this belt.

Key Features

• L-series trapezoidal tooth profile for positive, slip-free power transmission
• 160-tooth count with a 600L belt designation for precise drive sizing
• Nylon belt material for durability and wear resistance
• Fiberglass cord construction minimizes stretch and maintains center distance
• 1-inch belt width for compatibility with standard L-pitch sprockets
• 60-inch internal length with 600 mm pitch length for verified fitment

Compatibility

Designed as an OEM-style replacement or standard service belt for L-series synchronous drive systems using 600L-designation sprockets and pulleys.

Installation Notes

Belt replacement should be performed by a qualified technician familiar with synchronous drive systems. Power down and lock out all energy sources before removing drive guards or accessing the belt. Do not pry the belt over sprocket flanges; relieve center distance to allow proper seating. After installation, verify sprocket alignment and check that the belt seats fully in the tooth grooves before restoring power.
