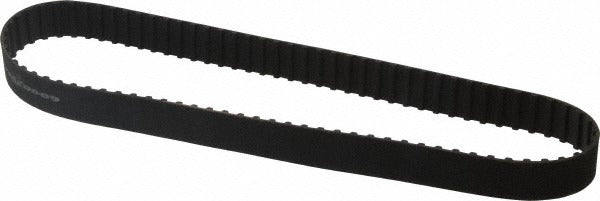

Continental Contitech 20043166 322L Timing Belt L Section

Product Description

The CONTINENTAL CONTITECH 20043166 is an L-series positive-drive timing belt engineered for precision power transmission applications. Constructed from nylon with a fiberglass tensile cord, this belt delivers reliable synchronization between drive components. It features 86 trapezoidal teeth and a pitch length of 322.00 mm, corresponding to the standard 322L belt designation. The 1-inch width fits a broad range of industrial and mechanical drive systems. Licensed technicians and mechanical service professionals install this belt in applications requiring accurate timing and low-stretch performance under cyclic load.

This belt is suited for light industrial machinery, HVAC equipment drives, and mechanical power transmission systems where an L-section synchronous belt is specified. The trapezoidal tooth profile engages standard L-section sprockets and pulleys. The fiberglass cord construction minimizes elongation over the service life of the belt, making it a dependable choice for continuous-duty drive assemblies in both commercial and light industrial environments.

Key Features

• L-series positive-drive timing belt with 86 trapezoidal teeth for accurate synchronization
• Nylon belt material provides durability and resistance to abrasion
• Fiberglass tensile cord minimizes stretch and maintains pitch accuracy under load
• 322L designation — 322.00 mm pitch length, 1-inch width — matches industry-standard sizing
• Trapezoidal tooth profile engages standard L-section sprockets and pulleys without modification

Compatibility

Designed as a standard replacement for L-series positive-drive timing belt applications requiring a 322L belt with 1-inch width and 86 trapezoidal teeth.

Installation Notes

Installation is typically performed by a qualified mechanical or HVAC technician. De-energize and lock out all power to the drive system before removing the old belt or handling the new one. Verify sprocket alignment and center distance before seating the belt to avoid premature tooth wear. Do not pry or force the belt over sprocket flanges, as this can damage the cord construction.
