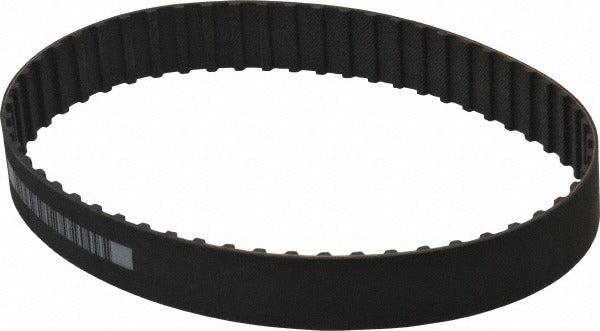

Continental Contitech 20043159 Timing Belt 210L 56T

Product Description

The CONTINENTAL CONTITECH 20043159 is an L-section positive-drive timing belt rated at 56 teeth and a 21.0-inch internal length. Built with a nylon belt body and a fiberglass cord reinforcement, it delivers consistent pitch accuracy and resists stretch under cyclic load. The trapezoidal tooth profile meshes with standard L-series sprockets for reliable synchronous power transmission. This belt is suited for light-to-medium duty mechanical drive applications in industrial equipment, HVAC fan drives, and automated machinery where precise timing between shafts is required.

L-series timing belts are commonly installed in equipment requiring positive, no-slip synchronization between drive and driven shafts. Typical applications include blower assemblies, pump drives, conveyor systems, and general industrial machinery. The 210L designation is a standardized belt number recognized across the industry, making cross-reference and replacement straightforward for maintenance technicians and mechanical contractors.

Key Features

• L-section trapezoidal tooth profile for positive, no-slip synchronous drive
• 56 teeth with a 21.0-inch internal length for precise shaft-to-shaft timing
• Nylon belt material for wear resistance and dimensional stability
• Fiberglass cord reinforcement minimizes stretch under load
• Standardized 210L belt number for easy cross-reference and replacement
• 1.0-inch belt width suits standard L-series sprocket widths

Compatibility

Designed as a direct replacement for standard L-series positive-drive timing belt applications requiring the 210L belt designation with a 56-tooth, 1.0-inch-wide profile.

Installation Notes

Installation is typically performed by a qualified mechanical technician or maintenance professional. Disconnect and lock out all power to the drive system before removing guards or handling the belt. Verify sprocket alignment and check for sprocket wear before fitting the new belt. Do not force the belt over sprocket flanges using tools that could damage the cord or tooth profile; always relieve drive tension first by adjusting center distance.
