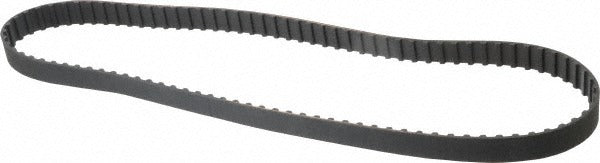

Continental Contitech 20043143 Timing Belt 98T Section L

Product Description

The CONTINENTAL CONTITECH 20043143 is a Section L positive-drive timing belt designed for synchronous power transmission in industrial, HVAC, and mechanical drive applications. This belt features 98 trapezoidal teeth on a nylon construction with a fiberglass tension cord, delivering consistent pitch engagement and dimensional stability under load. The 367L belt number corresponds to a 36.7-inch internal length with a standardized L-series pitch. Licensed tradespeople and mechanical technicians install this belt as a direct replacement or OEM-equivalent component in belt-driven equipment requiring precise timing and reduced slip.

This timing belt is suited for use in light- to medium-duty synchronous drive systems found in residential and commercial HVAC blower assemblies, pump drives, compressor drives, and general industrial machinery. The L Series positive-drive profile ensures consistent tooth engagement, making it appropriate for applications where speed ratio accuracy and reduced backlash are required. It ships as a single unit and is compatible with standard L-series timing pulleys of matching tooth pitch.

Key Features

• Section L positive-drive profile with 98 trapezoidal teeth for precise synchronous engagement
• Nylon belt construction provides wear resistance and flexibility across a wide operating range
• Fiberglass tension cord maintains pitch length stability and resists elongation under load
• 36.7-inch internal length corresponds to standard 367L belt designation for easy cross-referencing
• L Series design mates with industry-standard L-series timing pulleys

Compatibility

Designed as a direct-replacement L Series positive-drive timing belt for synchronous drive systems using standard L-series timing pulleys with matching tooth pitch and belt width.

Installation Notes

Installation should be performed by a qualified mechanical or HVAC technician with the driven equipment fully de-energized and locked out per applicable OSHA lockout/tagout procedures. Do not force the belt over pulley flanges with tools; adjust center distance to allow proper belt seating. Verify pulley alignment and correct tension after installation before returning equipment to service. Inspect mating pulleys for wear or damage before installing a new belt.
