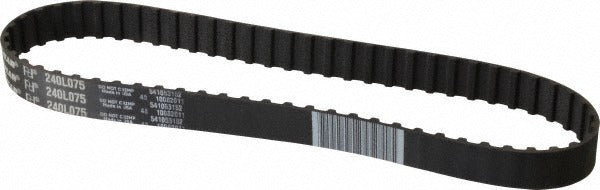

Continental Contitech 20043136 Timing Belt 240L 64 Teeth

Product Description

The CONTINENTAL CONTITECH 20043136 is an L-series positive-drive timing belt designed for precise power transmission in mechanical drive systems. It features a trapezoidal tooth profile with 64 teeth and a pitch length of 240 millimeters, corresponding to the 240L belt designation. The belt body is constructed from nylon with a fiberglass cord reinforcement, providing dimensional stability under load and resistance to elongation over time. This belt is suited for light-duty to medium-duty synchronous drive applications where accurate speed ratios and slip-free power transfer are required.

L-section timing belts are widely used in industrial machinery, HVAC equipment drives, conveyor systems, and light power transmission assemblies. The 240L designation indicates a standard inch-series L-pitch belt with a 24.0-inch internal length, making it a common replacement or maintenance item for equipment that calls out this belt number directly. Mechanical technicians and maintenance professionals handling scheduled drive-component replacement will find this belt fits standard L-series pulley systems without modification.

Key Features

• L-series trapezoidal tooth profile for positive, slip-free synchronous drive
• 64-tooth count with 240L belt designation and 24.0-inch internal length
• Nylon belt material for durability and wear resistance
• Fiberglass cord construction minimizes stretch and maintains pitch accuracy
• Standard L-section pitch for compatibility with L-series pulleys and sprockets

Compatibility

Designed as a standard replacement for L-series positive-drive timing belt applications calling out the 240L belt number in equipment drive specifications.

Installation Notes

De-energize and lock out the drive system fully before removing the existing belt or adjusting tensioner components. Verify pulley alignment and check for pulley wear before installing the replacement belt. Use a belt tension gauge appropriate for L-section timing belts to set proper tension without over-stressing the fiberglass cord. Follow the equipment manufacturer's service documentation for correct installation sequence and re-tensioning intervals.
