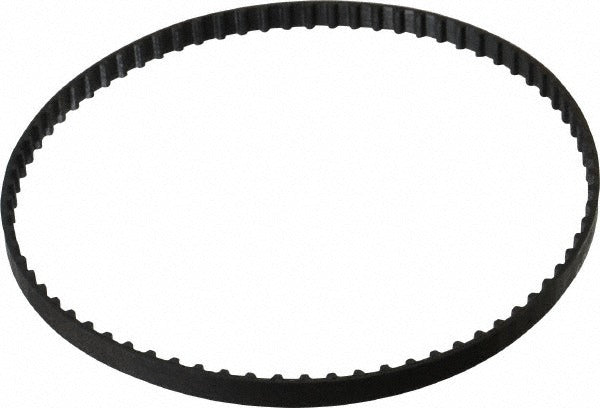

Continental Contitech 20043045 Xl Timing Belt 150XL 75T

Product Description

The CONTINENTAL CONTITECH 20043045 is an XL-section positive-drive timing belt rated for light-duty power transmission applications. The belt carries belt number 150XL, features 75 trapezoidal teeth, and is constructed from nylon with a fiberglass tension cord. The trapezoidal tooth profile provides positive engagement with XL-series timing pulleys, preventing slippage and maintaining accurate speed ratios. The fiberglass cord resists stretch under load, supporting consistent performance over the service life of the drive. This belt is installed by mechanical technicians and maintenance professionals working on small machinery, conveyors, office equipment drives, and similar light-duty power transmission systems.

The 20043045 XL timing belt is suited for residential and light commercial mechanical drive applications where synchronous power transmission is required. Typical installations include small conveyor systems, pumps, printers, CNC equipment, and other belt-driven machinery using standard XL-series pulleys. The 15.0-inch internal length and 75-tooth count make it a direct fit for XL-series drive systems designed around the 150XL belt designation. This belt is sold and installed as a single unit.

Key Features

• XL-series positive-drive timing belt with trapezoidal tooth profile for accurate synchronous power transfer
• 75 teeth with 150XL belt number designation for direct identification and replacement
• Nylon belt material offers durability and resistance to wear in light-duty drive environments
• Fiberglass tension cord minimizes belt stretch and maintains consistent pitch length under load
• 15.0-inch internal length with a pitch length of 150.00 mm for precise drive system fitment

Compatibility

Designed as a direct replacement for XL-series positive-drive timing belt applications requiring a 150XL belt number with 75 teeth and a 15.0-inch internal length.

Installation Notes

Installation is performed by qualified mechanical technicians. Always de-energize and lock out the drive system before removing or installing timing belts. Verify that mating pulleys are XL-series and that pulley alignment is correct before tensioning the belt. Do not force the belt over pulley flanges using tools that could damage the tooth profile or tension cord.
