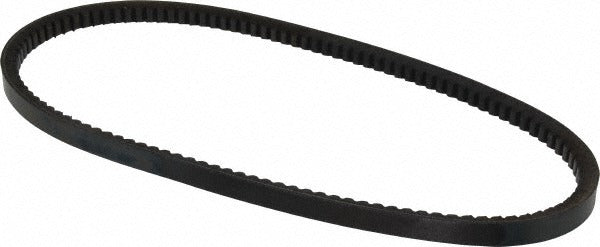

Continental Contitech 20042841 Cogged V-belt 5L 36 in

Product Description

The CONTINENTAL CONTITECH 20042841 is a fractional horsepower cogged V-belt designed for power transmission applications in HVAC, agricultural, and light industrial equipment. Manufactured from high traction rubber, this belt carries the industry designation 5L360, indicating a 5L cross-section profile and a 36-inch outside length. The cogged construction reduces bending resistance, allowing the belt to run cooler and transfer power more efficiently across smaller-diameter sheaves. It is installed by HVAC technicians, maintenance mechanics, and equipment service professionals performing belt replacements on blower assemblies, fan drives, and similar fractional horsepower drive systems.

This belt is suited for residential and light commercial HVAC systems, ventilation equipment, and general fractional horsepower drive applications where a 5L-section belt is specified. The 5L360 designation is a widely used size in blower and condenser fan drive configurations. Its abrasion-resistant and ozone-resistant compound makes it appropriate for both indoor mechanical rooms and outdoor equipment installations exposed to environmental weathering. Technicians replacing worn or cracked drive belts will find this a direct size-for-size replacement wherever a 5L360 is called out.

Key Features

• Cogged design reduces heat buildup and improves flexibility on small-diameter sheaves
• High traction rubber compound for reliable power transfer
• Abrasion resistant and ozone resistant for extended service life in harsh environments
• Operating temperature range: -40 degrees C to 140 degrees C
• 5L360 belt designation: 5L section, 36-inch outside length, 34.80-inch internal length

Compatibility

Designed as an OEM-style replacement for fractional horsepower drive systems specifying a 5L-section V-belt with a 36-inch outside length and the belt number 5L360.

Installation Notes

Belt replacement should be performed by a qualified technician with the drive system fully de-energized and locked out per OSHA lockout/tagout procedures. Loosen the motor mounting fasteners or belt tensioner before removing the old belt; never pry a belt over a sheave under tension. Inspect sheave grooves for wear or misalignment before installing the new belt, and verify proper tension per the equipment manufacturer's specification after installation. Recheck tension after the first few hours of operation as new belts may seat and stretch slightly.
