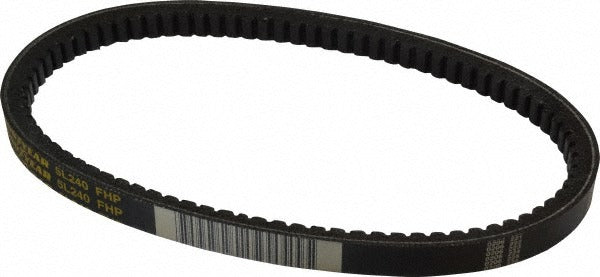

Continental Contitech 20042829 Cogged V-belt 5L 24 in

Product Description

The CONTINENTAL CONTITECH 20042829 is a fractional horsepower cogged V-belt designed for light-duty power transmission applications in HVAC, refrigeration, and general mechanical equipment. Built from high-traction rubber, the cogged construction reduces bending resistance and heat buildup, improving efficiency and extending service life compared to standard wrapped belts. The belt carries a 5L section designation with a 24.0 inch outside length and a 22.80 inch internal length. It is rated for operating temperatures from -40 degrees C to 140 degrees C and is engineered to resist abrasion and ozone degradation in demanding service environments.

This belt is suited for residential and light commercial HVAC blower drives, fans, compressors, and small motors where fractional horsepower V-belt drives are specified. The 5L section profile is a standard fractional horsepower sizing, making this belt a common replacement in air handlers, furnaces, condensing units, and similar equipment. Installers replacing worn or glazed belts during scheduled maintenance will find this a direct-fit option where the 5L240 belt designation is called out on the equipment nameplate or service manual.

Key Features

• Cogged design reduces bending resistance and heat buildup for longer belt life
• High-traction rubber construction for reliable grip and power transfer
• Abrasion resistant and ozone resistant for extended field service life
• Wide operating temperature range: -40 degrees C to 140 degrees C
• 5L section fractional horsepower profile for common blower and fan drive applications
• Belt number 5L240 for direct cross-reference during replacement

Compatibility

Designed as an OEM-style replacement for equipment specifying a 5L240 fractional horsepower cogged V-belt. Verify outside length, section designation, and sheave groove profile against the existing belt and drive specifications before installation.

Installation Notes

Belt replacement is a standard task for HVAC technicians and mechanical service personnel. Always de-energize and lock out the equipment before removing or installing drive belts. Do not use tools to force the belt over sheave flanges; loosen the motor mounting to relieve tension, seat the belt in the groove, then re-tension according to the equipment manufacturer specification. Inspect sheave grooves for wear, glazing, or misalignment before installing a new belt, as worn sheaves will shorten belt service life.
