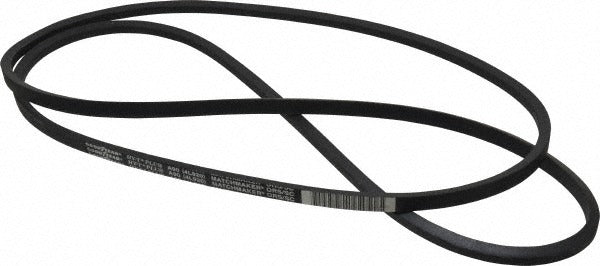

Continental Contitech 20042015 Section a V-belt A90 92.2in

Product Description

The CONTINENTAL CONTITECH 20042015 is a Section A classical V-belt designed for power transmission in industrial, commercial, and HVAC drive applications. Built from Wingprene rubber-impregnated fabric, this belt delivers reliable heat and oil resistance across a wide temperature range of -40 degrees C to 140 degrees C. At 92.2 inches outside length and 91.30 inches internal length, it fits standard A-section sheaves and pulleys. The HY-T Matchmaker construction meets DIN 2215 and DIN 7753 standards, making it suitable for matched-set drive configurations where consistent tension across multiple belts is critical. Technicians servicing air handlers, blowers, compressors, and other belt-driven mechanical systems will recognize this as a direct OEM-style replacement.

This belt is used in residential and light commercial HVAC systems, industrial fans, pumps, and general power transmission drives that call for a Section A V-belt. It is particularly well suited for applications requiring oil and heat resistance, such as belt-driven blower assemblies on furnaces and air handlers, or compressor drives in moderate-duty industrial settings. The HY-T Matchmaker designation indicates it is engineered for use in matched-set configurations, ensuring balanced load distribution across multiple-belt drives. Sold individually, it can also be matched with other belts from the same product family.

Key Features

• Section A profile with 92.2 inches outside length and 91.30 inches internal length
• Wingprene rubber-impregnated fabric construction provides oil and heat resistance
• Rated for operating temperatures from -40 degrees C to 140 degrees C
• HY-T Matchmaker design supports matched-set multi-belt drive configurations
• Meets DIN 2215 and DIN 7753 standards
• Belt number A90 for cross-reference and replacement identification

Compatibility

Designed as an OEM-style replacement for standard Section A V-belt drive applications requiring an A90 belt designation with 92.2 inches outside length and DIN 2215 or DIN 7753 compliance.

Installation Notes

V-belt replacement is typically performed by HVAC technicians or millwrights. Before replacing the belt, de-energize and lock out the equipment at the disconnect per NFPA 70E procedures. Loosen the motor mounting bolts to relieve tension before removing the old belt, and never force a belt over sheave flanges. After seating the new belt in the sheave groove, adjust motor position to achieve proper tension and verify alignment before returning the unit to service.
