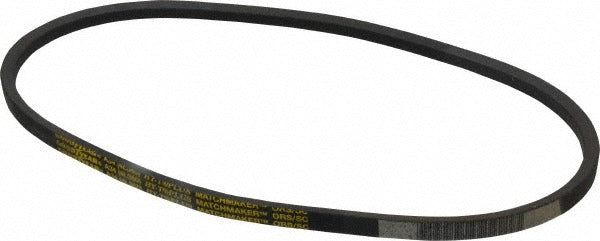

Continental Contitech 20041959 Section a V-belt 36.2 in

Product Description

The CONTINENTAL CONTITECH 20041959 is a Section A V-belt designed for power transmission applications in HVAC, industrial, and mechanical drive systems. Built from Wingprene rubber-impregnated fabric, this belt delivers reliable resistance to heat and oil, making it suitable for demanding operating environments. It carries a 36.2-inch outside length and a 35.3-inch internal length, conforming to the A34 belt designation. The HY-T Matchmaker profile ensures consistent wedging action and stable torque transfer. This belt is installed by HVAC technicians, maintenance mechanics, and millwrights performing drive system service or replacement.

This belt is suited for residential and light commercial HVAC equipment, agricultural machinery, shop equipment, and general industrial drive applications where Section A belts are specified. The A34 designation follows DIN 2215 and DIN 7753 standards, making it compatible with internationally standardized sheave and pulley configurations. Its oil and heat resistance supports use near engines, compressors, blowers, and other heat-generating drive components. It is sold individually and ships as a single unit.

Key Features

• Wingprene rubber-impregnated fabric construction resists oil and heat degradation
• Rated for operating temperatures from -40 degrees C to 140 degrees C
• Section A profile with 36.2-inch outside length and 35.3-inch internal length
• HY-T Matchmaker style for consistent wedge fit in standard A-section sheaves
• Meets DIN 2215 and DIN 7753 standards for dimensional and performance conformance
• A34 belt number for direct cross-reference to standard belt catalogs

Compatibility

Designed as a direct-replacement Section A V-belt for drives specifying an A34 belt per DIN 2215 and DIN 7753 standards, fitting standard A-section sheaves and pulleys used across HVAC blower assemblies, compressors, and general mechanical drive equipment.

Installation Notes

V-belt replacement is performed by qualified HVAC technicians or maintenance mechanics. Disconnect and lock out all power to the drive system before removing the old belt or installing the new one. Inspect sheave grooves for wear, misalignment, or debris before seating the belt. Never pry the belt over sheave flanges using tools that could damage the belt cords; always release drive tension before installation and re-tension per the equipment manufacturer's deflection specification.
