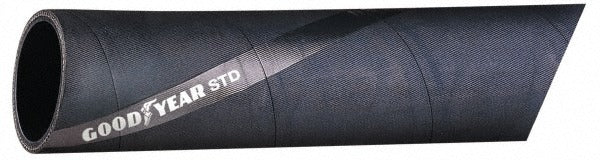

Continental Contitech 20017197 Straight Radiator Hose

Product Description

The CONTINENTAL CONTITECH 20017197 is a straight radiator hose designed for cooling system service in automotive and light equipment applications. Built from Versgard EPDM compound, it handles a maximum working pressure of 150 psi and a maximum temperature of 260 degrees F, with a cold-side rating down to -40 degrees F. The hose measures 3 feet in length with a 1.25-inch inside diameter. EPDM construction provides resistance to coolant, heat, and ozone degradation, making it a reliable choice for replacement work in shops and fleet service environments. Installation requires straightforward cutting and clamping — no special tooling beyond standard hose clamps and a utility knife.

This hose is suited for straight-run cooling system plumbing where a 1.25-inch ID connection is required. It is commonly used in automotive, light truck, and small equipment radiator circuits as an OEM-style replacement or a custom-cut service hose. The 3-foot length gives technicians enough material to trim to exact fit during installation. Both the inner tube and outer cover are EPDM, providing consistent performance across the full temperature and pressure range. The black color is standard for radiator hose applications.

Key Features

• Versgard EPDM inner tube and cover for heat and coolant resistance
• 150 psi maximum working pressure
• Temperature range from -40 degrees F to 260 degrees F
• Straight configuration, 3 feet long with 1.25-inch inside diameter
• Cut-to-length design allows field trimming to exact fit

Compatibility

Designed as an OEM-style replacement straight radiator hose for cooling systems requiring a 1.25-inch ID straight hose connection.

Installation Notes

Installation is typically performed by automotive technicians or equipment mechanics. Drain or capture coolant before removing the old hose to avoid spills and burns. Slide hose clamps onto the hose before seating it fully on the fitting, then position and tighten clamps to manufacturer-specified torque per the vehicle service manual. Inspect the mating fittings and nipples for corrosion or damage before installing the new hose.
