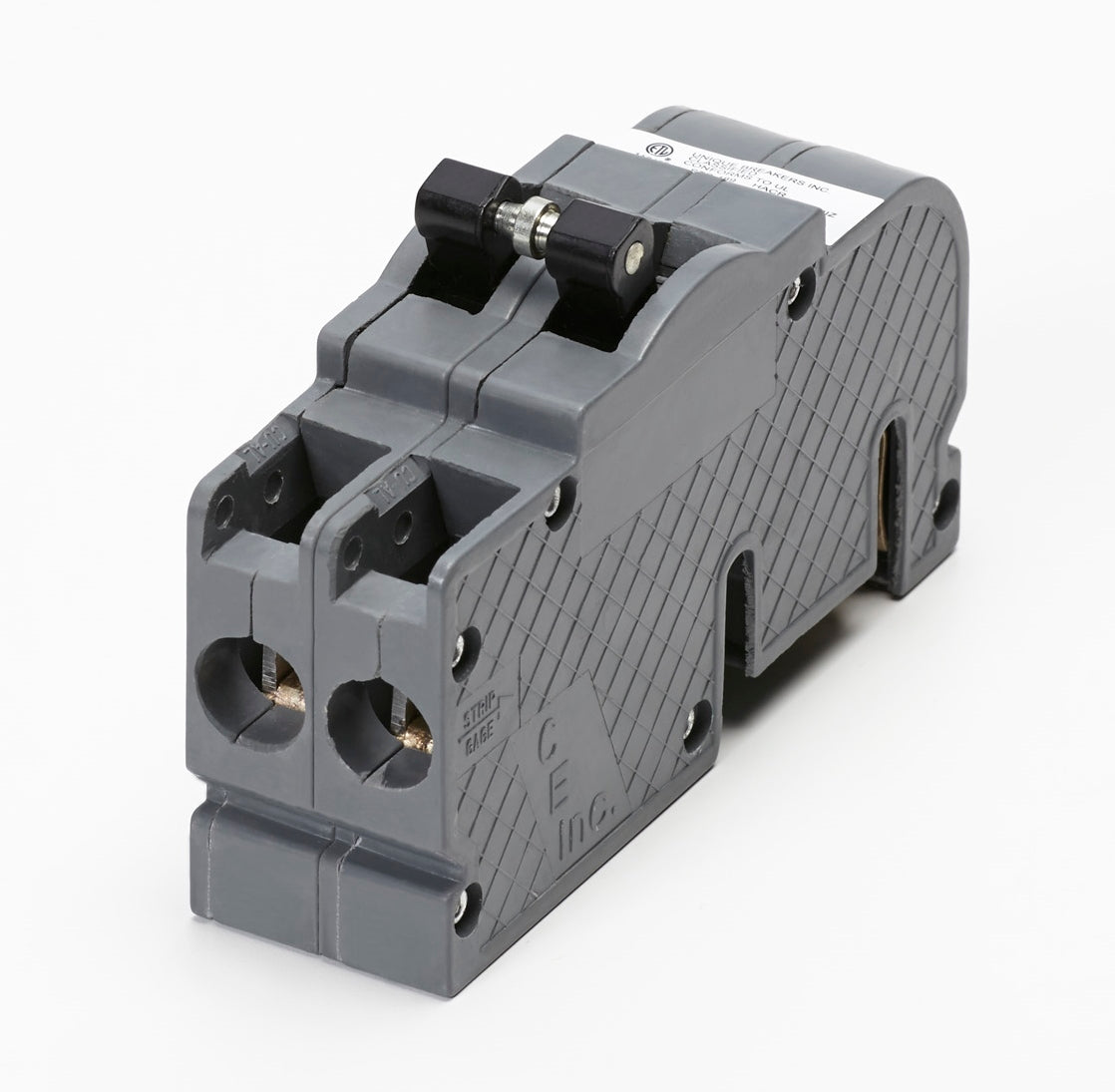

Connecticut Electric UBIZ250 Circuit Breaker 50 Amp 2 Pole Replacement

Product Description

Connecticut Electric UBIZ250 is a thermal/magnetic trip circuit breaker designed for use in Zinsco plug-in load centers. It operates at 120/240 VAC and has a current rating of fifty amperes. This circuit breaker features a push-on connection type and is suitable for residential and light commercial applications.

• Voltage rating of 120/240 VAC
• Two poles with a 10 kA interrupt rating
• Thermal/magnetic trip functionality

Product Highlights

The UBIZ250 circuit breaker ensures reliable circuit protection and is engineered for easy installation in electrical panels.

Product Information

Standard Information

• Manufacturer: Connecticut Electric
• MPN: UBIZ250

Technical Specifications

• Actuator Type: Handle
• Amperage Rating: 50 A
• Application: For use in Zinsco plug-in load centers
• Connection Type: Push-On
• Dimensions: 4.81 in L x 1.5 in W x 2.53 in H
• Frequency Rating: 50/60 Hz
• Material: DMC
• Number of Poles: 2
• Phase: 1 ph
• Series: UBIZ
• Standards/Approvals: ETL Listed, CE Certified, UL 489
• Temperature Rating: 40 deg C
• Trip Type: Thermal/Magnetic
• Type: QC HACR Rated Thick
• Voltage Rating: 120/240 VAC
