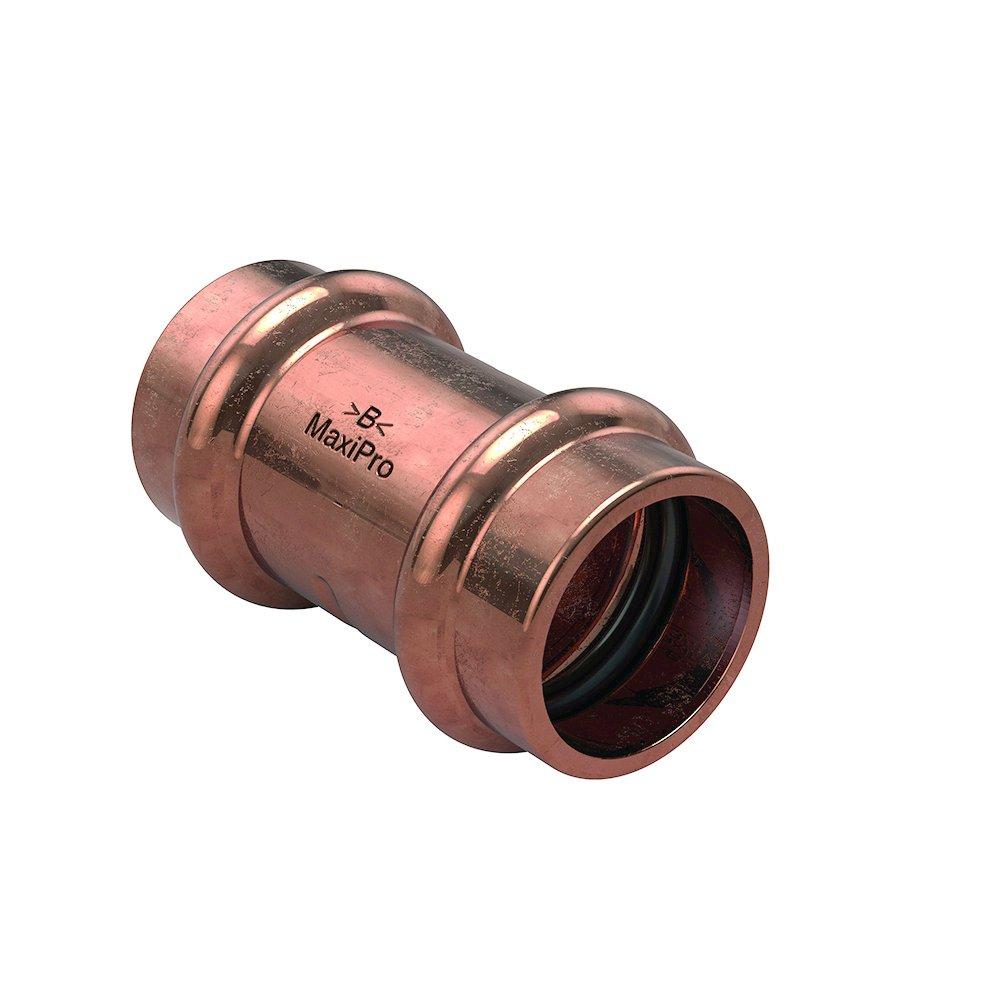

Conex MPA5270 0050001 Straight Coupler 5/8 inches (Bag of 5)

Product Description

The CONEX MPA5270 0050001 straight coupler is part of the >B< MaxiPro range. This fitting is designed for ACR applications and features flame-free installation, eliminating the need for a fire permit. It provides a secure, leak-free joint with its HNBR O-ring and three-point press design. Sold in bags of 5.

• Flame-free installation avoids the need for a fire permit
• High-quality HNBR O-ring provides a secure, leak-free joint
• Three-point press provides high-quality crimping

Product Highlights

Straight coupler for ACR applications with flame-free installation and secure, leak-free joint.

Product Information

Standard Information

• Brand: CONEX
• Manufacturer Part Number: MPA5270 0050001
• Country of Origin: Global

Technical Specifications

• Product Code: MPA5270 0050001
• Size: 5/8"
• Application: ACR
• Bag Quantity: 5
• Operating Temperature Range: -40 to 250 deg F
• Maximum Operating Pressure (Bar): 48 Bar
• Maximum Operating Pressure (kPa): 4800 kPa
• Maximum Operating Pressure (PSI): 700 PSI
• Fitting Material: Copper
• O-Ring/Seal Material: HNBR
• ASME: ASME B31.5
• ASTM: ASTM G-85, ASTM B-280, ASTM B-88
• CSA Certified: No
• Clean Bagged: Yes
• Collection: MaxiPro
• Diameter - Outside: 5/8 in
• End Connection 1: Press
• End Connection 2: Press
• End Connections: Press
• FM Approved: No
• Fitting Size 1: 5/8 in
• Fitting Size 2: 5/8 in
• Fitting Sizes: 5/8 in
• Fitting Type: Coupling
• IAPMO Listed: No
• Material: Wrot Copper
• Maximum Temperature: 250
• NSF Certified: No
• Origin: Global
• Package Quantity: Count of 5
• Pressure - Maximum: 2100 psi
• Pressure Class: 700#
• UL Listed: UL 109
• Manufacturer: Conex Bänninger
• UPC: 656565801999
• Connection Type: Press
• Material Standard: ASTM B280, ASTM B88
• Pressure Rating: 700 psi
• Standards/Approvals: ASHRAE 15 Compliant|ASTM G85 Specified|ICC ES PMG-1440 Approved|IMC 2018/2015/2012/2009/2006 Listed|IRC 2018/2015/2012/2009/2006 Listed|UL 109/1963 Listed|UL Listed|UMC 2018/2015/2012/2009/2006 Listed
• Temperature Rating: -40 to 250 deg F
• UNSPSC: 40183107
