Conex MPA5240 0050301 5/8x3/8 Pxp Reducing Coupler

Product Description

The CONEX MPA5240 0050301 is an innovative press system, quick and simple to install, providing a secure and permanent joint. Suitable for air-conditioning and refrigeration applications up to 48 bar. Flame-free installation avoids the need for a fire permit and the risk of fire on site. Mechanical joint eliminates the need for nitrogen purge during the jointing process.

• Quick and simple to install
• Provides a secure and permanent joint
• Press fittings for ACR Applications to 700 PSI, UL 207 (Not for use with Potable Water)

Product Highlights

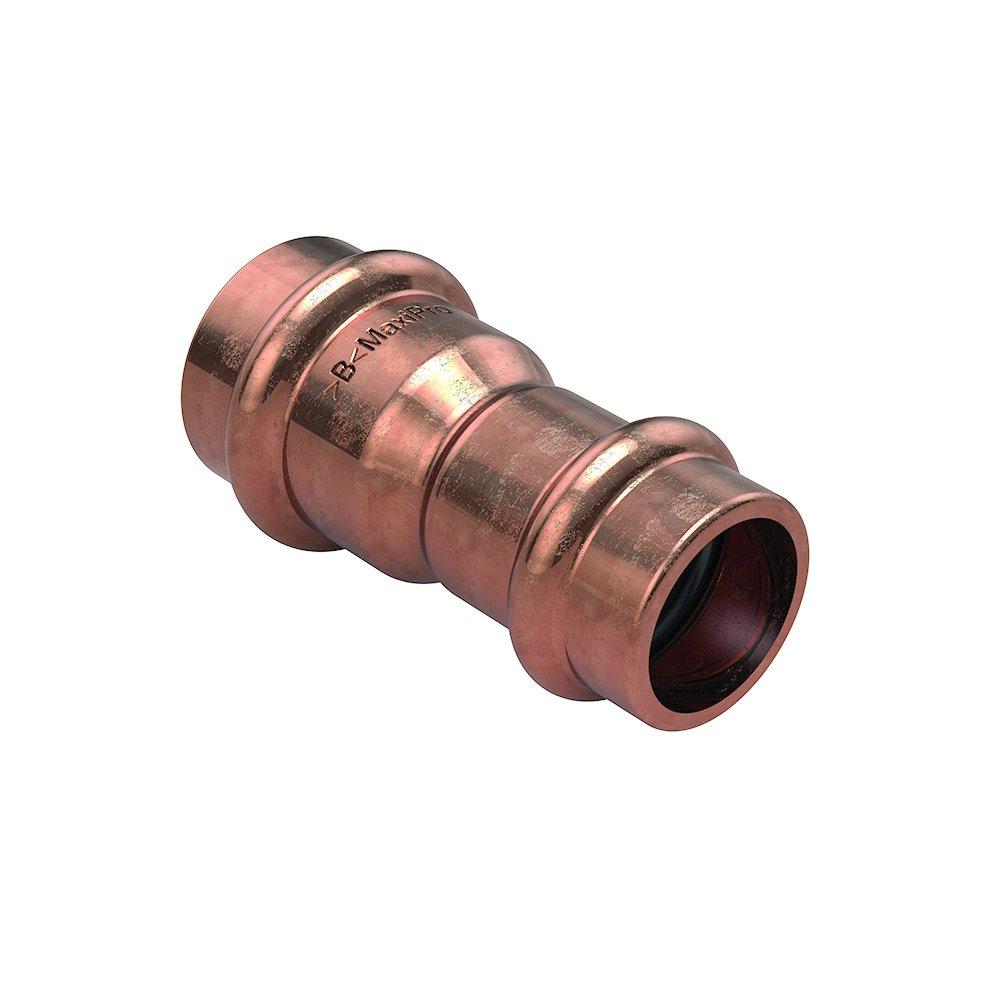

This copper reducing coupler is designed for refrigeration press fitting with a 3-point press design and lead-in edge to protect the O-ring.

Product Information

Standard Information

• Brand: CONEX
• Manufacturer Part Number: MPA5240 0050301
• Country of Origin: United States

Technical Specifications

• End Style: P x P
• Fitting / Connector Type: Reducing Coupling
• Manufacturer: Conex Banninger
• Manufacturer #: MPA5240-0050301
• Material: Copper
• Nominal Size: 5/8 x 3/8 in
• Maximum operating and ab. pressure: 700 psig, 4800 kPa, 48 bar
• Compatible Oils: POE, PAO, PVE, AB and MO.
• Connection Size: 5/8" x 3/8"
• MPN: MPA5240-0050301
• Continuous Operating Temperature: -40 °F to 250 °F , -40 °C to 121 °C.
• Series: MaxiPro
• Maximum Operating Pressur: 700 psig, 4800 kPa, 48 bar
• Weight: 0.1433
• Composition: Copper
• NSF Certified: false
• Prop 65: true
• Size: 5/8" x 3/8"
• Substantial Commodity: Copper
• UPC: 656565801721
• Height: 0.9449
• Length: 47-1/2
• Width: 0.9449
• ASME: ASME B31.5
• ASTM: ASTM G-85, ASTM B-280, ASTM B-88
• BAA Compliant: Yes
• CSA Certified: No
• Clean Bagged: Yes
• Collection: MaxiPro
• Diameter - Outside: 5/8 in, 3/8 in
• End Connection 1: Press
• End Connection 2: Press
• End Connections: Press
• FM Approved: No
• Fitting Size 1: 5/8
• Fitting Size 2: 3/8
• Fitting Sizes: 5/8 in x 3/8 in
• Fitting Type: Coupling
• IAPMO Listed: No
• Maximum Temperature: 250
• Origin: Global
• Package Quantity: Count of 2
• Pressure - Maximum: 2100 psi
• Type: Connector
• UL Listed: UL 109
• Pipe/Fitting/Nipple: Fittings
