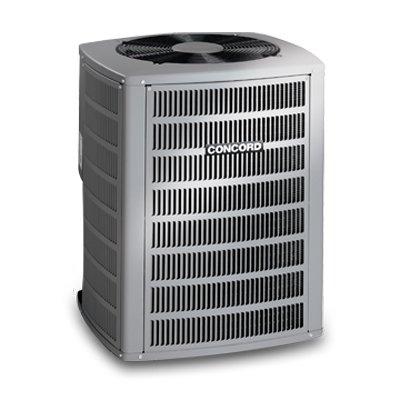

Concord 23A57 Legacy Air Conditioner, 4 ton Nominal, Power Source: 208 to 230, 17 SEER

Product Description

The Concord 23A57 is a four-ton nominal air conditioner designed for efficient cooling in various residential applications. Operating on a power source of two hundred eight to two hundred thirty volts, this unit offers a seasonal energy efficiency ratio (SEER) of seventeen. The combination of energy efficiency and effective cooling makes it a reliable choice for homeowners and HVAC contractors.

• Up to seventeen SEER (sixteen point two SEER2) efficiency ratings
• ENERGY STAR certification may qualify for rebates
• Corrosion protection technology increases longevity

Product Highlights

This air conditioner features a heavy-duty single-stage compressor built for reliability. The permanently lubricated fan motor requires no annual maintenance, and its design includes advanced corrosion protection to extend the unit's lifespan.

Product Information

Standard Information

• Brand: Concord
• MPN: 23A57

Technical Specifications

• Cooling Capacity: 45500 Btu/hr
• Dimensions: 33.25 in H x 32.25 in W x 32.25 in D
• EER Rating: 11.7
• Nominal Capacity: 4 ton
• Power Source: 208 to 230
• Refrigerant Type: R12/R22/R134A/R404A/R410A
• SEER Rating: 17
• Series: 4AC17L
• Sound Level: 76 dB
