Conbraco 83A-247-01 1-1/2 CS SW 1500 3-PC

Product Description

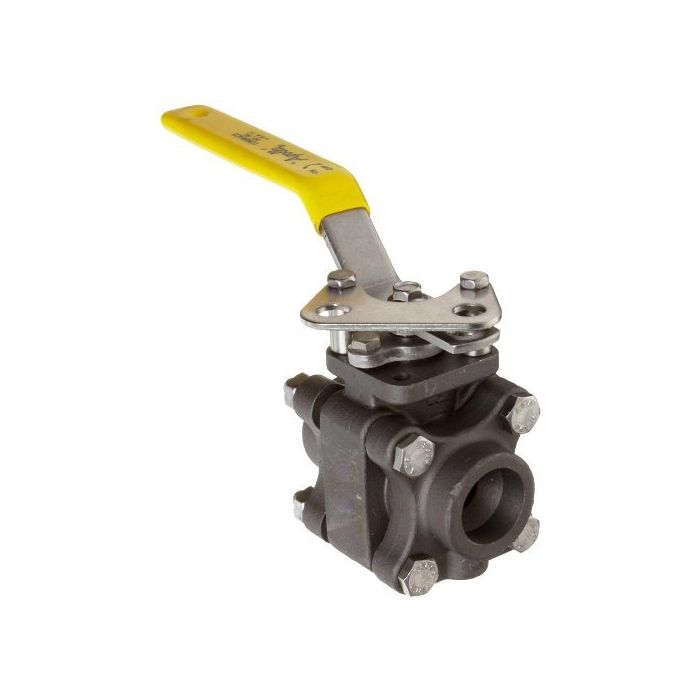

The CONBRACO 83A-247-01 is a 1-1/2 CS SW 1500 3-PC ball valve. This valve features a carbon steel body, 316 stainless steel ball and stem, and a lever handle. It has a 1-1/2 inch nominal size and a socket weld connection. Suitable for gas and water media with a pressure rating of 150 psig, 1500 psig.

• Three-piece construction with enclosed fasteners
• Stainless steel trim and hardware
• Swing-out center section

Product Highlights

This ball valve features a carbon steel body, stainless steel trim and hardware, and a swing-out center section for easy maintenance.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 83A-247-01
• Country of Origin: Domestic

Technical Specifications

• Actuator Type: Lever
• Ball Material: 316 Stainless Steel
• Body Material: Carbon Steel
• Configuration: Standard
• Connection Type: Socket Weld
• Domestic/Import: Domestic
• Flow Coefficient (Cv): 170 Cv
• Handle Material: Stainless Steel
• Inlet to Outlet Length: 4.98 in
• Material Standard: ASTM A276, ASTM A216
• Media: Gas, Water
• Nominal Size: 1-1/2 in
• Number of Positions: 2
• Orifice Size: 1-1/2 in
• Packing Material: PTFE
• Port Type: Full
• Pressure Rating: 1500 psi CWP
• Series: 83A-240 Series
• Softgoods Material: RPTFE
• Stem Material: 316 Stainless Steel
• Top to Inlet Center: 4.7 in
• Trim Material: Stainless Steel
• MPN: 83A24701
• Manufacturer Part Number: 83A24701
• UPC / GTIN: 670750088483
• Manufacturer: Conbraco
• Valve Type: Ball Valve
• End Style: Socket Weld
• Type: 3-Piece
