Conbraco 77-147-01 1-1/2 Brz Fp Ball Valve

Product Description

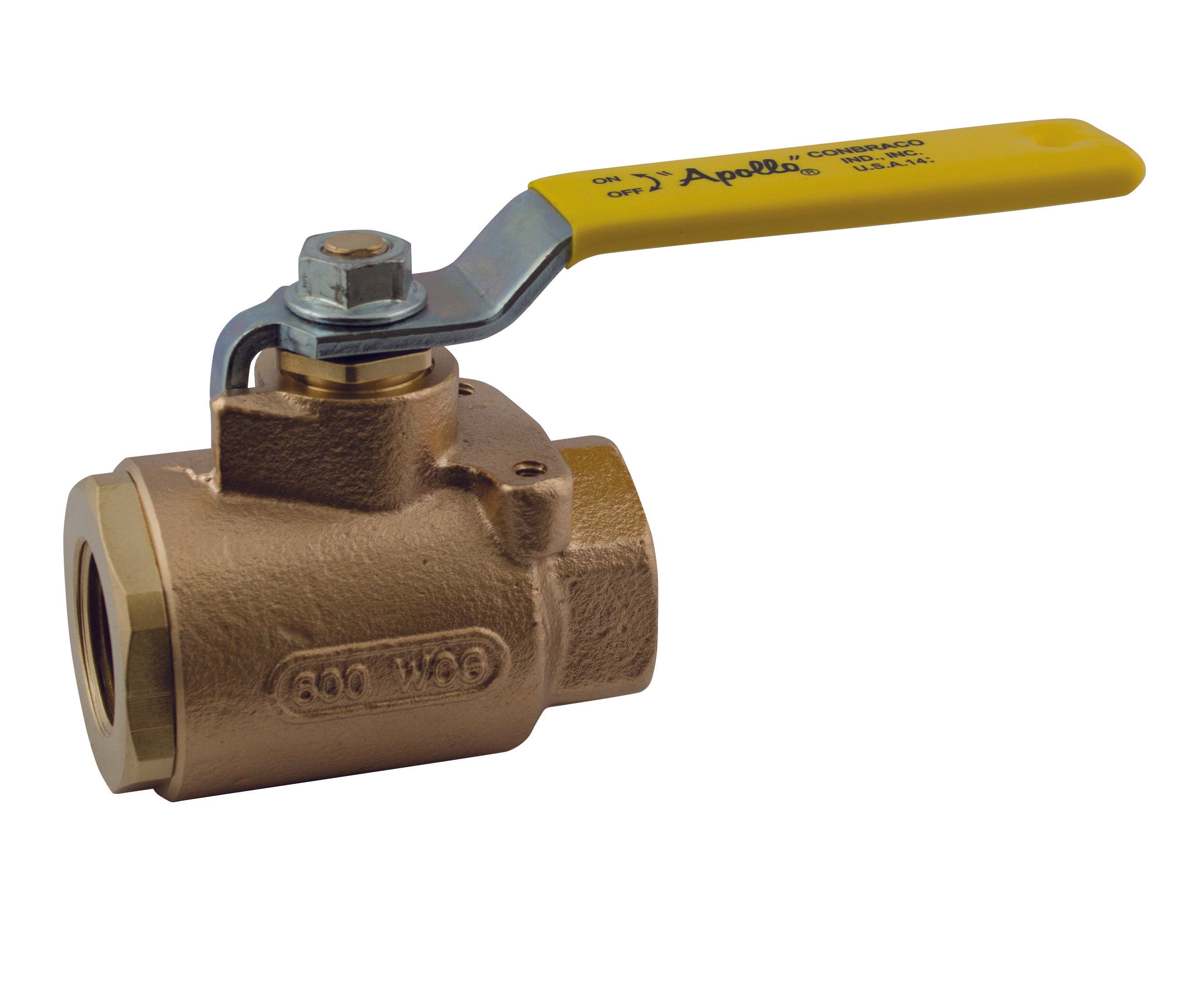

The CONBRACO 77-147-01 is a 2-Piece Full-Port Standard Ball Valve, part of the Series 77-140. It features a 1-1/2 IN nominal size and FNPT connection type. Designed with a bronze body and a steel lever handle with vinyl grip, this valve is suitable for applications requiring a reliable shutoff. The valve is rated to 600 PSI (CWP) and 150 PSI (SWP).

• 2-Piece Full-Port Standard Ball Valve
• FNPT Connection
• Bronze Body Material

Product Highlights

Full port ball valve with bronze body, stainless steel stem and trim, and FNPT connection.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 77-147-01
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 77-140
• Nominal Size: 1-1/2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: Up To 500 DEG F
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: MPTFE
• Seat Material: RPTFE
• Seal Material: RPTFE
• Body Material Standard: ASTM B584
• Body Material Specification: UNS C84400
• Handle Finish/Color: Zinc Plated
• Industry Standards: MSS-SP-110 Compliant, WW-V-35C Federal Specification, CRN: OC10908.5C
• Width: 4-3/4 IN
• Lead Free: No
• Flow Co-Efficient (Cv): 177
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: 316 Stainless Steel
• Mounting Type: Inline Threaded
• Porting Style: Full Port
• Flow Direction: 2-Way
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Stem Seal Material: MPTFE
• Valve Body Material: Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Actuator Type: Lever
• Configuration: Standard
• Domestic/Import: Domestic
• Material Standard: ASTM B584-C84400, ASTM B16
• Media: Gas, Water
• Port Type: Full
• End Style: Threaded
• Type: Ball Valve
• Option: Full Port
• Manufacturer: Aalberts Integrated Piping Systems
• Category: Ball Valves
• Softgoods Material: PTFE/RPTFE
