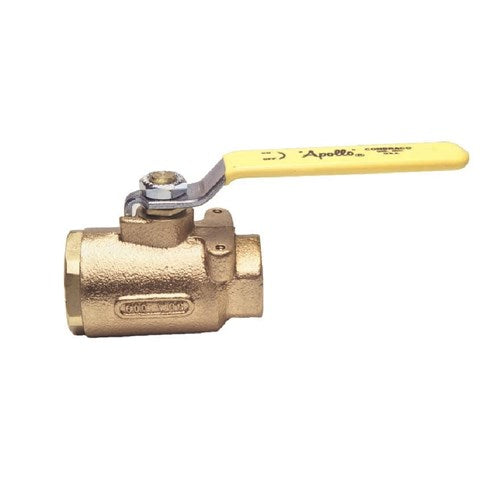

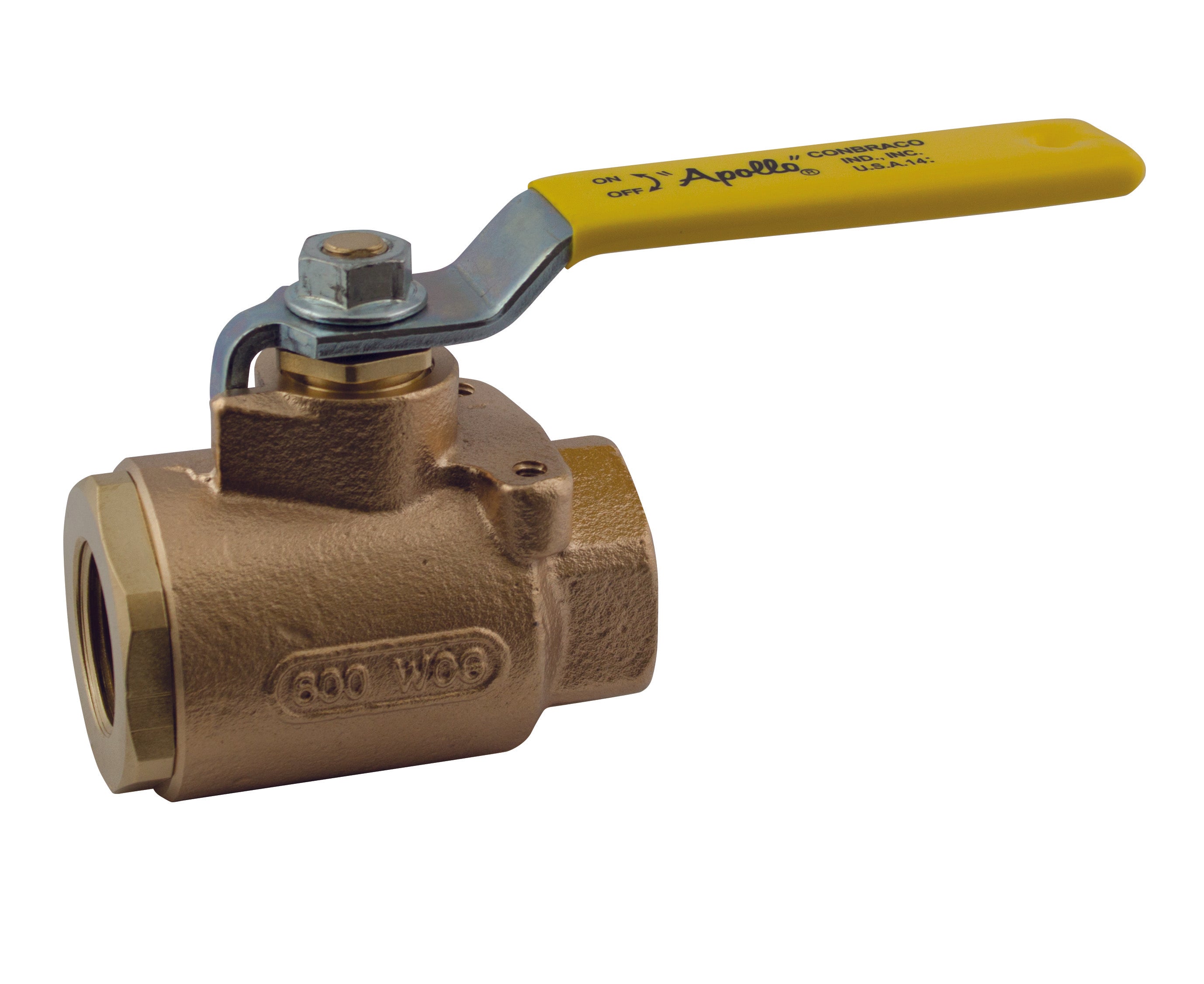

Conbraco 77-144-01 Ball Valve 3/4 IN

Product Description

The CONBRACO 77-144-01 is a 2-piece full-port standard ball valve with a 3/4 IN nominal size and FNPT connection. It features a bronze body, a lever handle operator, and a 316 stainless steel stem. Designed for easy actuator mounting where high flow coefficients are desired.

• FNPT Connection
• Lever Handle Operator
• 316 Stainless Steel Stem

Product Highlights

Full port ball valve with bronze body and stainless steel components, suitable for applications requiring reliable shutoff and flow control.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 77-144-01
• Country of Origin: USA

Technical Specifications

• Series/Model: Series 77-140
• Nominal Size: 3/4 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: Up To 500 DEG F
• Opening: 0.81 IN
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Steel With Vinyl Grip
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Packing Material: RPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard Body: ASTM B584
• Material Specification Body: UNS C84400
• Finish/Color: Zinc Plated Handle
• Industry Standards: MSS-SP-110 Compliant, WW-V-35C Federal Specification
• CRN: OC10908.5C
• Width: 3.12 IN
• Lead Free: No
• Other Physical Dimension: 2.12 IN Inlet Center To Top Of Handle, 4.87 IN Handle Length
• Flow Co-Efficient (Cv): 51
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: 316 Stainless Steel
• Mounting Type: Inline Threaded
• Porting Style: Full Port
• Flow Direction: 2-Way
• Overall Length: 3.12 in
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Stem Seal Material: MPTFE
• Valve Body Material: Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• End Style: Threaded
• Type: Ball Valve
• Option: Full Port
• Manufacturer: Aalberts Integrated Piping Systems
• Category: Ball Valves
• Port Type: Full
• Softgoods Material: PTFE/RPTFE
• Actuator Type: Lever
• Inlet to Outlet Length: 3.12
• Top to Inlet Center: 2.12
• Domestic / Import: Domestic
