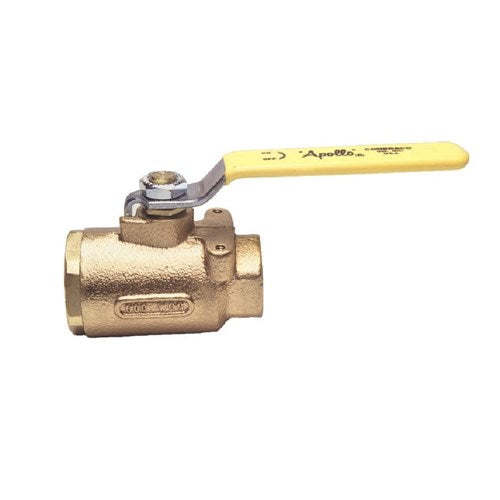

Conbraco 77-143-01 Ball Valve 1/2 IN

Product Description

The CONBRACO 77-143-01 is a full port, two-piece, bronze ball valve with a mounting pad. It features a lever handle, 316 stainless steel stem and trim, and RPTFE seats. Designed for easy actuator mounting, this valve controls fluid flow through pipes by opening, closing, or partially obstructing the passageway.

• Lever Handle Operator
• 316 Stainless Steel Stem and Trim
• Mounting pad for easy actuator mounting

Product Highlights

Full port ball valve with bronze body and stainless steel components. Ideal for fluid control with secure installation.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 77-143-01

Technical Specifications

• Nominal Size: 1/2 IN
• Connection Type: FNPT
• Pressure Rating: 600 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: Up To 500 DEG F
• Body Material: Bronze
• Operator Type: Lever Handle
• Handle Material: Zinc Plated Steel w/ Vinyl Grip
• Stem Material: Stainless Steel
• Trim Material: 316 Stainless Steel Stem and RPTFE Seat
• Packing Material: RPTFE Stem
• Seat Material: RPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM B584
• Material Specification (Body): UNS C84400
• Finish/Color: Zinc Plated Handle
• Industry Standards: MSS-SP-110 Compliant, WW-V-35C Federal Specification, CRN: OC10908.5C
• Lead Free: No
• Flow Co-Efficient (Cv): 15
• Standards: MSS SP-110 Compliant
• Body Style: 2 Piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: 316 Stainless Steel
• Mounting Type: Inline Threaded
• Porting Style: Full Port
• Flow Direction: 2-Way
• O-Ring Material: PTFE
• Connection Gender: Threaded
• Stem Seal Material: MPTFE
• Valve Body Material: Bronze
• Media Pressure Rating: Cold Water - 600 psi, Steam - 150 psi
• Maximum Operating Pressure: 600 psi
• Domestic / Import: Domestic
• End Style: FNPT
• Port Type: Full
• Softgoods Material: PTFE/RPTFE
• Actuator Type: Lever
• Manufacturer: Apollo Conbraco
• Manufacturer #: 77-143-01
• Type: 2-Piece
