Conbraco 76F-104-27A ball valve 3/4 in

Product Description

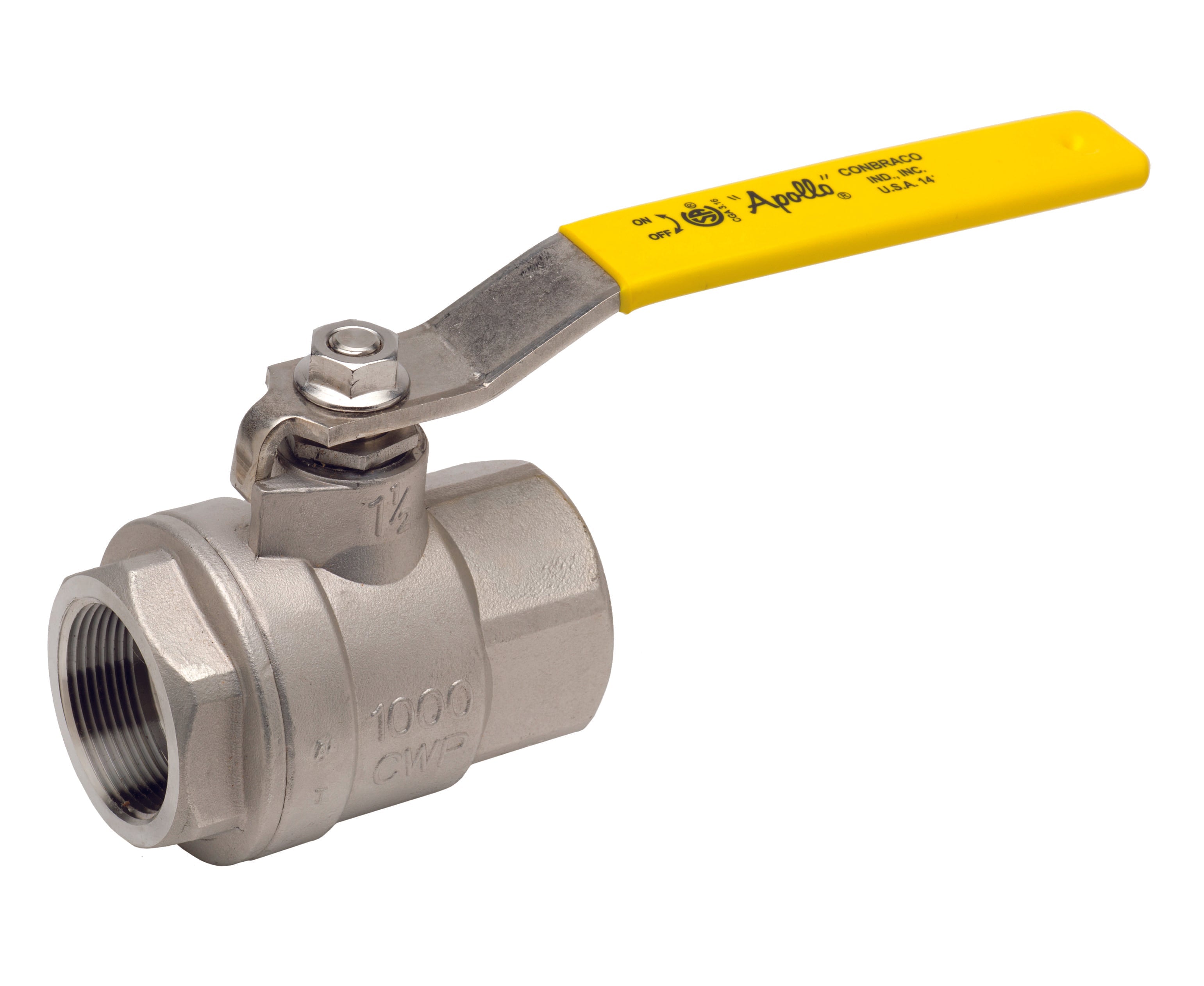

The CONBRACO 76F-104-27A is a full-port ball valve with a 3/4 inch nominal size and FNPT connection. Constructed with a stainless steel body, this valve is designed for durability and reliability. It features a latch-lock lever handle for secure operation and is suitable for use in various applications. It meets MSS-SP-110 standards and is fire-safe to API 607.

• Full-Port design
• Latch-Lock Lever Handle
• Stainless Steel body material

Product Highlights

This ball valve features a stainless steel body, latch-lock lever handle, and full-port design, making it suitable for a wide range of applications.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 76F-104-27A
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 76F-100-A
• Nominal Size: 3/4 IN
• Connection Type: FNPT
• Pressure Rating: 1000 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 500 DEG F
• Opening Size: 0.81 IN
• Body Material: Stainless Steel
• Handle Operator Type: Latch-Lock Lever Handle
• Handle Material: Stainless Steel
• Stem Material: Stainless Steel
• Trim Material: 316 Stainless Steel/RPTFE
• Packing Material: MPTFE
• Seat Material: RPTFE
• Seal Material: RPTFE
• Material Standard: Body: ASTM A351 Grade CF8M, Stem And Gland: ASTM A276, Ball: ASTM A276
• Industry Standards: MSS-SP-110 Compliant, Fire tested API 607, 6th Edition, Meets NACE MR0175 (2000) And MR0103 (2012), CSA/CAN 3.16-M88 (2009), NSF/ANSI 61 (2010) Section 8, Annex F And G, NSF-372, Drinking Water System Components - Lead Content
• Width: 2.77 IN
• Lead Free: Yes
• Inlet Center To Top Of Handle: 1.96 IN
• Handle Length: 3.85 IN
• Flow Co-Efficient (Cv): 51
• Operation: Lever handle
• Housing construction: 2-part
• Full bore: Yes
• Actuator Type: Latch Lock Lever Handle
• Ball Material: 316 Stainless Steel
• Domestic/Import: Domestic
• Port Type: Full
• Pressure: 1000 psig CWP
• Series: 76F-100-A
• Softgoods Material: MPTFE/RPTFE
• Top to Inlet Center: 1.96 in
• Type: 2-Piece
• End Style: Threaded
• Material: Stainless Steel
• Option: SS Locking Handle
• Manufacturer: Aalberts Integrated Piping Systems
• Category: Ball Valves
• Media: Gas, Water
• Orifice Size: 0.81 in
• Seat: RPTFE
• Stem: 316 Stainless Steel
