Conbraco 76F-104-01A Ss Fp Ball Valve 3/4 IN

Product Description

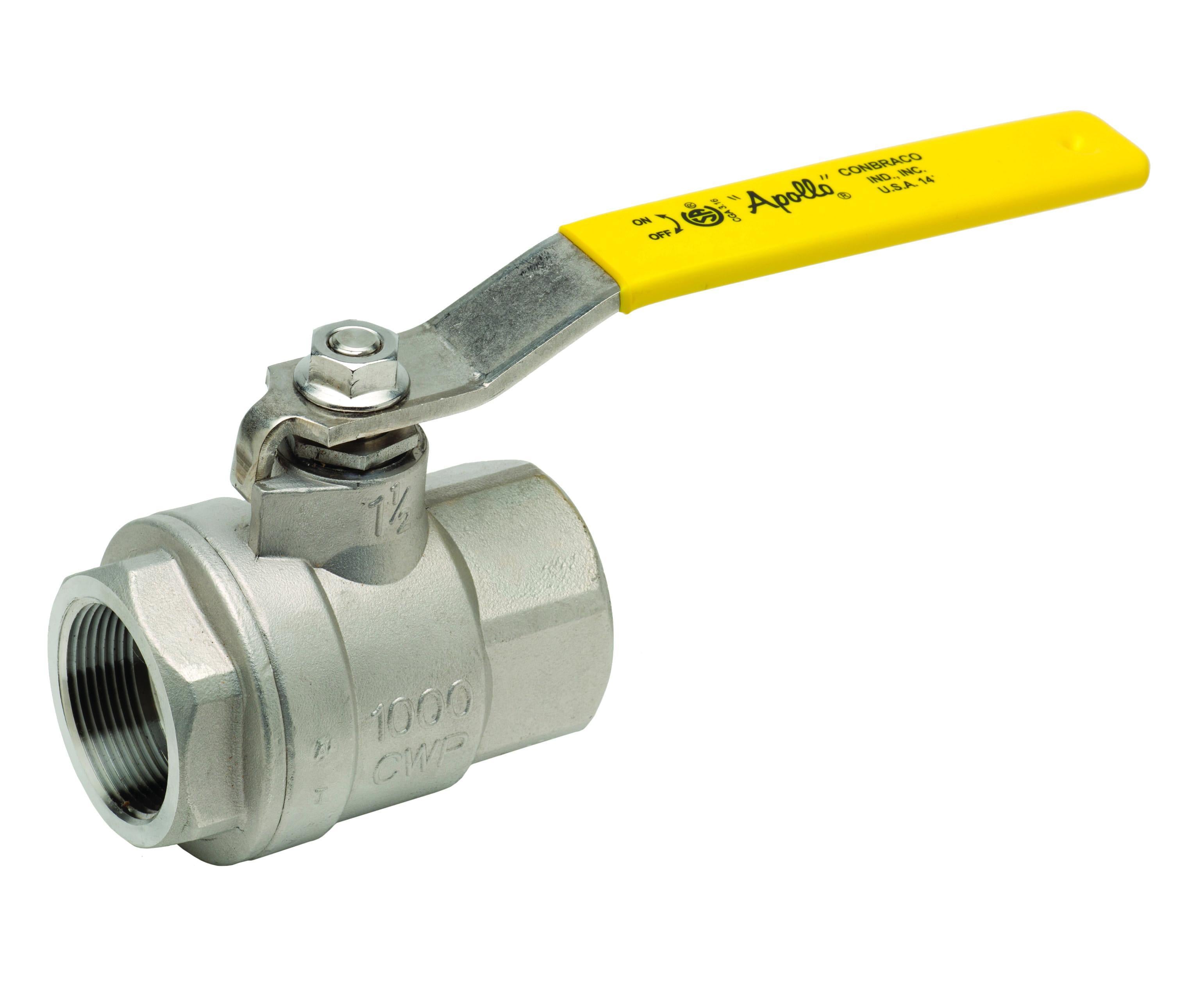

The CONBRACO 76F-104-01A is a full-port standard ball valve with a 3/4 IN nominal size and FNPT connection type. It features a stainless steel body and a lever handle operator. Designed for durability, it withstands a pressure rating of 1000 PSI (CWP) and 150 PSI (SWP), with a temperature rating of 0 - 500 DEG F.

• Full-Port
• Standard Ball Valve
• Lead Free

Product Highlights

This lead-free ball valve is MSS-SP-110 compliant and fire-tested to API 607, 6th Edition. It meets NACE MR0175 (2000) and MR0103 (2012) standards.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 76F-104-01A
• Country of Origin: United States

Technical Specifications

• Series/Model: Series 76F-100-A
• Nominal Size: 3/4 IN
• Connection Type: FNPT
• Pressure Rating: 1000 PSI (CWP), 150 PSI (SWP)
• Temperature Rating: 0 - 500 DEG F
• Opening: 0.81 IN
• Body Material: Stainless Steel
• Operator Type: Lever Handle
• Handle Material: Stainless Steel With Vinyl Grip
• Stem Material: A276-316 Stainless Steel
• Trim Material: 316 Stainless Steel Ball
• Packing Material: RPTFE Stem, 316 Stainless Steel Gland
• Seat Material: RPTFE
• Seal Material: RPTFE
• Body Material Standard: ASTM A351 Grade CF8M
• Stem And Gland Material Standard: ASTM A276
• Ball Material Standard: ASTM A276
• Industry Standards: MSS-SP-110 Compliant, Fire tested API 607, 6th Edition, Meets NACE MR0175 (2000) And MR0103 (2012), CSA/CAN 3.16-M88 (2009), NSF/ANSI 61 (2010) Section 8, Annex F And G, NSF-372, Drinking Water System Components - Lead Content
• Width: 2.77 IN
• Lead Free: Yes
• Inlet Center To Top Of Handle: 1.96 IN
• Handle Length: 3.85 IN
• Flow Co-Efficient (Cv): 51
• Series: 76F-100
• Port Size: 3/4 NPT
• Body Style: 2 piece
• Control Type: Manually Operated
• Handle Style: Lever Handle
• Ball Material: A276-316SS Stainless Stainless
• Mounting Type: Inline Threaded
• Porting Style: Full Port
• Flow Direction: 2-Way
• Overall Length: 2.77 in
• O-Ring Material: RPTFE
• Connection Gender: Threaded
• Stem Seal Material: MPTFE
• Valve Body Material: CF8M Stainless Steel
• Media Pressure Rating: Steam - 150 psi, Cold Water - 1000 psi
• Maximum Operating Pressure: 1000 psi
• Bore (Full bore): 20.57 mm (Yes)
• Housing material: Stainless steel
• Material ball: Stainless steel
• Material spindle: Stainless steel
• Material primary spindle seal: Polytetrafluoroethylene (PTFE)
• Nominal diameter connection 1: DN 20
• Outer pipe diameter connection 1: 26.67mm
• Outer pipe diameter connection 1 (imperial): 1.05"
• Connection 1: Internal thread conical (NPT)
• Nominal diameter connection 2: DN 20
• Outer pipe diameter connection 2: 26.67mm
• Outer pipe diameter connection 2 (imperial): 1.05"
• Connection 2: Internal thread conical (NPT)
• Housing construction: 2-part
• Full bore: Yes
• Length of connection 1: 35.31mm
• Length of connection 1 (imperial): 1.39"
• Working length connection 1: 19.81mm
• Working length connection 1 (imperial): 0.78"
• Length of connection 2: 35.31mm
• Length of connection 2 (imperial): 1.39"
• Working length connection 2: 19.81mm
• Working length connection 2 (imperial): 0.78"
• Handle height: 16.51mm
• Handle height (imperial): 0.65"
• Handgrip length: 13.97mm
• Handgrip length (imperial): 0.55"
• Standards: MSS SP-110 Compliant
