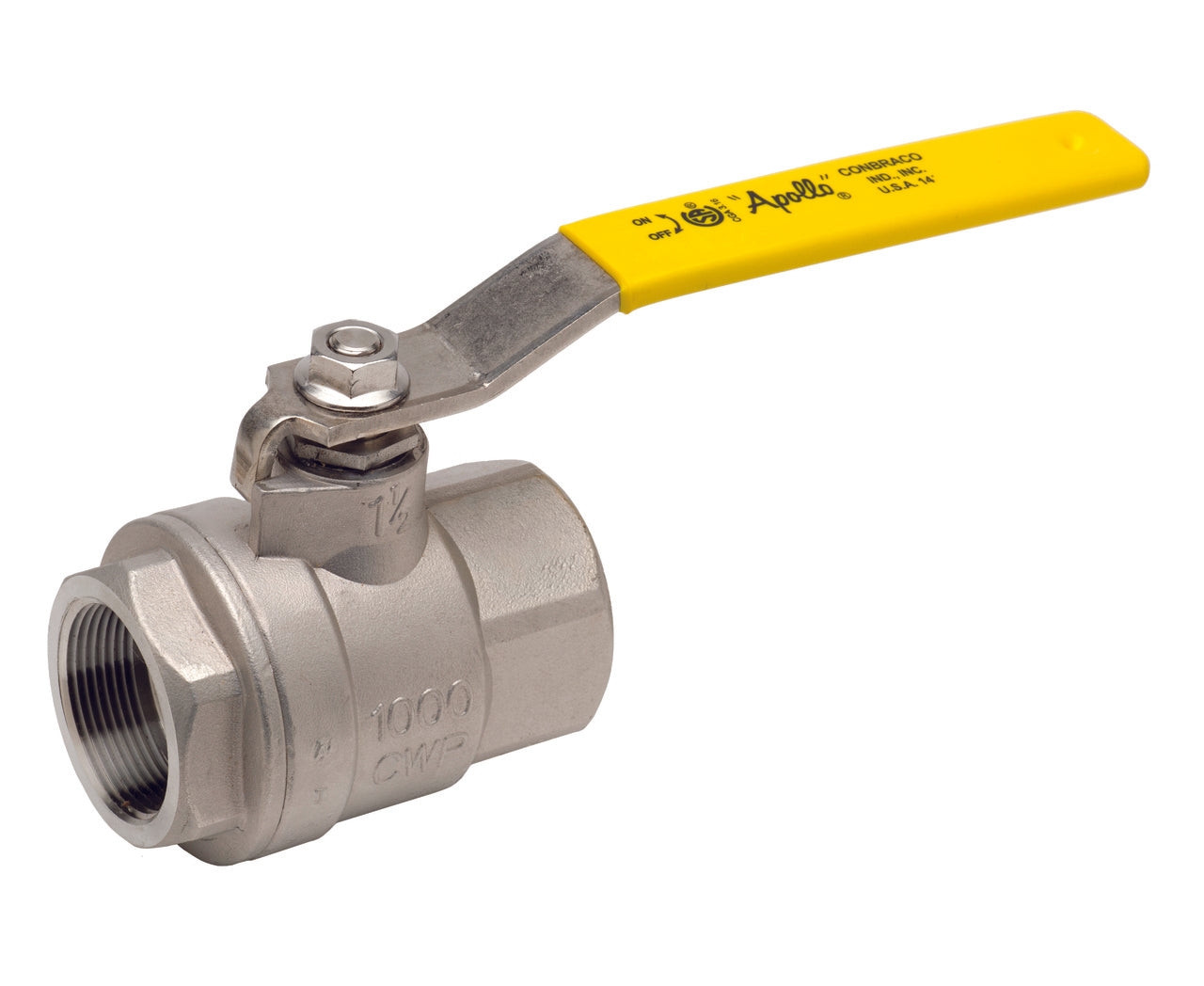

Conbraco 76F-101-01 1/4 SS FP Ball Valve

Brand: CONBRACO
SKU: 76F-101-01
Availability: In Stock

Ships same day if ordered by 12 pm
$60.61
$60.61
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The CONBRACO 76F-101-01 is a full-port standard ball valve with a 1/4 inch nominal size and FNPT connection type. It features a stainless steel body and a lever handle operator. Suitable for various media, this valve is designed for durability and efficient flow control. It meets MSS-SP-110 standards and is fire-tested to API 607, 6th Edition.

  • Full-Port
  • Standard Ball Valve
  • Stainless Steel Body
  • Lever Handle

Product Highlights

This full-port ball valve features a stainless steel body, lever handle, and FNPT connection, ensuring reliable performance and compliance with industry standards.

Product Information

Standard Information

  • Brand: CONBRACO
  • Manufacturer Part Number: 76F-101-01
  • Country of Origin: United States
Technical Specifications
Series/Model
Series 76F-100
Nominal Size
1/4 IN
Connection Type
FNPT
Pressure Rating
1000 PSI (CWP), 150 PSI (SWP)
Temperature Rating
0 - 500 DEG F
Opening
0.37 IN
Body Material
Stainless Steel
Operator Type
Lever Handle
Handle Material
Stainless Steel With Vinyl Grip
Stem Material
Stainless Steel
Trim Material
316 Stainless Steel Stem and PTFE Seat
Packing Material
RPTFE Stem, 316 Stainless Steel Gland
Seat Material
RPTFE
Seal Material
RPTFE
Material Standard (Body)
ASTM A351 Grade CF8M
Stem And Gland Material Standard
ASTM A276
Ball Material Standard
ASTM A276
Industry Standards
MSS-SP-110 Compliant, Fire tested API 607, 6th Edition, Meets NACE MR0175 (2000) And MR0103 (2012), CSA/CAN 3.16-M88 (2009), NSF/ANSI 61 (2010) Section 8, Annex F And G, NSF-372, Drinking Water System Components - Lead Content
Width
1.91 IN
Lead Free
Yes
Other Physical Dimension
1.6 IN Inlet Center To Top Of Handle, 3.85 IN Handle Length
Flow Co-Efficient (Cv)
8.1
Bore (Full bore)
9.4 mm (Yes)
Nominal diameter connection 1
DN 8
Outer pipe diameter connection 1
13.72mm
Outer pipe diameter connection 1 (imperial)
0.54"
Connection 1
Internal thread conical (NPT)
Nominal diameter connection 2
DN 8
Outer pipe diameter connection 2
13.72mm
Outer pipe diameter connection 2 (imperial)
0.54"
Connection 2
Internal thread conical (NPT)
Housing construction
2-part
Full bore
Yes
End Style
Threaded
Type
Ball Valve
Series
76F-100-A
Option
SS Lever & Nut
Manufacturer
Apollo Conbraco
Actuator Type
Lever
Ball Material
316 Stainless Steel
Inlet to Outlet Length
1.91
Manufacturer #
76F-101-01
Media
Water
Top to Inlet Center
1.6
Softgoods Material
MPTFE
