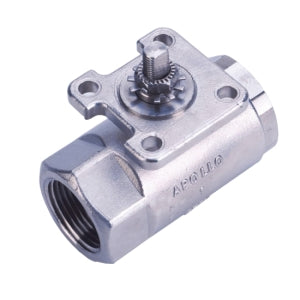

Conbraco 76-AR6-64 Ball Valve 1-1/4 in

Product Description

The CONBRACO 76-AR6-64 is a 2-piece ball valve with a stainless steel body. It features a standard port, FNPT connection, and a 1-1/4 inch nominal size. Designed with a multi-piece packing set and ISO 5211 mounting pad, this valve is suitable for gas and water media with a pressure rating of 1500 psig CWP.

• Features a multi-piece packing set
• Includes an ISO 5211 mounting pad
• Designed with a blow-out proof stem

Product Highlights

This ball valve offers reliable performance with its adjustable packing gland and live loaded packing design.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 76-AR6-64

Technical Specifications

• Body Material: Stainless Steel
• End Style: FNPT
• Nominal Size: 1-1/4 in
• Port Type: Standard
• Softgoods Material: PTFE/MPTFE
• Ball Material: Stainless Steel
• Inlet to Outlet Length: 4 in
• Series: 76-AR
• Top to Inlet Center: 2.92
• Trim Material: 316 Stainless Steel Stem and PTFE Seat
• Type: 2-Piece
• Media: Gas, Water
• Orifice Size: 1 in
• Pressure Rating: 250 psig, 1500 psig
• Seal Material: PTFE
• Seat Material: MPTFE
• Stem Material: 316 Stainless Steel
• Flow Coefficient (Cv): 48 Cv
• Material Standard: ASTM A276, ASTM A351-CF8M
• Packing Material: PEEK/PTFE Stem
• Lead-Free/Contains Lead: Lead-Free
• Temperature Rating: -50 To 500 DEG F
• Opening Size: 1 IN
• Gland Material: 316 Stainless Steel
• Industry Standards: MSS-SP-110 Compliant
• Width: 4 IN
• Other Physical Dimension: 2.98 IN Inlet Center To Top Of Handle
• Firesafe: No
