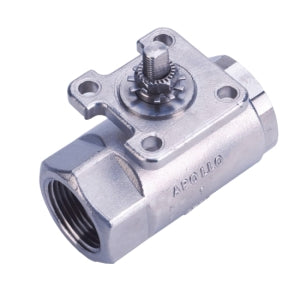

Conbraco 76-AR1-64 1/4 Ss Std Port Ball Valve

Product Description

The CONBRACO 76-AR1-64 is a standard port ball valve with a stainless steel body. It features a 1/4 IN nominal size and FNPT connection type. Designed for pressure ratings up to 2000 PSI (CWP) and 250 PSI (SWP), it can handle temperatures from -50 to 500 DEG F. The valve has a 0.37 IN opening and a flow coefficient (Cv) of 48.

• Standard Port
• Stainless Steel Body
• 316 Stainless Steel Stem

Product Highlights

This ball valve features a stainless steel body, 316 stainless steel stem, and MPTFE seat, suitable for various applications.

Product Information

Standard Information

• Brand: CONBRACO
• Manufacturer Part Number: 76-AR1-64

Technical Specifications

• Series/Model: Series 76-AR
• Nominal Size: 1/4 IN
• Connection Type: FNPT
• Pressure Rating: 2000 PSI (CWP), 250 PSI (SWP)
• Temperature Rating: -50 To 500 DEG F
• Opening: 0.37 IN
• Body Material: Stainless Steel
• Stem Material: 316 Stainless Steel
• Trim Material: 316 Stainless Steel Stem and PTFE Seat
• Packing Material: PEEK/PTFE Stem, 316 Stainless Steel Gland
• Seat Material: MPTFE
• Seal Material: PTFE
• Material Standard (Body): ASTM A351 Grade CF8M
• Material Standard (Stem And Gland): ASTM A276
• Industry Standards: MSS-SP-110 Compliant
• Width: 2.04 IN
• Lead Free: No
• Other Physical Dimension: 1.4 IN Inlet Center To Top Of Handle
• Flow Co-Efficient (Cv): 48
• Domestic / Import: Domestic
• End Style: FNPT
• Port Type: Standard
• Softgoods Material: PTFE/MPTFE
• Ball Material: Stainless Steel
• Inlet to Outlet Length: 2.04
• Manufacturer: Apollo Conbraco
• Manufacturer #: 76-AR1-64
• Series: 76-AR
• Top to Inlet Center: 1.4
• Type: 2-Piece
